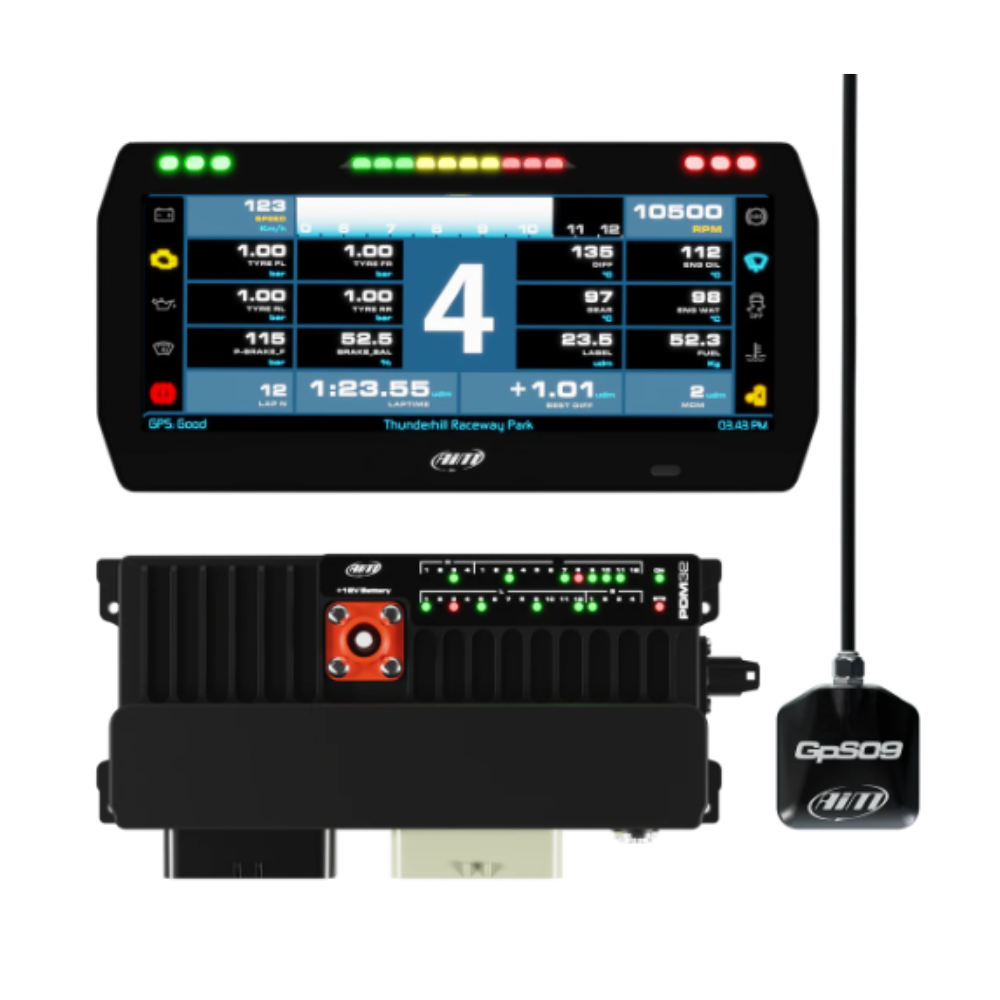

AIM PDM 32 data logger kit with 10" Race display

Equip your vehicle with the latest advances in data tracking with the AIM PDM 32 data logger kit, featuring a 10" display specifically designed for use in racing.

With 14 configurable inputs, including 8 analog and one 2-speed input, this system offers precise control over your vehicle's performance.

Variable power outputs, ranging from 4 to 20A for high power, up to 12 to 15A for low power, and up to 35A for half-bridge, enable you to meet your vehicle's specific requirements. With 3-way CAN connectivity and 4GB internal memory, you can capture and analyze essential data in real time.

Robust connectivity includes 2 AMP connectors, 2 Binder connectors, 1 Amphenol Surlok connector and 1 Rosenberger connector, ensuring optimum reliability even in the most demanding environments. With compact dimensions of 278x0135x26.2mm and IP65 sealing, this kit is designed to withstand the toughest conditions on the track.

What's more, with a screen resolution of 1280x480 pixels, you benefit from clear, detailed data visualization.

Available with standard 0.5, 1.3m, 2m and 4m cables, as well as 2m and 4m roof versions.

Features :

Inputs :

14 fully configurable, max. 500 Hz each :

8 analog/digital

4 digital inputs

2-speed input

Power outputs :

4 up to 20 A (high power)

12 up to 15 A (low power)

12 up to 10 A (low bridge)

4 up to 35 A (half-bridge)

Protection: overvoltage, undervoltage, overcurrent, overtemperature

Maximum total current: 120 A

LEDs: 32 RGB LEDs + 1 PDM ON + 1 PDM STS (Status)

Lin bus: 1

CAN connections: 3

Internal platform: 3-axis accelerometer ±5G + 3-axis gyroscope + 3-axis magnetometer

Remote display connection: 1 AiM stream output

Connectors: 2 AMP connectors + 2 Binder connectors + 1 Amphenol Surlok connector + 1 Rosenberger connector

Internal memory: 4 GB

External modules: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, Formula Handwheel, Remote I/O Pushbutton Module

External analog camera input: 2

Body: Anodized aluminum

Waterproofing: IP65

Dimensions: 234.5 x 94.6 x 49.5 mm 234.5 x 94.6 x 49.5 mm

Weight: 761g

PDM Dash 10" TFT Display :

Display: 10" TFT

Resolution: 1280 x 480 pixels

Contrast: 1,100:1

Brightness: 800cd/m2

Ambient light sensor : Yes

Display status LEDs: 6

Speed change indicator lights: 10

Body: Anodized aluminum

Push buttons: Metal

Connectors: LVDS Link 4 pins Rosenberger male connector

Dimensions: 278.0 x 135.0 x 26.2 mm : 278.0 x 135.0 x 26.2 mm

Weight : 1000 g

Power consumption: 250 mA

Water resistance: IP65

GPS module :

5-pin Binder connection

Dimensions: 64.8 x 53.2 x 19.7 mm 64.8 x 53.2 x 19.7 mm

Weight: 60.5 g
