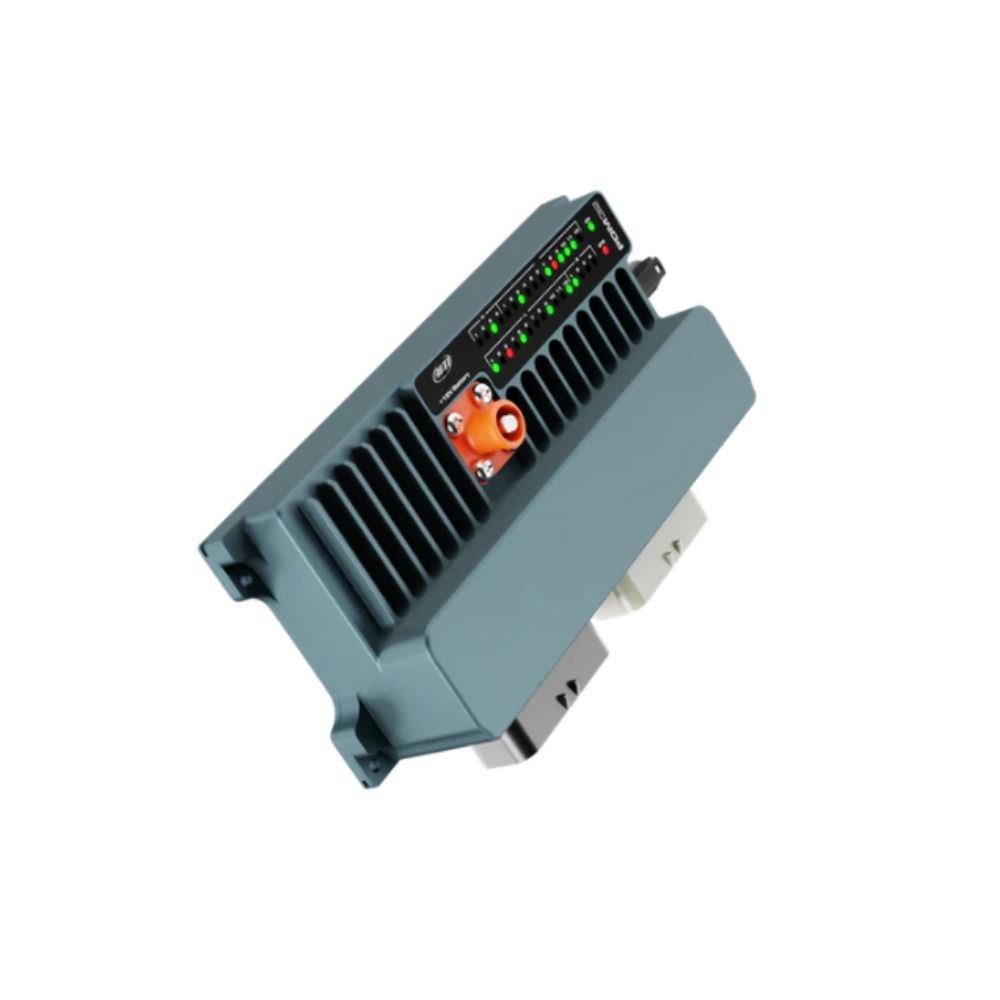

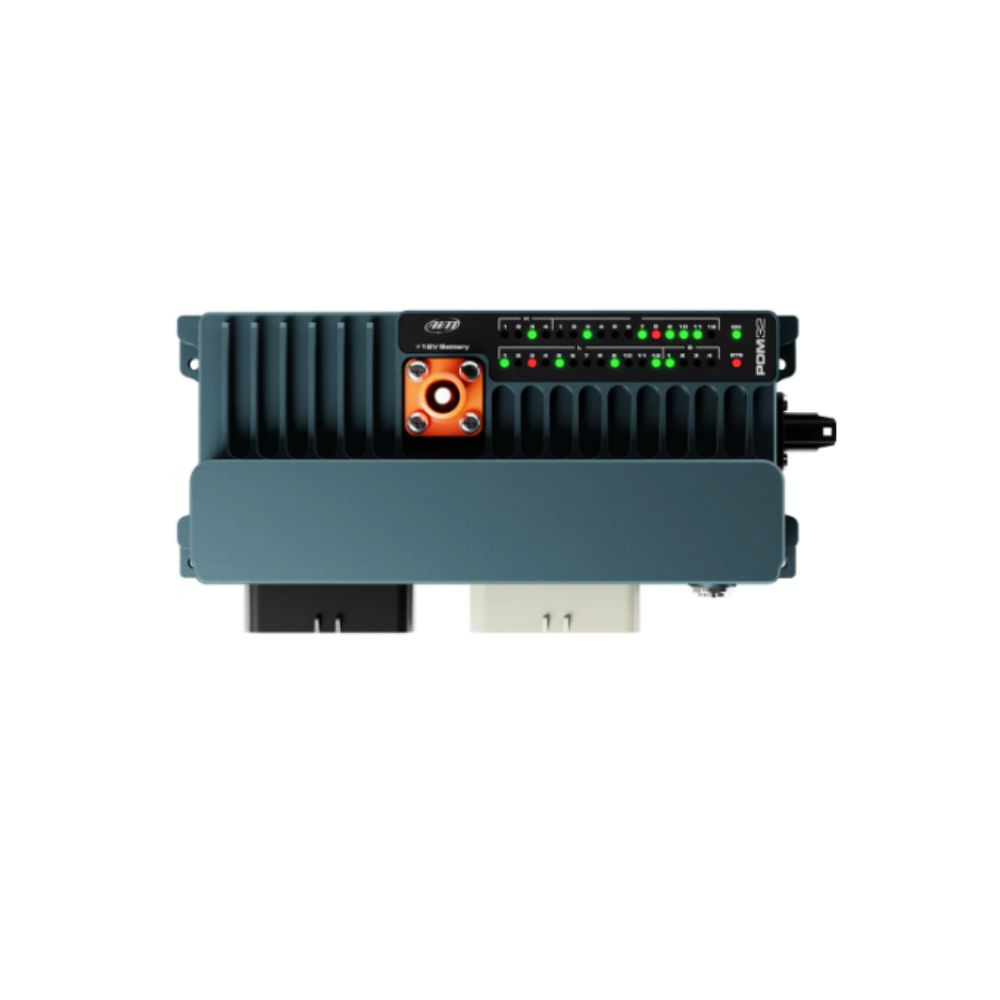

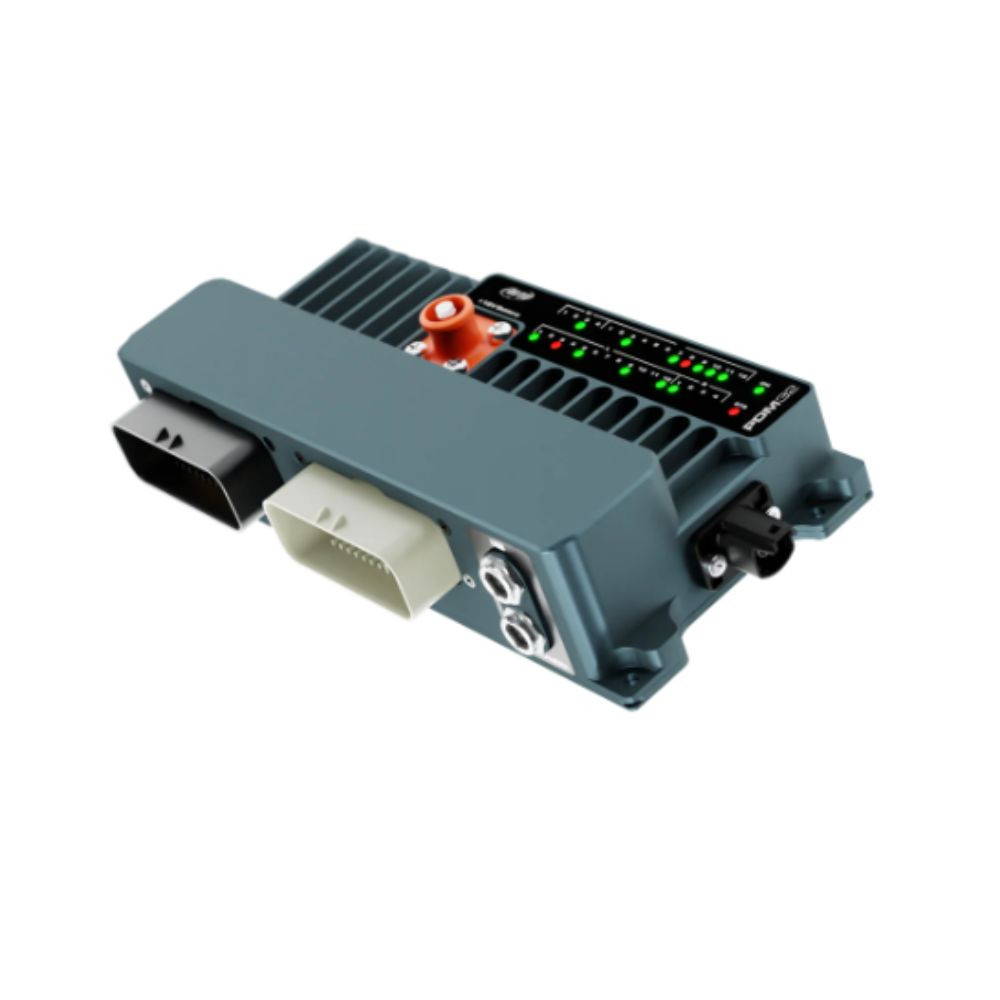

Optimize your vehicle's electrical management with the PDM 32 AIM module. This advanced power distribution module offers an efficient solution for controlling and powering various electrical circuits on your race or performance car.
With 32 configurable output channels, the PDM 32 enables precise power distribution to a variety of components such as motors, lights, fans and more.
With advanced features such as real-time monitoring, customizable alarms and built-in diagnostics, the PDM 32 module offers total control over your electrical system. Its user-friendly interface and compatibility with data management systems make it easy to monitor and manage your vehicle's performance.
Features :
- Inputs :
- 14 fully configurable, max. 500 Hz each :
- 8 analog/digital
- 4 digital inputs
- 2-speed input
- Power outputs :
- 4 up to 20 A (high power)
- 12 up to 15 A (low power)
- 12 up to 10 A (low bridge)
- 4 up to 35 A (half-bridge)
- Protection: overvoltage, undervoltage, overcurrent, overtemperature
- Maximum total current: 120 A
- LEDs: 32 RGB LEDs + 1 PDM ON + 1 PDM STS (Status)
- Lin bus: 1
- CAN connections: 3
- Internal platform: 3-axis accelerometer ±5G + 3-axis gyroscope + 3-axis magnetometer
- Remote display connection: 1 AiM stream output

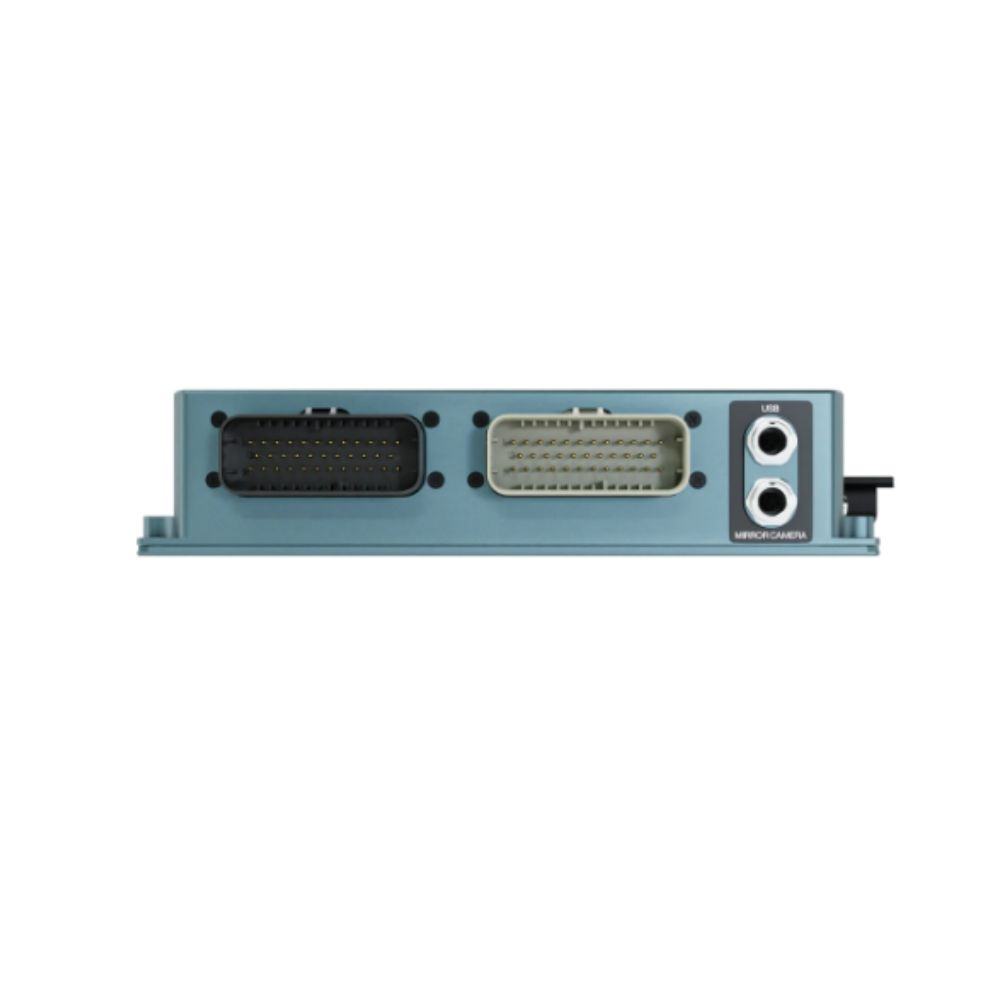

- Connectors: 2 AMP connectors + 2 Binder connectors + 1 Amphenol Surlok connector + 1 Rosenberger connector
- Internal memory: 4 GB
- External modules: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, Formula Handwheel, Remote I/O Pushbutton Module
- External analog camera input: 2
- Body: Anodized aluminum
- Waterproofing: IP65
- Dimensions: 234.5 x 94.6 x 49.5 mm 234.5 x 94.6 x 49.5 mm
- Weight: 761g
