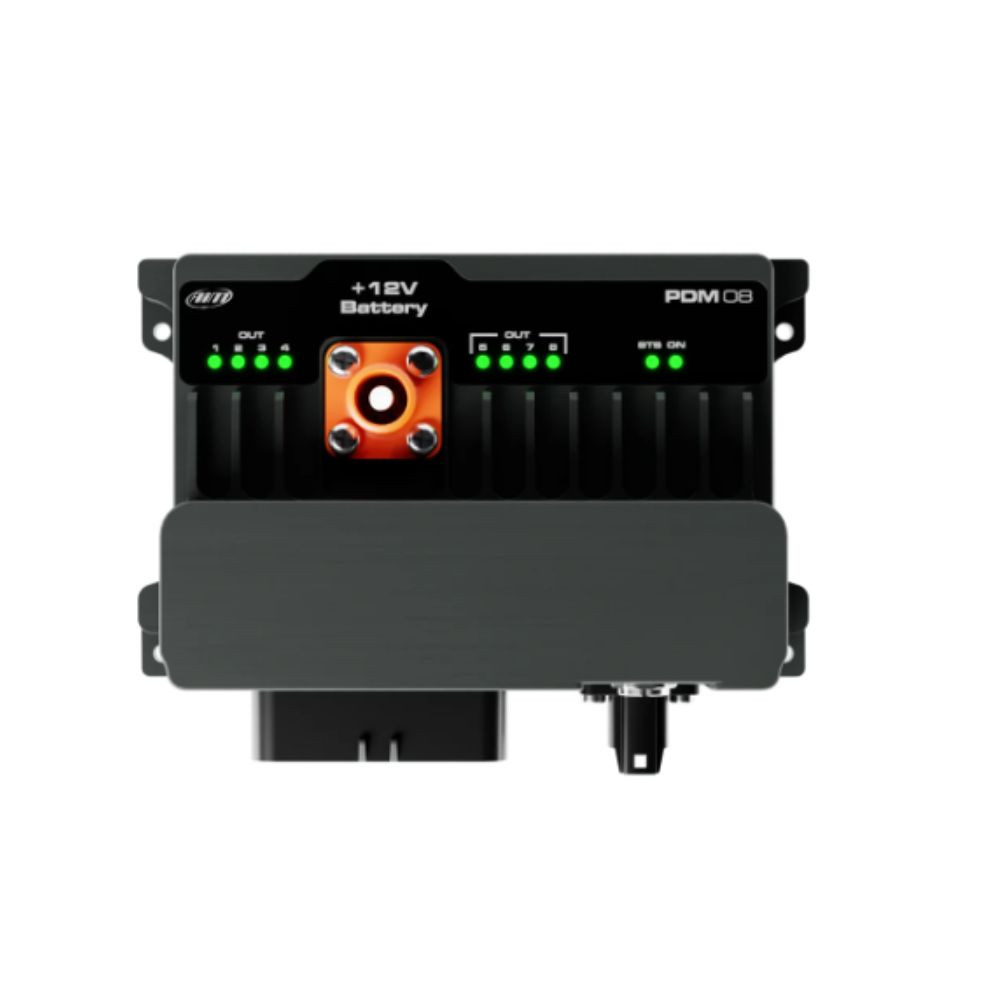

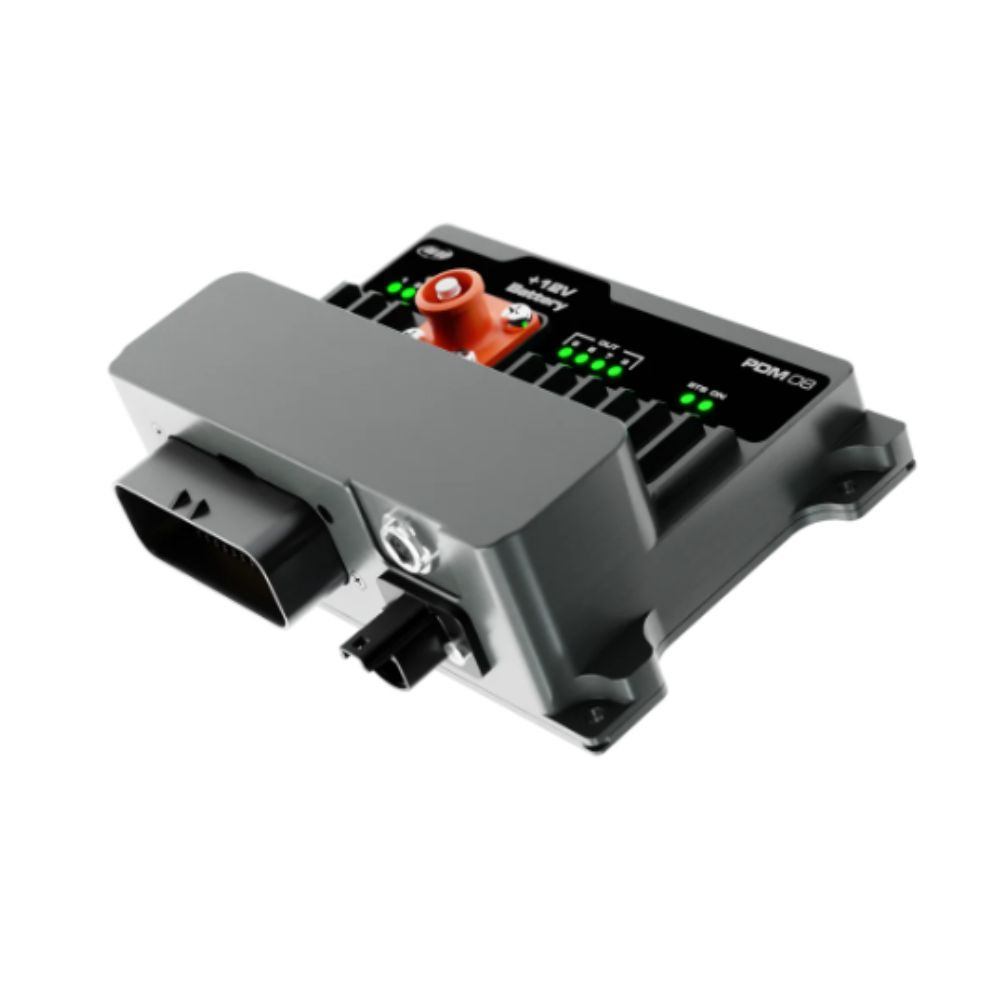

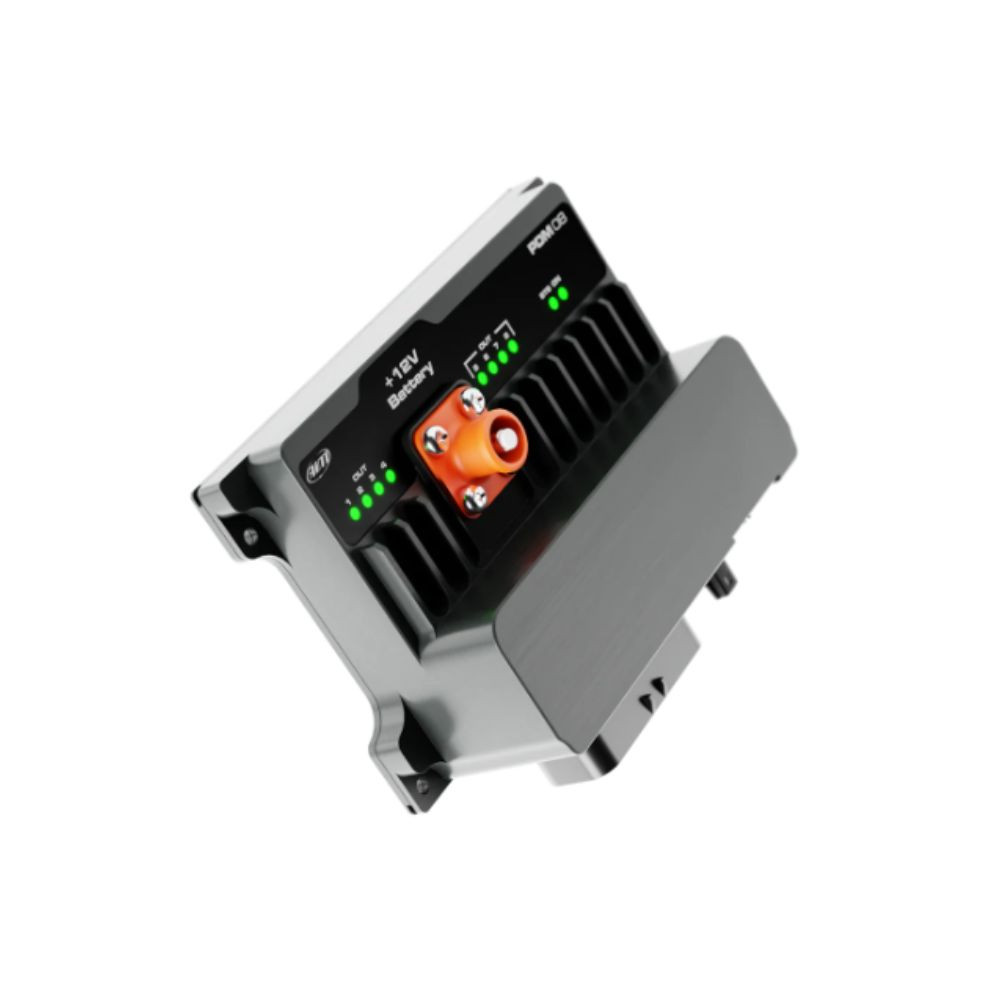

The PDM 8 AIM module is specially designed to provide advanced, efficient electrical management for your vehicle. Easily replacing conventional fuse and relay systems, this module precisely distributes power to multiple circuits in your car.
Featuring two-speed inputs and power outputs, the PDM 8 offers maximum flexibility in controlling your vehicle's essential electrical components.
Its 6 analog digital inputs enable precise monitoring of key parameters, while the 8 RGB LEDs provide clear visual indications of system status.
Features :
- LEDs: 8 RGB LEDs + 1 PDM ON + 1 PDM STS (status)
- Inputs:
- Six fully configurable inputs, max. 500 Hz each
- Pull-up + 12V, + 5V, analog/digital
- Pull-up + 12V, + 5V, analog/digital Pulldown
- Speed inputs: 2
- Power outputs :
- 1 with series diode up to 20 A
- 1 with standard diode up to 25 A
- 6 up to 15 A
- Protected against :
- overvoltage, undervoltage, overcurrent, overtemperature
- All inputs have an internal rouelibre diode.
- Maximum total current: 100 A
- Lin bus: 1
- CAN connections: 3
- Internal platform: 3-axis accelerometer ±5G + 3-axis gyroscope + 3-axis magnetometer
- Internal memory: 4 GB
- External modules: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, Formula Handwheel, Remote I/O Pushbutton Module
- External analog camera input: NO

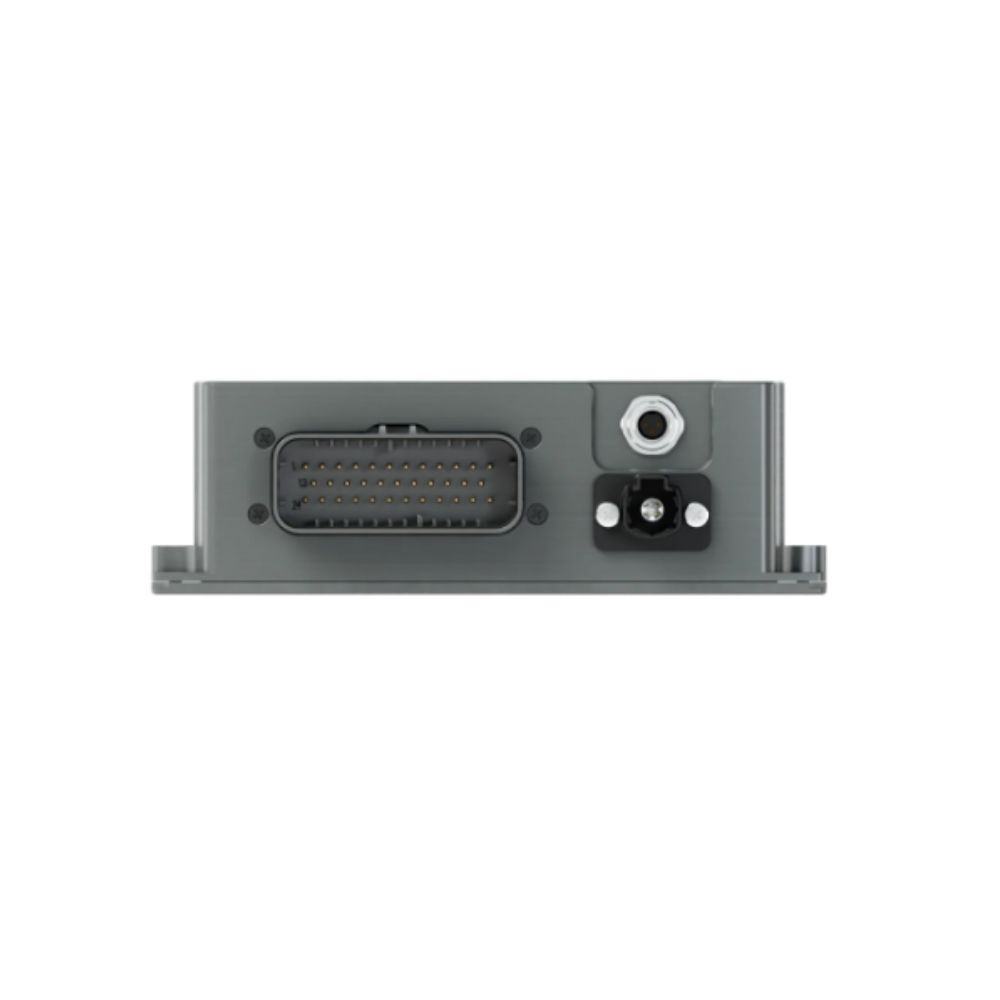

- Connectors: 1 AMP connector + 1 Amphenol Surlok connector + 1 Rosenberger connector
- Remote display connection: 1 AiM stream output
- Body: Anodized aluminum
- Dimensions: 161 x 100.6 x 50.6 mm 161 x 100.6 x 50.6 mm
- Weight: 500 g
- Water resistance: IP65
