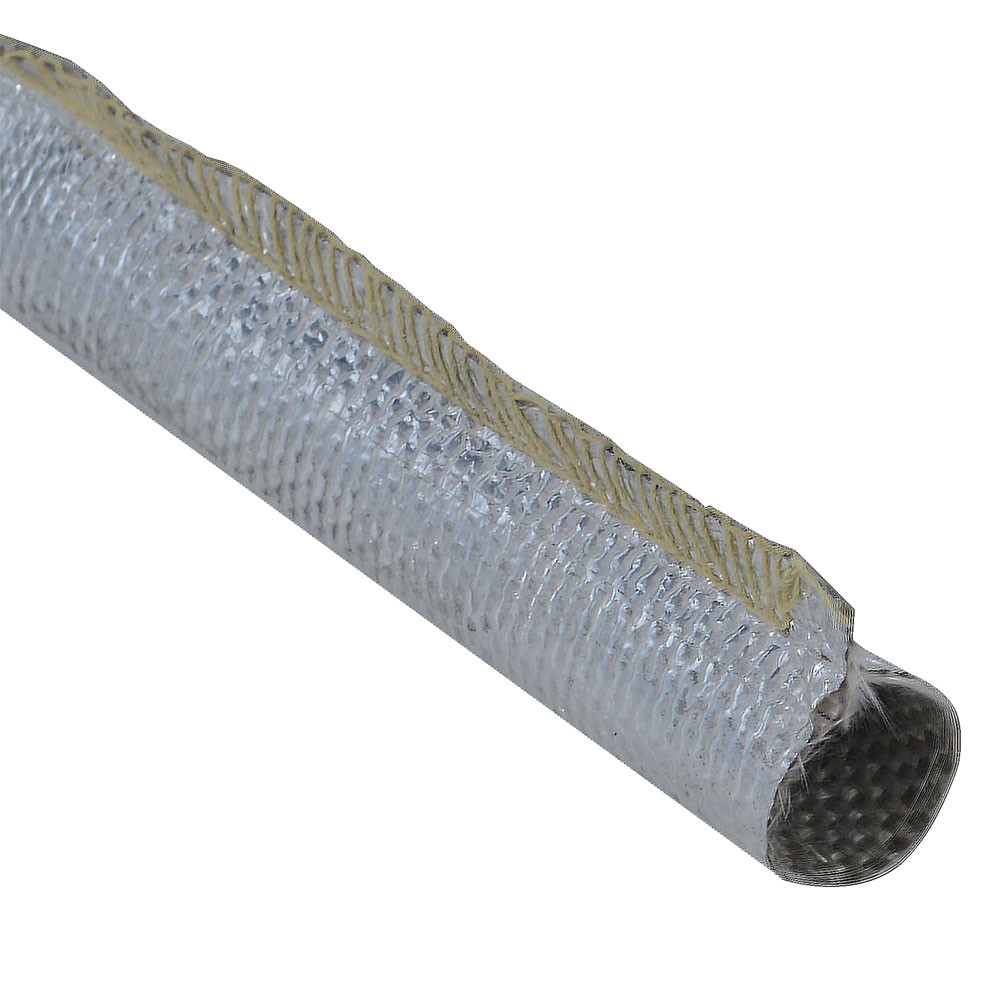

BG aluminum fiberglass heat shield sleeve dimensions 100mmx1m
Reference:
BG-5325
Supplier Ref.:
BG5325

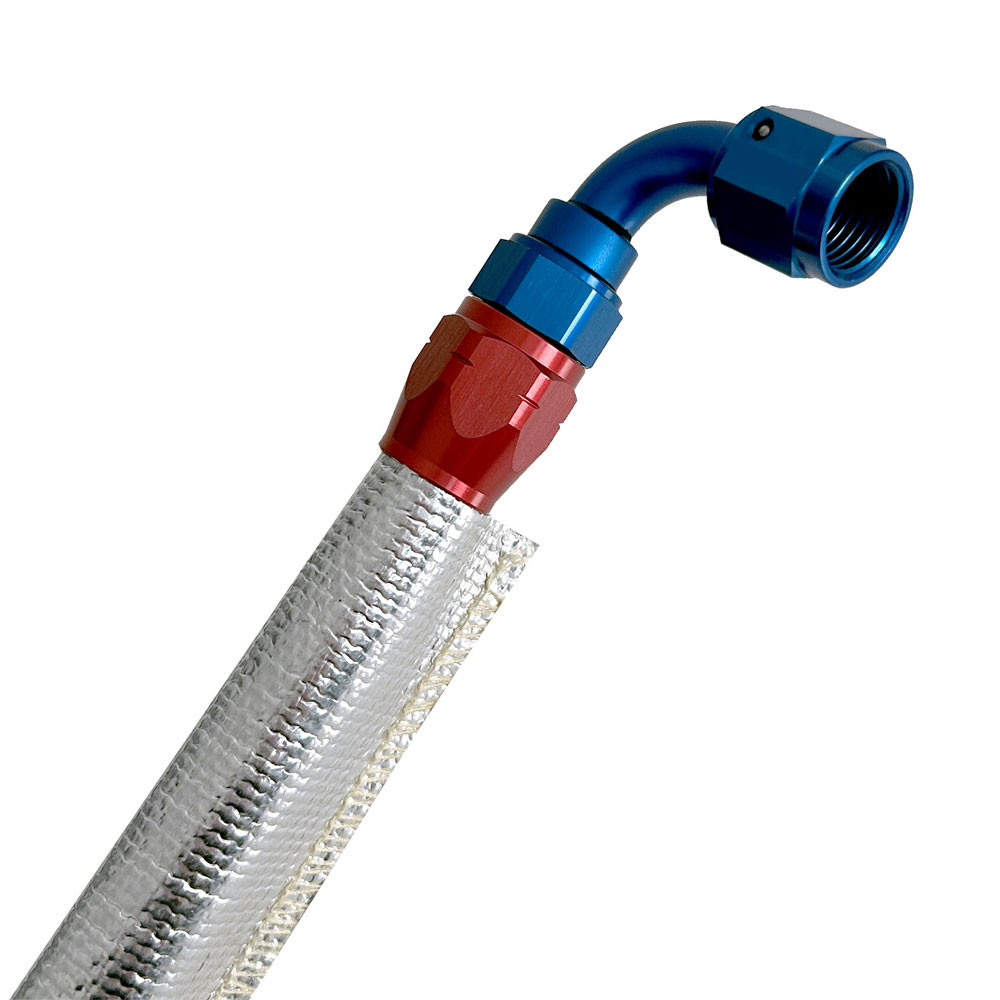

BG's Ø110mmx1mm aluminum fiberglass heat shield can effectively protect fuel lines, oil lines and cable harnesses from exposure to continuous, radiant heat. It is ideal for effective heat management in a variety of locations, including engine bays, cockpits...
The reflective aluminum outer skin and fiberglass coating are sewn together with Kevlar seams, meaning they can withstand continuous heat of 590°C and direct heat of 260°C.
Other diameters also available: 15mm (BG-5322), 30mm (BG-5323), 50mm (BG-5324)
Technical specifications:
Length: 1m
Internal diameter: 110mm (4.33")
Radiant heat resistance: 590°C (1100°F)
Direct heat resistor: 260°C (500°F)
Net weight: 250g
-
Sizes110x1
