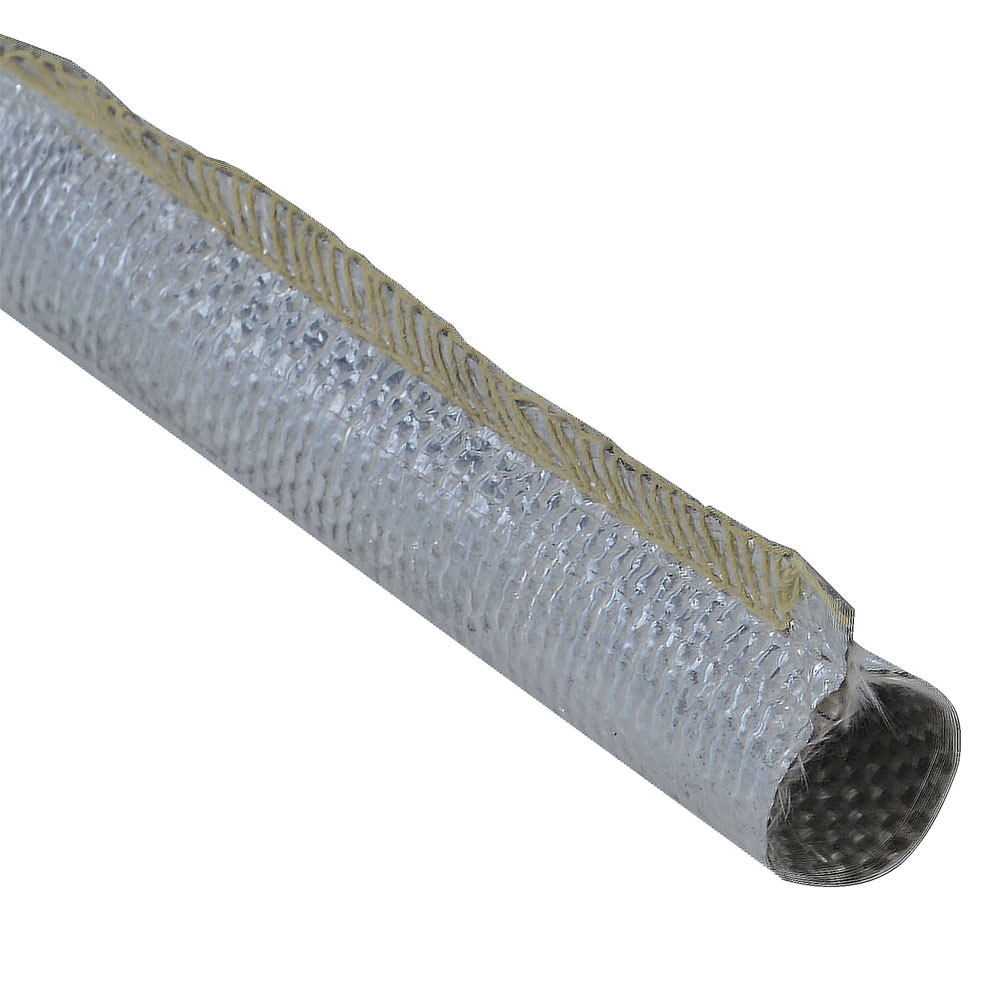

BG aluminum fiberglass heat shield sleeve dimensions 50mmx1m
Reference:
BG-5324
Supplier Ref.:
BG5324
BG's Ø50mmx1mm aluminum fiberglass heat shield can effectively protect fuel lines, oil lines and cable harnesses from exposure to continuous, radiant heat. It is ideal for effective heat management in a variety of locations, including engine bays, cockpits...
The reflective aluminum outer cover and fiberglass inner lining construction are sewn together with Kevlar stiching, meaning they can withstand continuous heat of 590°C and direct heat of 260°C.
Other diameters also available: 15mm (BG-5322), 30mm (BG-5323), 110mm (BG-5325)
Technical specifications:
Length: 1m
Internal diameter: 50mm (1.97")
Radiant heat resistance: 590°C (1100°F)
Direct heat resistor: 260°C (500°F)
Net weight: 150g
-
Sizes50x1
