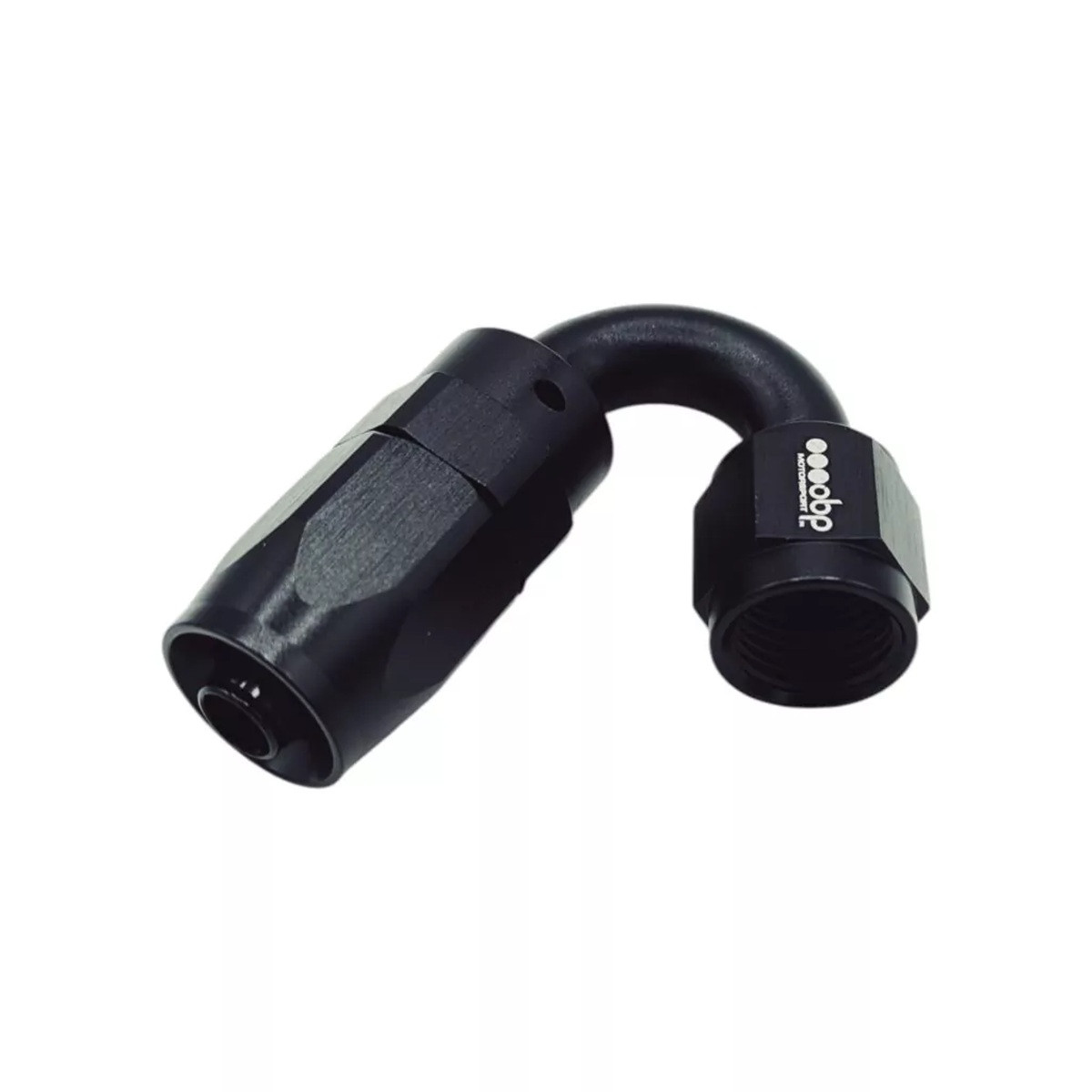

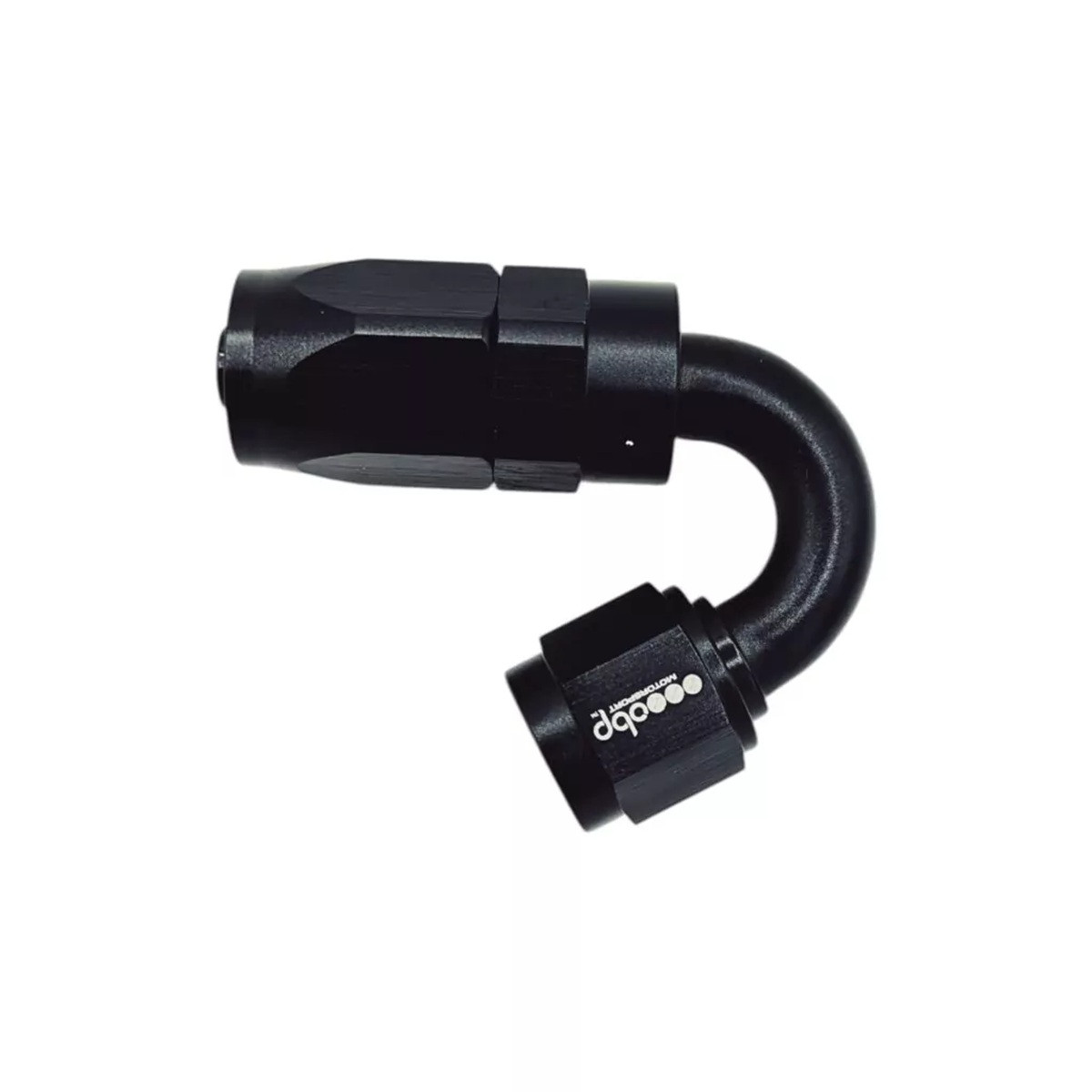

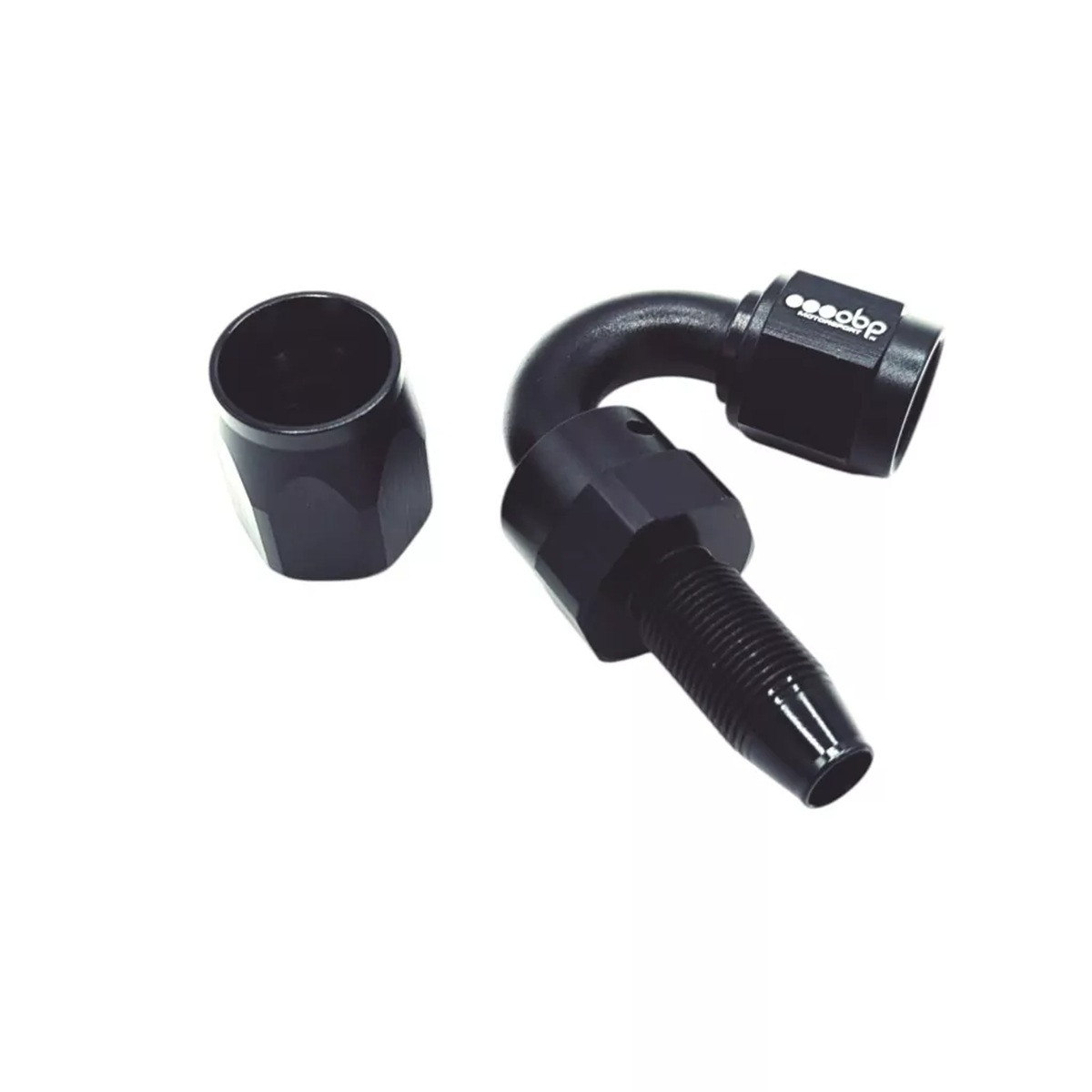

Black Aluminum 150° OBP CPE Female Fitting
Reference:
OBP-CPE-150.D6
Supplier Ref.:
OBP-CPE-6-150
OBP Type CPE 150° Female Fitting, Black Aluminum
- 150° angled design for flexible, space-saving hose routing
- CNC-machined from high-quality 6061 aluminum
- Stealth black anodized finish for increased durability and corrosion protection
- Dual-cut swivel system for easy, leak-free installation
- Compatible with fuel, oil, and coolant applications
- Designed for use with OBP Motorsport’s CPE braided fuel hose
OBP-CPE-4-150 (Dash4/AN4 CPE Hose) Dash4 7/16x20 JIC female thread Weight: 0.015 kg
OBP-CPE-6-150 (Durite Dash6/AN6 CPE) Dash6 9/16x18 JIC female thread Weight: 0.035 kg
OBP-CPE-8-150 (Durite Dash8/AN8 CPE) Dash8 3/4x15 JIC female thread Weight: 0.060 kg
OBP-CPE-10-150 (Dash10/AN10 CPE Hose) Dash10 7/8x14 JIC female thread Weight: 0.075 kg
OBP-CPE-12-150 (Dash12/AN12 CPE Hose) Dash12 1 1/16x12 JIC female thread Weight: 0.115 kg
| Dash 4 | 7/16 x 20 JIC |
| Dash 6 | 9/16 x 18 JIC |
| Dash 8 | 3/4 x 16 JIC |
| Dash 10 | 7/8 x 14 JIC |
| Dash 12 | 1 1/16 x 12 JIC |
| Dash 16 | 1 5/16 x 12 JIC |
-
Angle in °150
-
Main materialAluminum
-
Main colorBlack
