Cartek FIA 8874-2019 Rectangular LED rain light, Steady and Indicator Light

The Cartek rectangular LED rain light is designed for rear signaling on competition vehicles. Approved under FIA standard 8874-2019, it features 15 red LEDs and operates in steady-on or 4 Hz indicator light mode, depending on the selected electrical connection.

Its one-piece resin construction and IP65 protection rating make it suitable for use in racing conditions. Its compact design allows for horizontal or vertical mounting, secured with two M6 rear studs.

Operation and Use

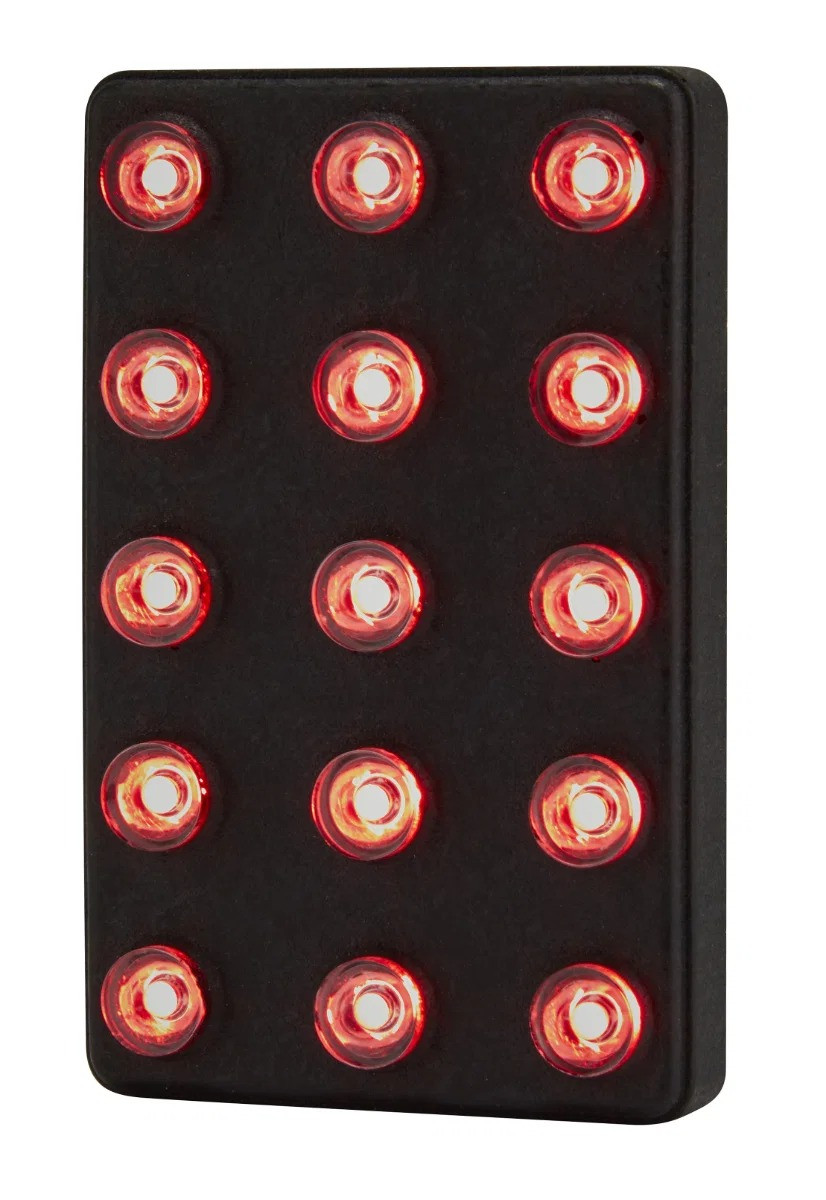

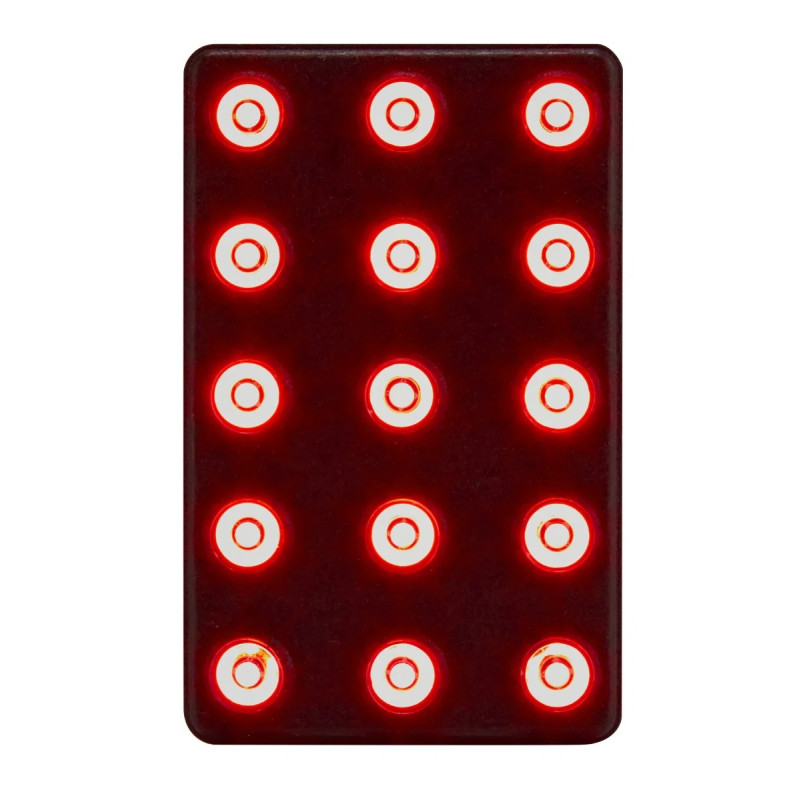

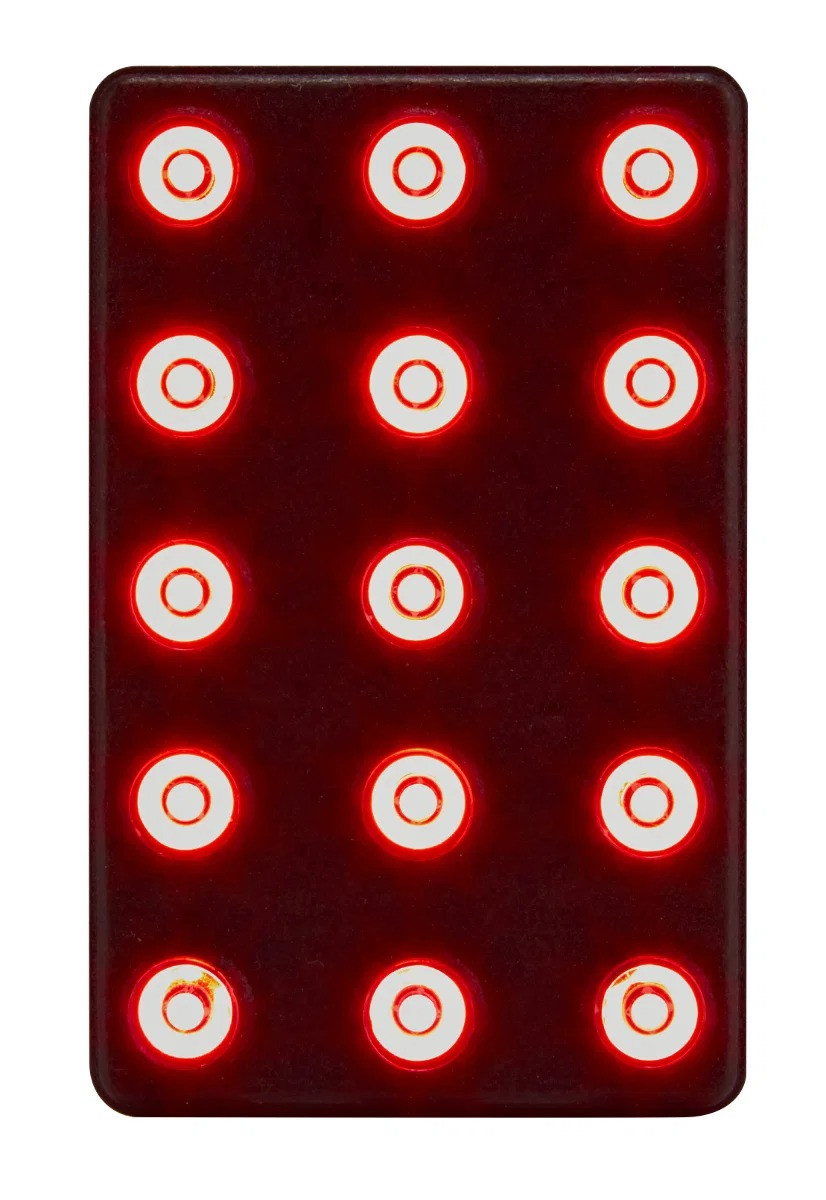

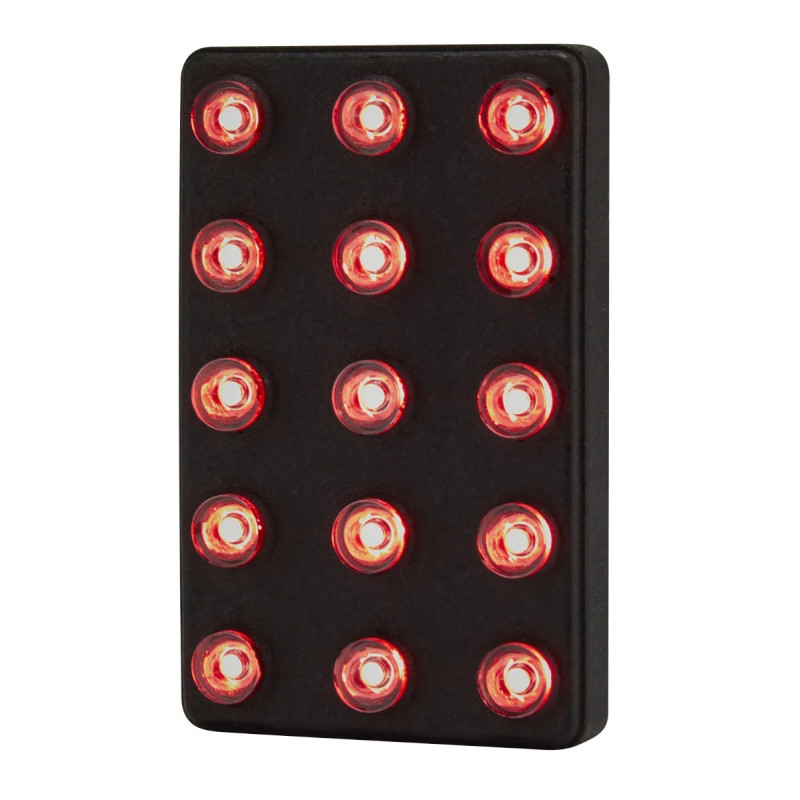

• Steady mode: continuous red light.
• Indicator light mode: four flashes per second, or 4 Hz.
• Combined Use: The light can be wired to serve as both a rain light and a brake light, in accordance with the Cartek wiring diagram.
• Mounting orientation: horizontal or vertical.

Technical Specifications

• Brand: Cartek.
• Manufacturer part number: CK-LRS-15RM.
• Type: Rectangular LED rain light.
• Approval: FIA 8874-2019.
• Homologation number: RL.009.22.

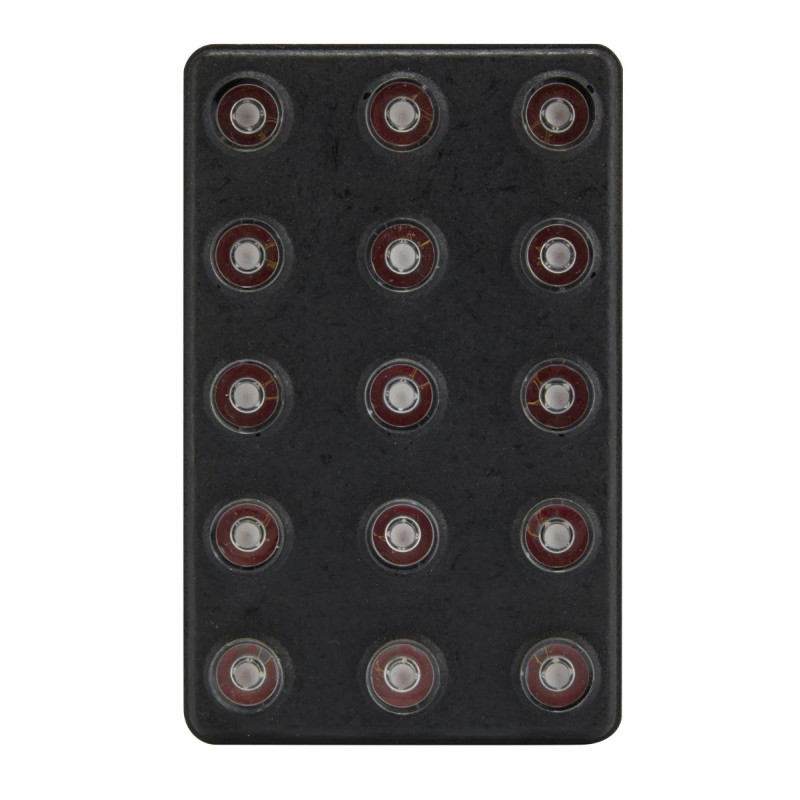

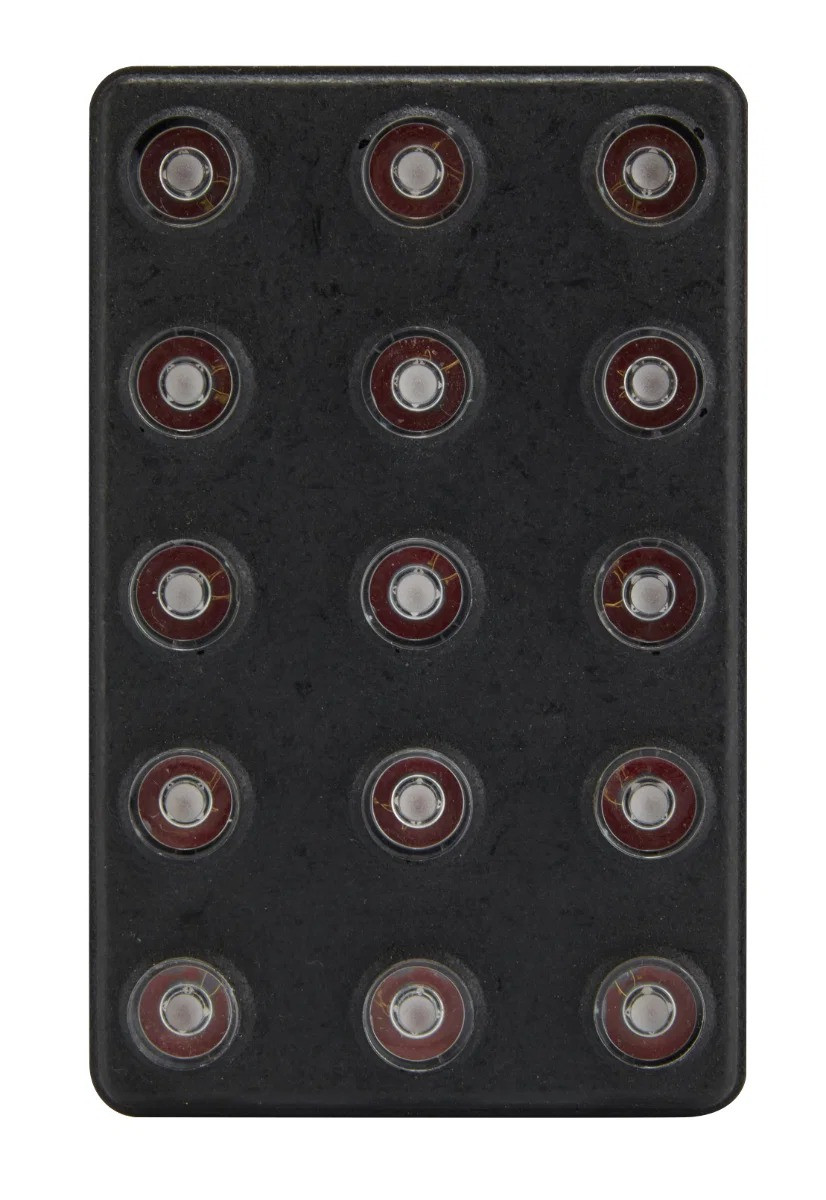

• Light sources: 15 LEDs.
• Color: red, length of 620 nm.
• Modes: steady or indicator light at 4 Hz.
• Supply voltage: 11.3 to 15.6 V.
• Current consumption: 700 mA at 12.5 V.

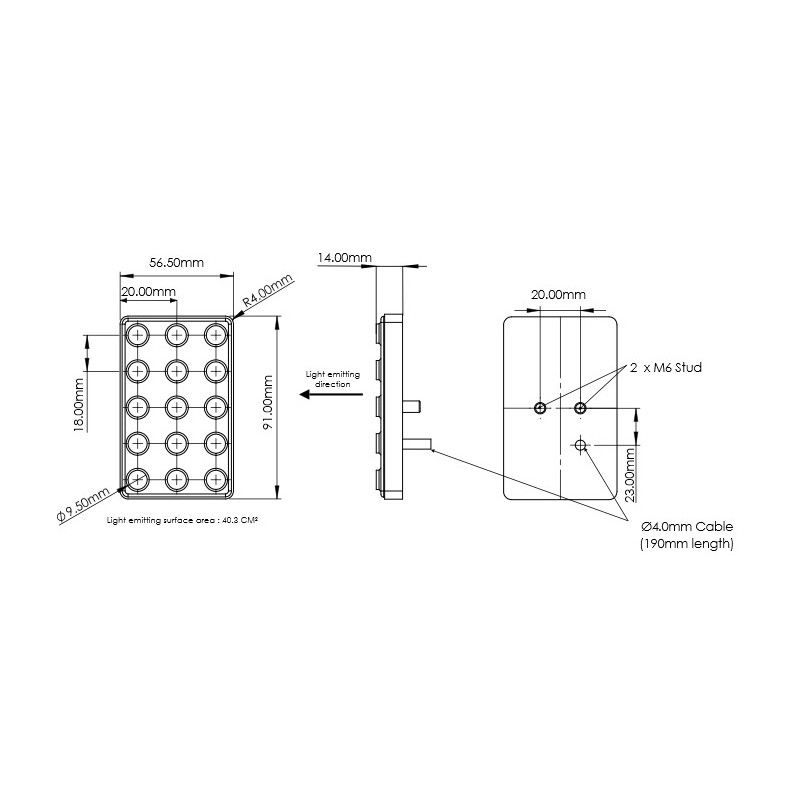

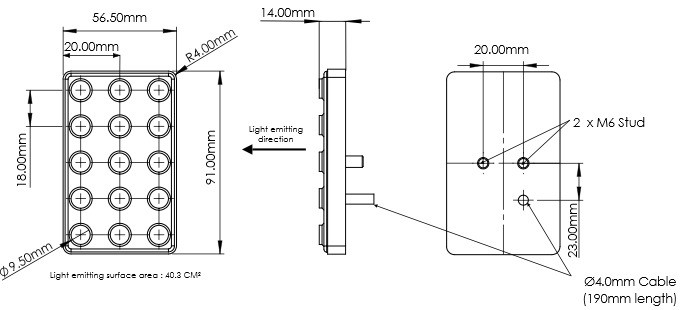

• Housing sizes: 91 × 56.5 × 14 mm, excluding mounting studs.
• Construction: one-piece resin molding.
• Protection rating: IP65.
• Operating temperature: −10 to +105 °C.
• Connection: 190 mm connecting cable with Mil-Spec type 55 wires, 22 AWG.

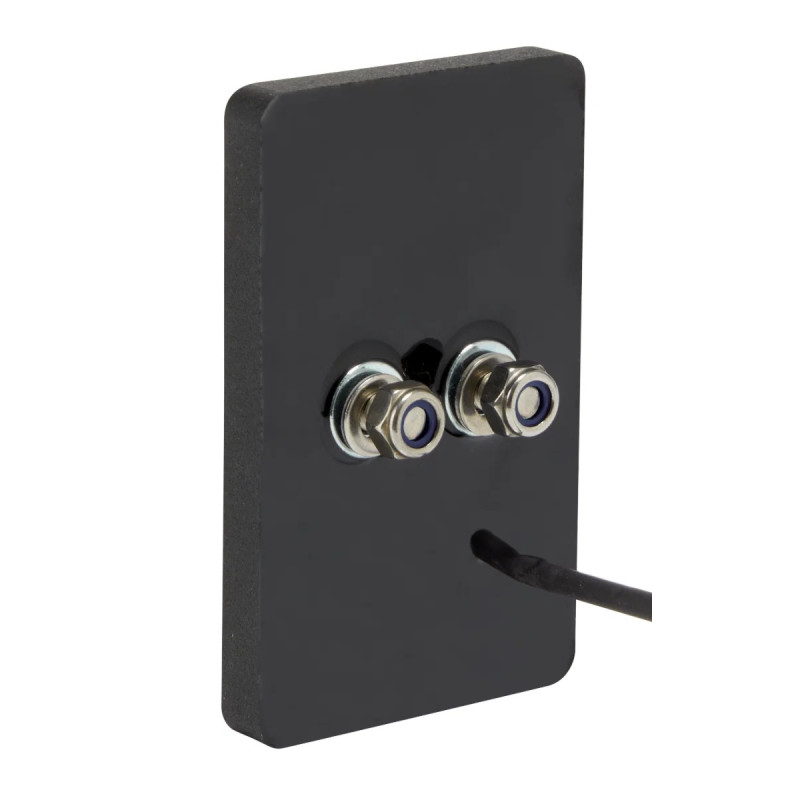

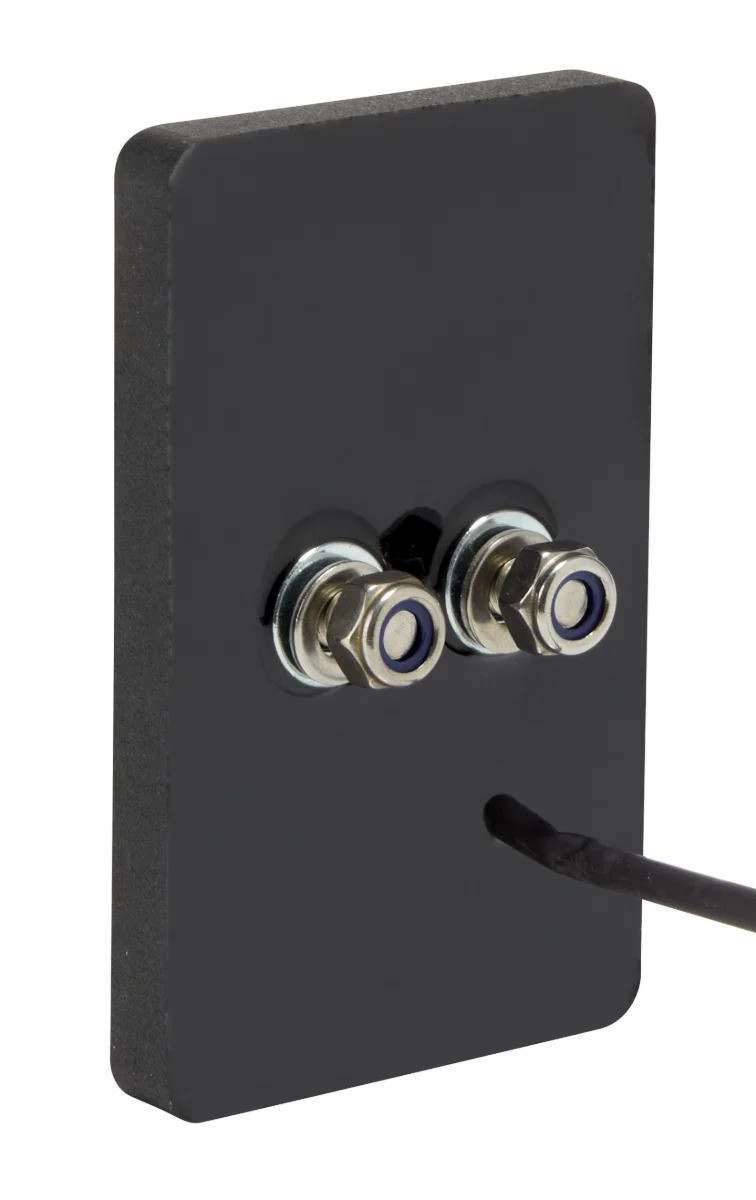

• Mounting: two M6 rear mounting studs.

Mounting and Wiring

Secure the light using the two M6 studs and the foam gasket, without exceeding a tightening torque of 7 Nm. Make the connection according to the Cartek manual, depending on the desired lighting mode.

Prolonged operation in steady-on mode may cause the light to become hot to the touch. For installation near the exhaust, Cartek recommends using only the 4 Hz indicator light mode.
