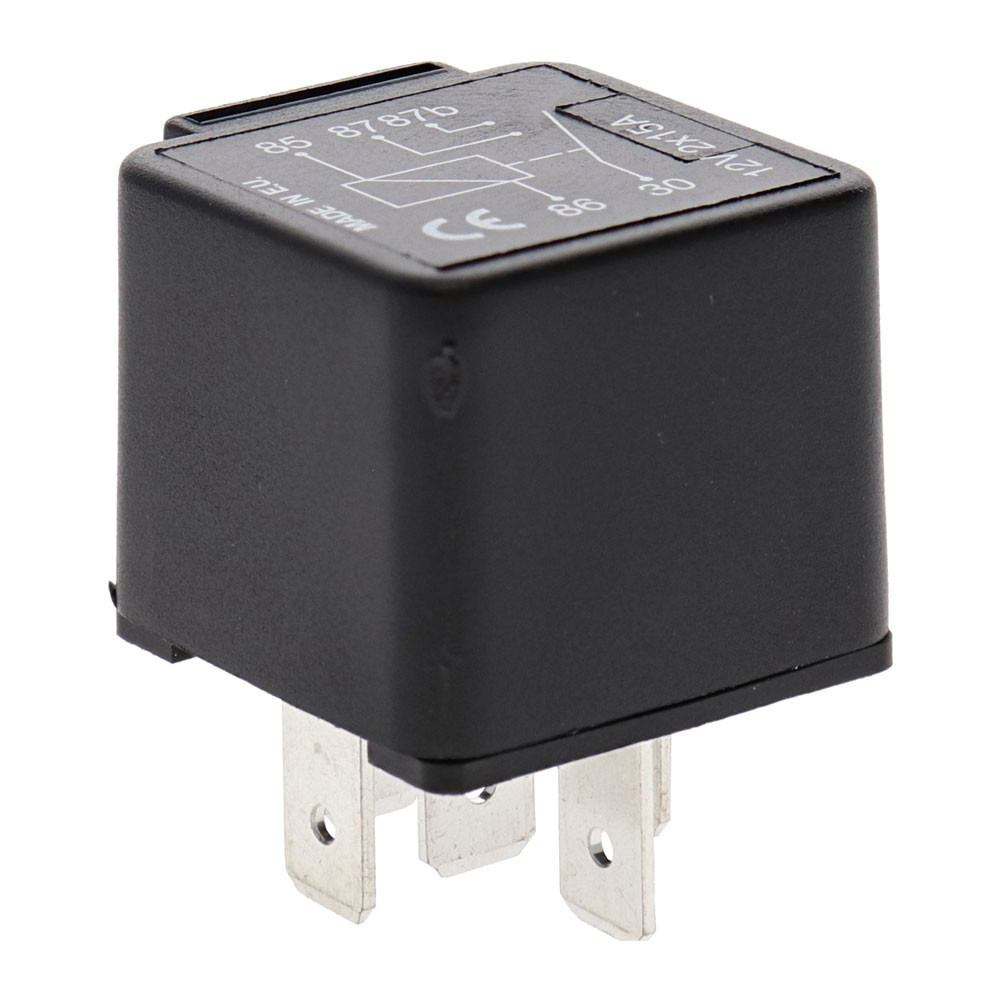

Mini Relay 12V - 5B
The RL.06112 mini relay has been specially designed for automotive applications operating at 12 V DC. It is equipped with 5 terminals, including two separate outputs (87 and 87b), allowing a double contact to power two circuits simultaneously from the same control.
This relay is supplied with a removable metal bracket, facilitating its installation in different types of vehicles or electric power systems.
The plug-in terminals comply with the ISO-8092 standard, ensuring optimal compatibility with standard automotive power drives.
Features:
Reference: RL.06112
Voltage (V): 12 V
Current (A): 2 x 15 A
Terminal configuration: 85 / 86 / 30 / 87 / 87b
Internal equipment: No resistor, no diode
Function: Simultaneous dual output
