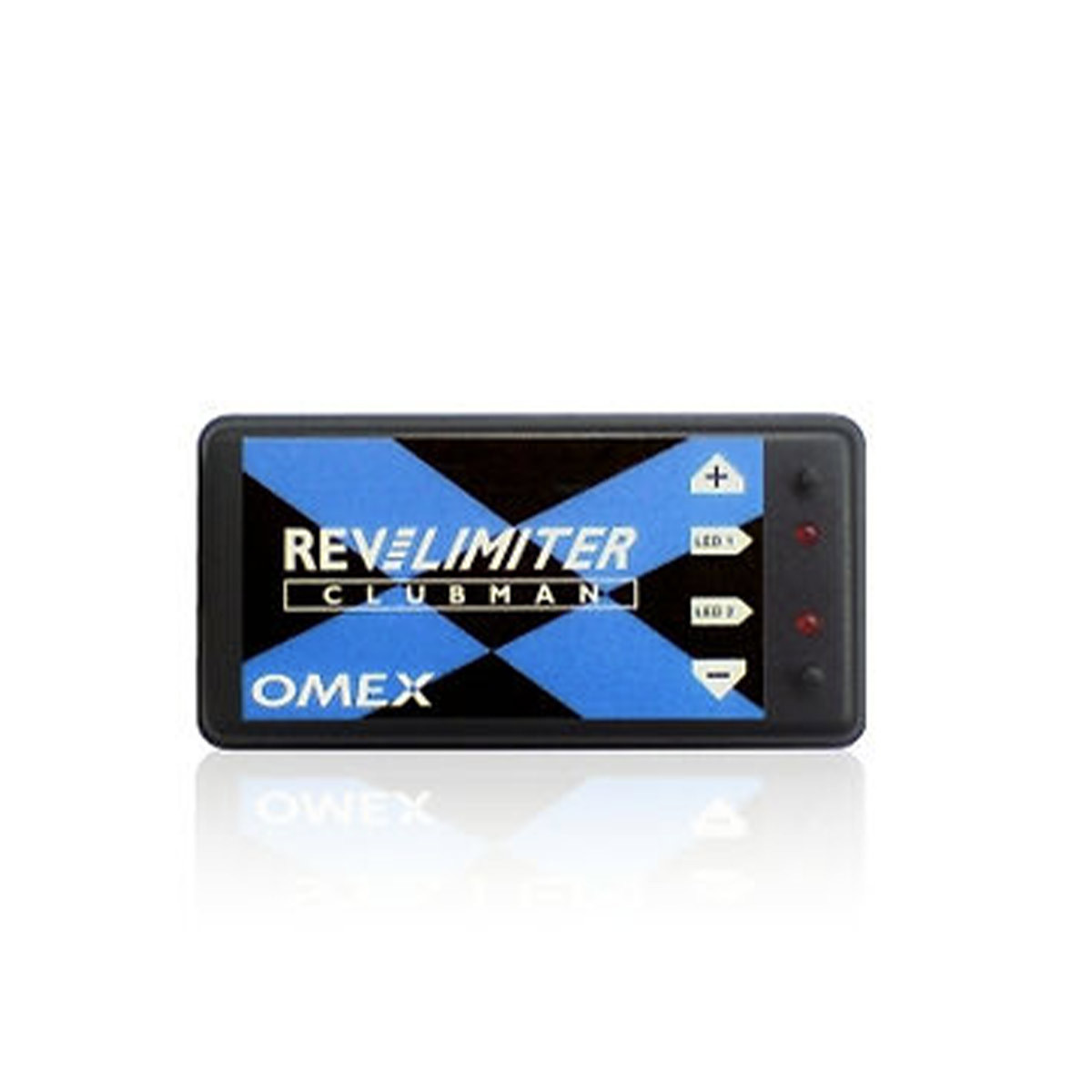

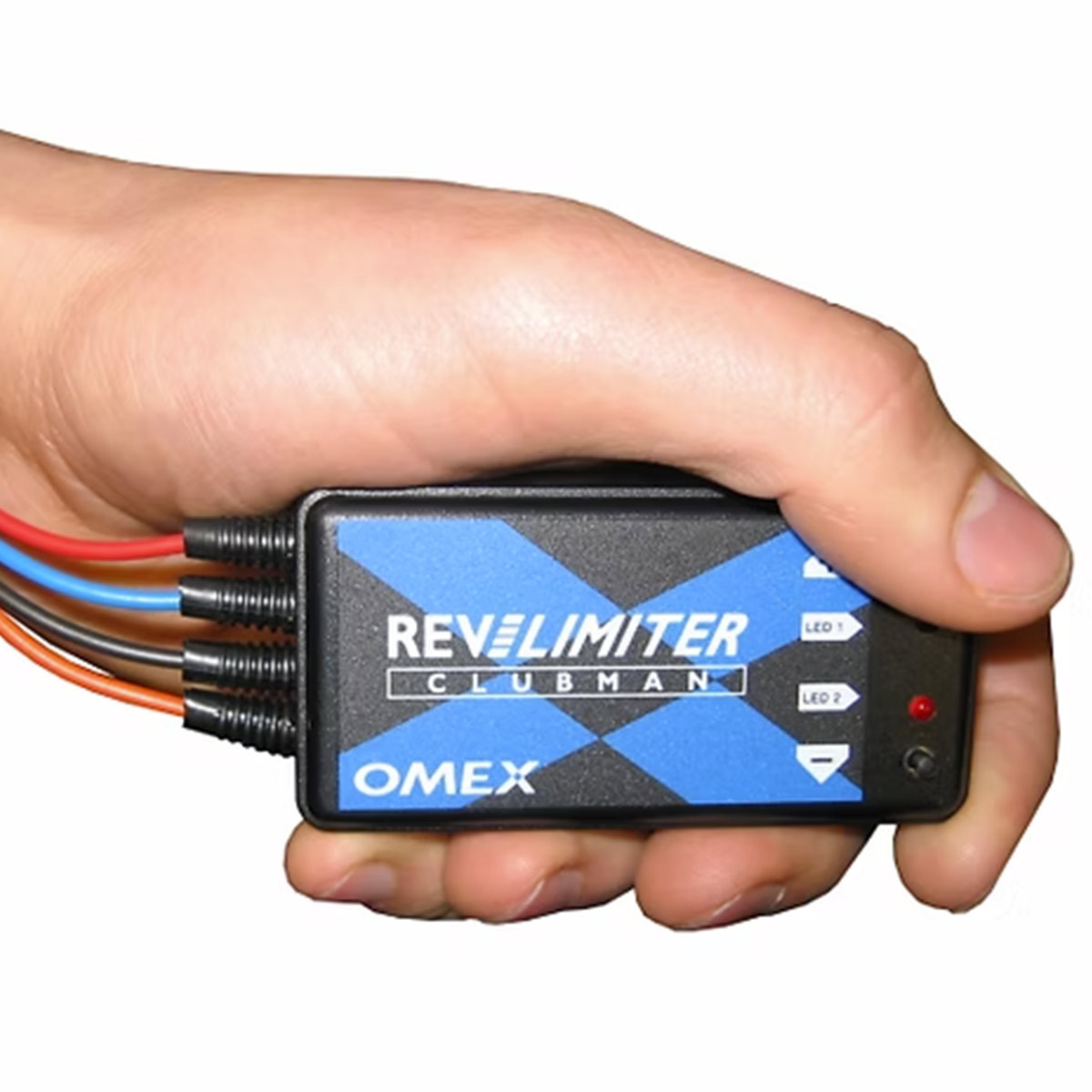

The Omex Clubman Single-Coil Revolutions Limiter, also known as the REV LIMITER, protects the engine from over-revving via a selectable soft or hard firing cut-off.
Its digital adjustment allows you to set the cutoff speed in 100 RPM increments, with an accuracy of ±10 RPM at 6,000 RPM.
It is designed exclusively for engines equipped with a traditional firing system featuring a single coil and an ignition distributor.
Manufactured in the United Kingdom at an ISO 9000-certified facility, each unit is individually tested. Its epoxy-filled housing has resistance to vibration, shock, and water.
Technical Specifications
Brand: Omex Technology
Part Number: OMRLC
Type: Electronic Revolutions Limiter
Cut-off: Selectable soft or hard
Adjustment: Digital in 100 rpm increments
Accuracy: ±10 rpm at 6,000 rpm
Revolutions range:
- 2-cylinder: 1,000 to 20,000 rpm
- 4 cylinders: 1,000 to 20,000 rpm
- 6-cylinder: 1,000 to 12,000 rpm
- 8-cylinder: 1,000 to 10,000 rpm

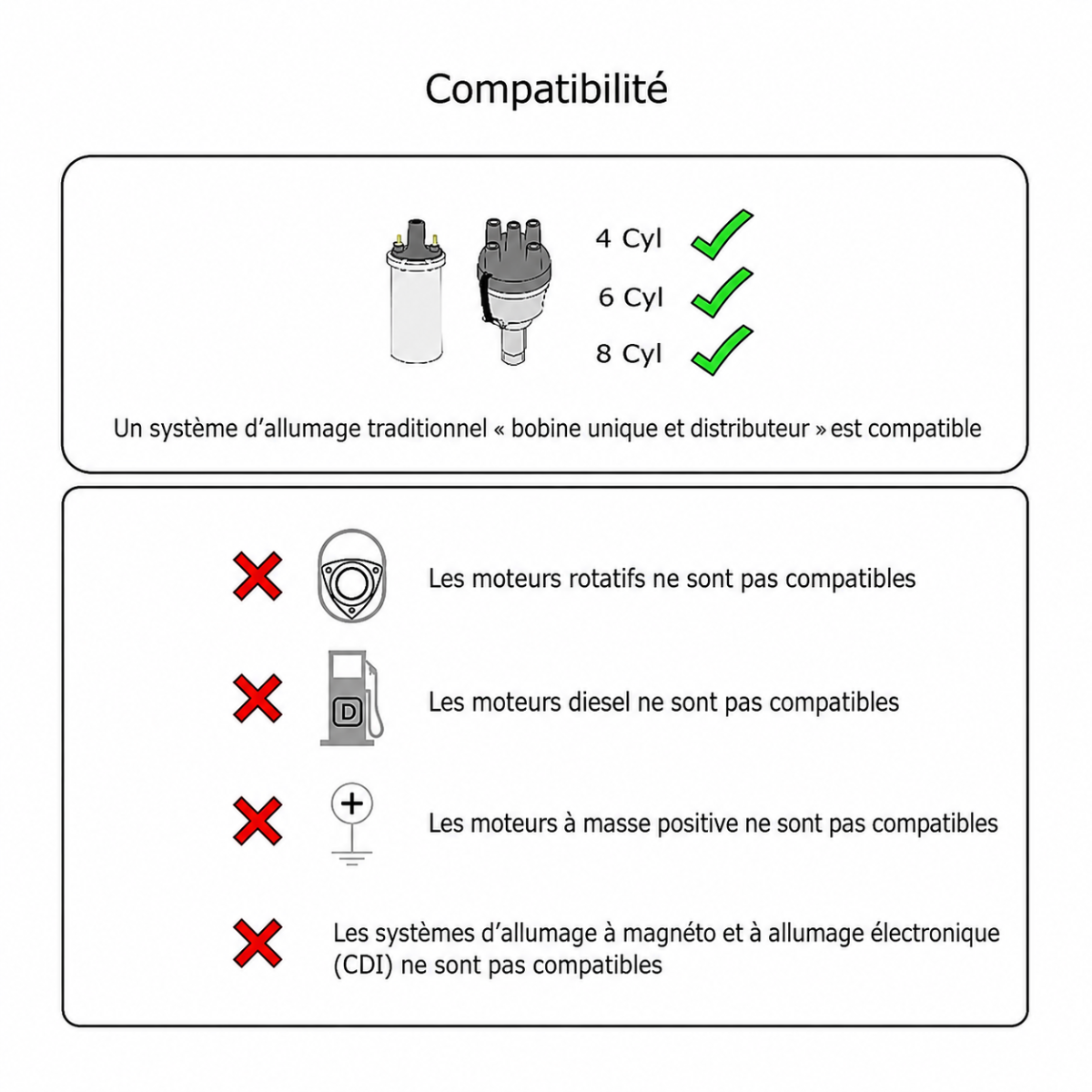

Firing compatibility:
- Single ignition coil
- Distributor-type ignition system
- Resistive or shielded high voltage cables
Not compatible with:
- Multi-coil firing
- CDI firing
- Magneto firing
- Vehicles with positive ground
- Rotary piston engines
- Diesel engines
- Copper-core firing cables
Construction:
- Manufactured in the UK
- ISO 9000-certified factory
- Epoxy-filled housing
- Individually tested product
