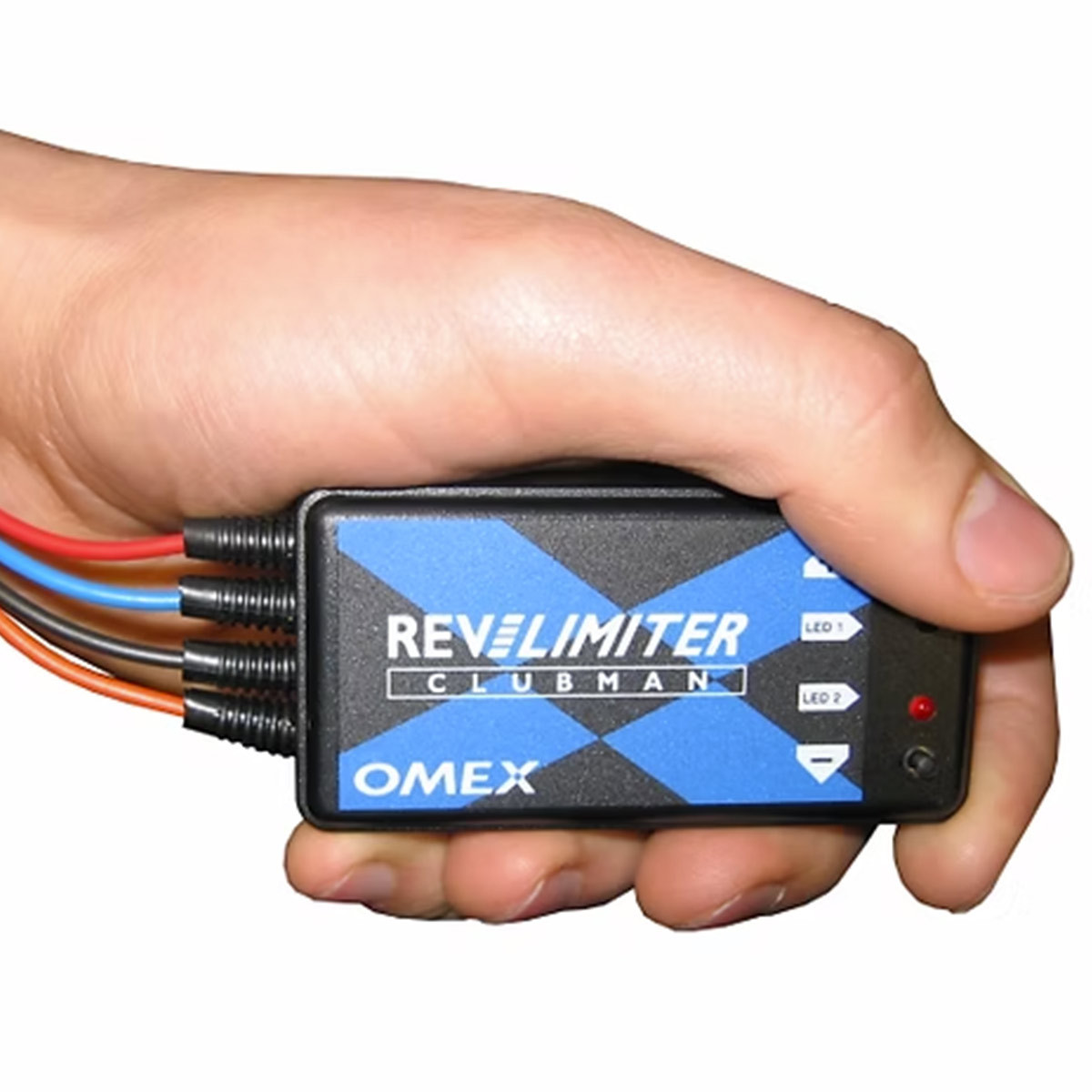

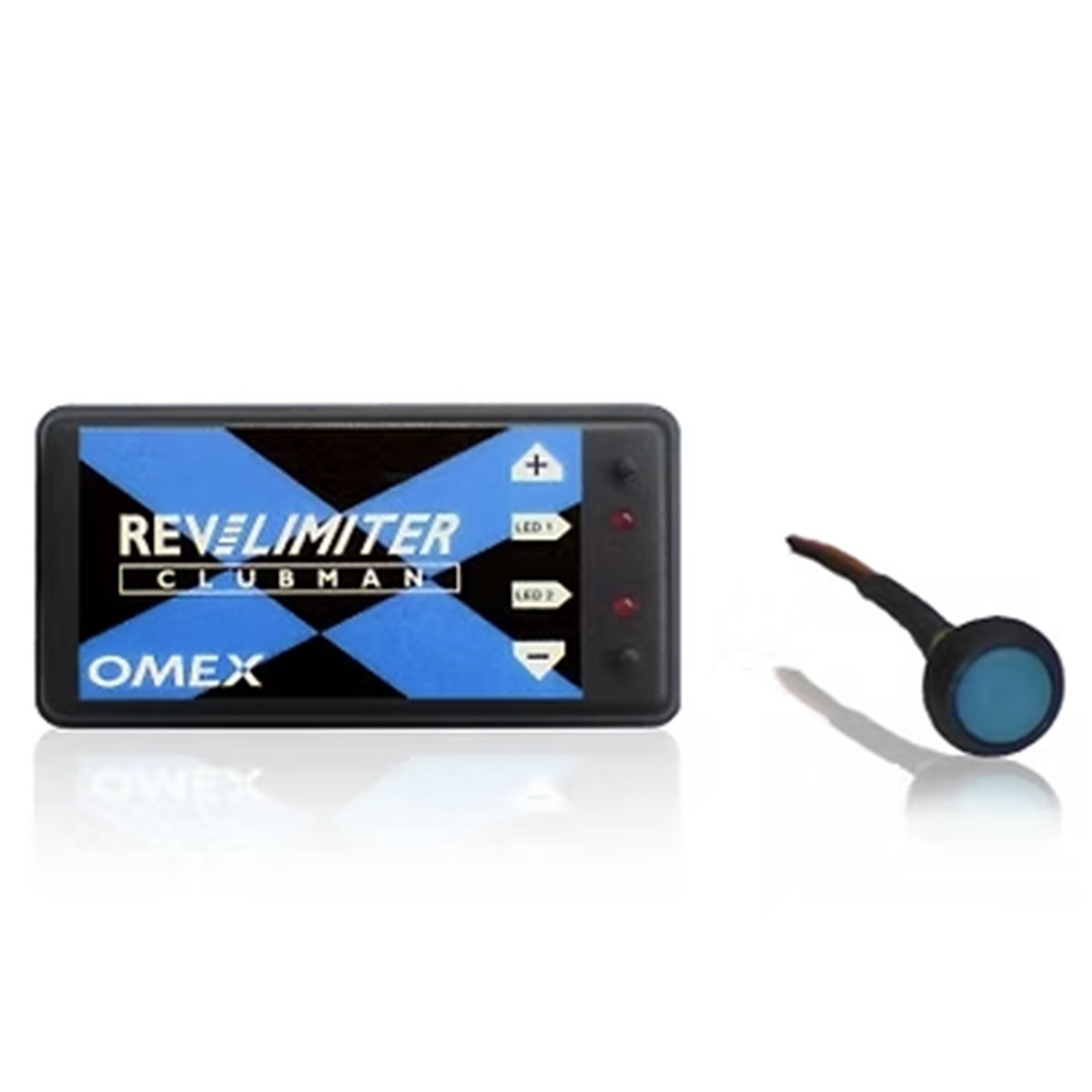

Omex revolutions limiter with launch control

The Omex OMRLCLCT revolutions limiter combines effective protection against over-revving with a launch control function, allowing for optimized standing starts. The revolutions limiter uses a selectable soft or hard ignition cut-off, while the launch control maintains the engine at the set RPM via the supplied button to ensure smooth and repeatable starts.

Thanks to Omex’s digital adjustment, the cutoff speed and launch RPM can be programmed with a resolution of 100 RPM, ensuring precise tuning without relying on the inaccuracies of the rev-counter. On turbocharged engines, Launch Control also maintains boost pressure before launch to improve acceleration performance.

Manufactured in the United Kingdom at an ISO 9000-certified facility, each unit is individually tested before release. Its epoxy resin encapsulation provides excellent resistance to vibration, shock, and moisture, meeting the demands of motorsports.

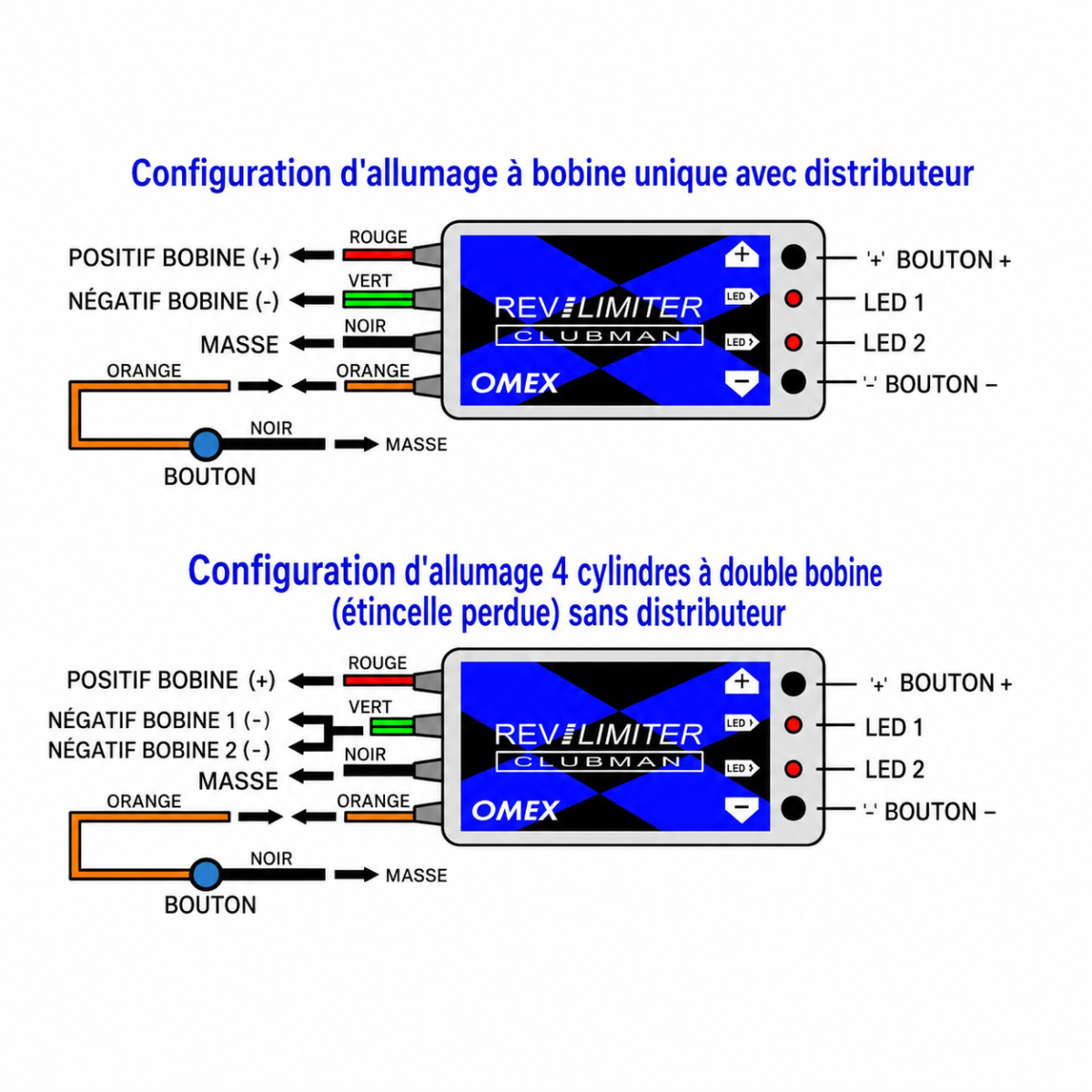

⚠️ Installation: This product requires knowledge of automotive electrical systems as well as the ability to identify the vehicle’s various electrical circuits. A basic wiring diagram is included with the product, but the vehicle-specific wiring diagram may be necessary to ensure a proper installation.

---



Technical Specifications

Brand: Omex Technology
Type: Electronic Revolutions Limiter with Launch Control

Operation:

• Revolutions limiter with soft or hard firing cut-off
• Launch Control function

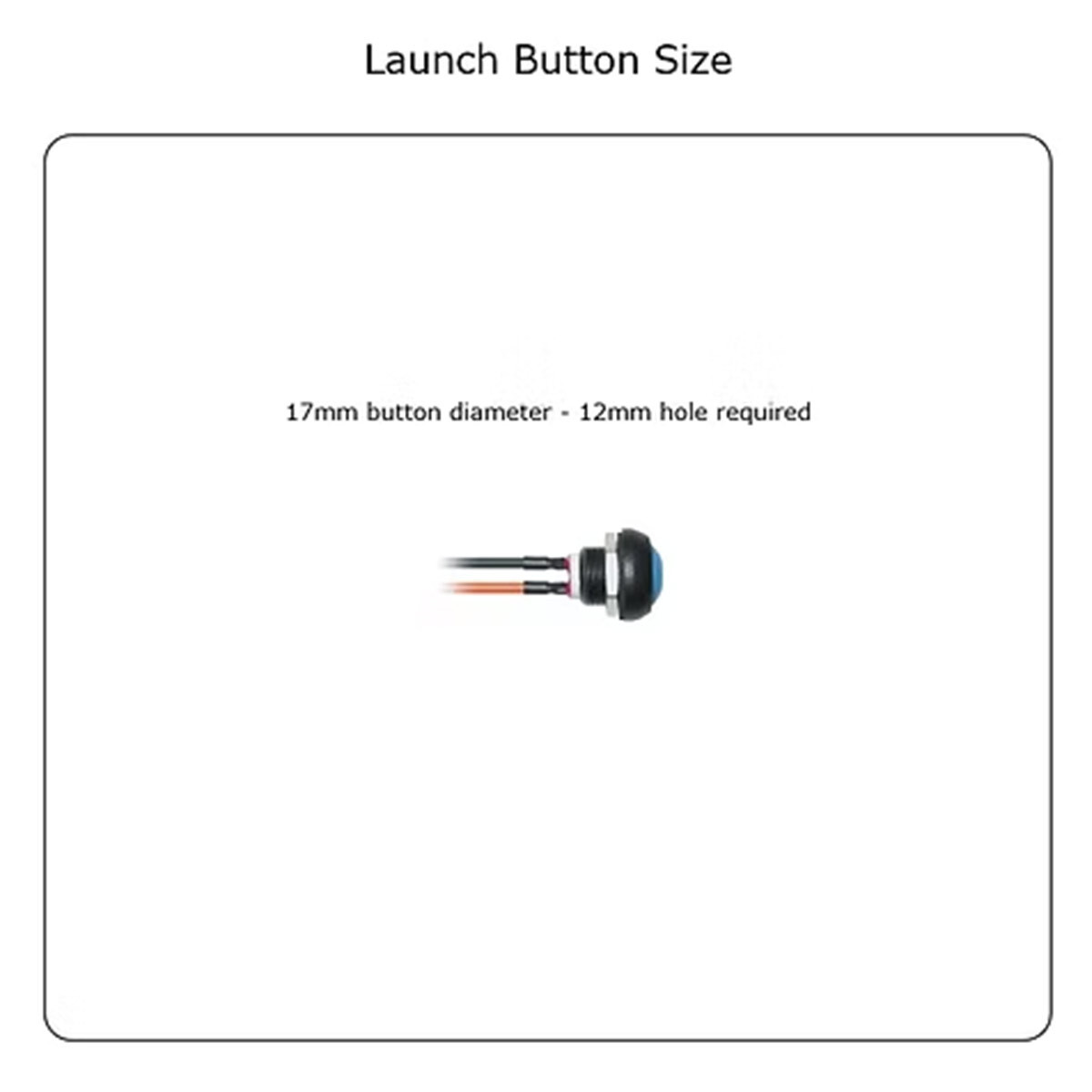

• Launch Control button included
• Digital adjustment in 100 rpm increments
• Accuracy: ±10 rpm at 6,000 rpm

Revolutions range:

• 2-cylinder: 1,000 to 20,000 rpm
• 4-cylinder: 1,000 to 20,000 rpm
• 6-cylinder: 1,000 to 12,000 rpm
• 8-cylinder: 1,000 to 10,000 rpm

Compatibility:

• Check firing system compatibility before installation

Construction:

• Manufactured in the UK
• ISO 9000-certified factory
• Housing filled with epoxy resin
• Individually tested product
• Housing sizes: 82 × 40 × 22 mm
