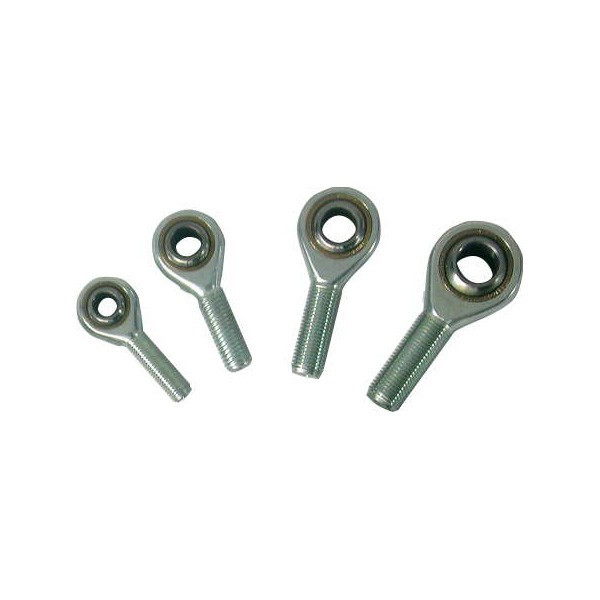

Aurora right hand thread rod end 3/4"16

AURORA
Reference: RO-PRM-12T
Supplier Ref.: PRM-12T
CHF 295.80 Tax included
CHF 348.00 -15% Discount
Promotion ends in: 03 D 05 H 00 M 31 S
In stock
Unavailable in store (Promasens)
Shipped on 2026-10-12 from our warehouse
Earn 295 loyalty points (that is CHF 5.00 in vouchers)

The rod end reduces movement and play in the running gear. It also replaces ball joints and/or some original rubber bushes.

Technical datas :

Bore: .750″ (19,050 mm)
Thread: 3/4″-16 UNJF-3A right hand
Thread length: 1.687″ (42,85 mm)
Ball width: .875″ (22,225 mm)
Housing / race width: .640″ (16,26 mm)
Outside diameter: 1.775″ (45,09 mm)
Misalignment α: 13,6°
Fit / no load breakaway torque: 1-15 In-Lbs
Ultimate radial static load capacity: 34319 lbs (152658 N)
Approx weight : .64 lbs (290 g)


Material

Body: 4340 low carbon steel, heat treated
Race: 17-4 PH stainless steel, heat treated
Ball: Alloy steel, heat treated, hard chrome plated
PTFE liner: AT3200 (PTFE / Nomex laminate) qualified to SAE-AS81820 Type A for highest performance
