SACHS RCS 184 S7.8-L-047 Sintered Metal Clutch Disc

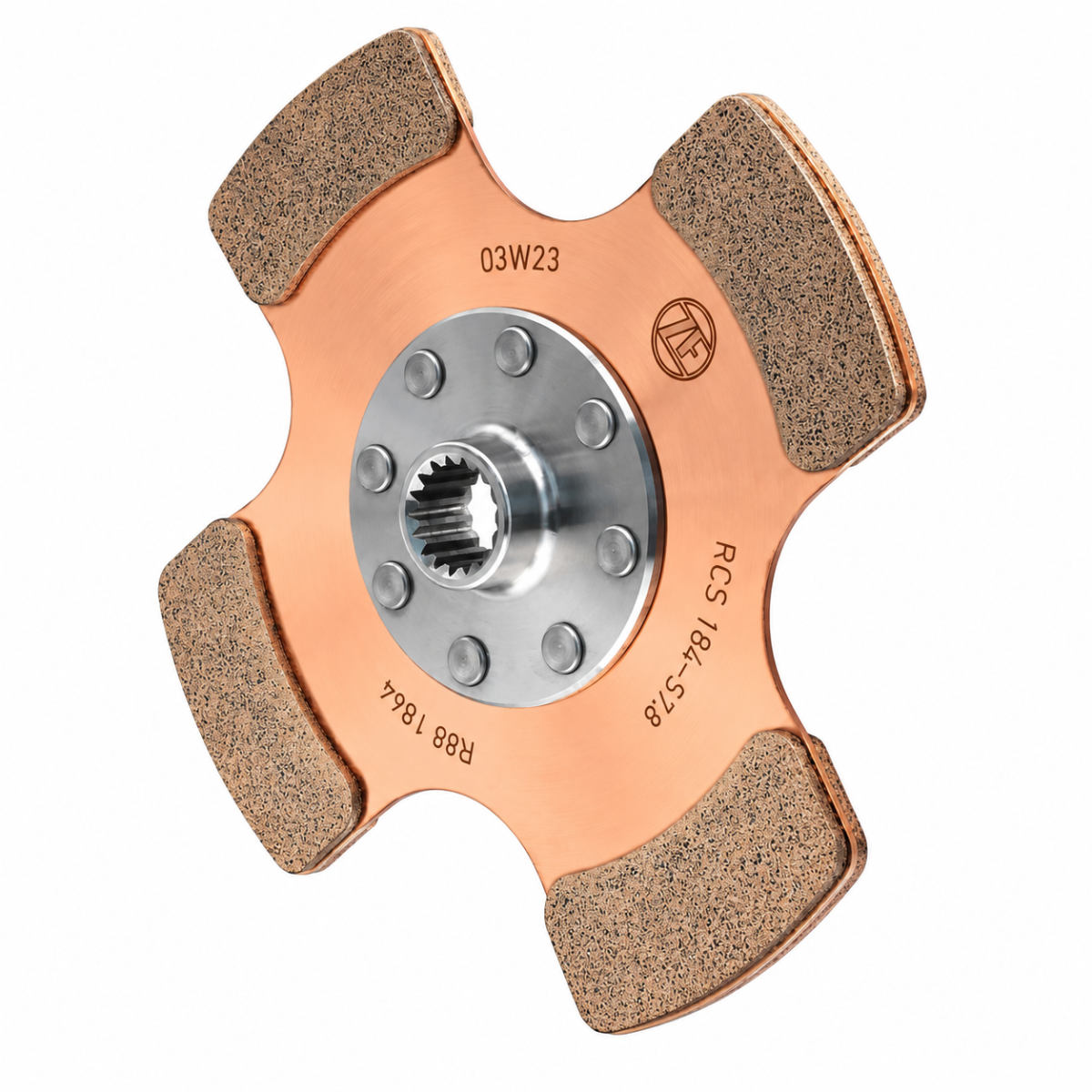

The Sachs 881864002247 clutch disc is a racing disc from the RCS 184 modular range. The RCS 184-S7.8-L-047 version combines a diameter of 184 mm with 7.8 mm-thick sintered metal pads to withstand the high mechanical and thermal stresses encountered in motorsports.

This rigid clutch disc uses sintered metal plates brazed to a backing plate. This design is suitable for high temperatures, repeated load changes, and applications where direct drive is required.

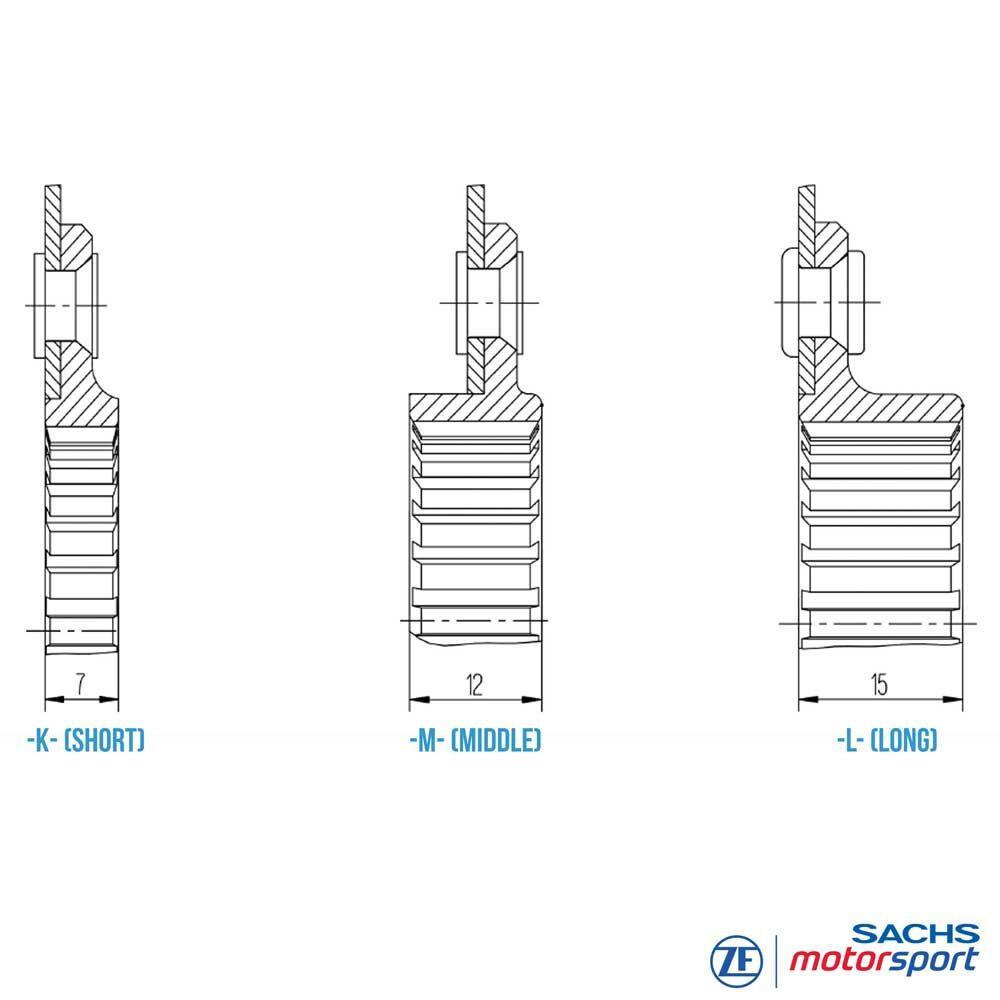

Part number 881864002247 features a long hub and a 047 spline profile corresponding to the sizes 24/32 - 23 - 30°. It is intended for integration into a compatible Sachs RCS 184 racing clutch configuration.

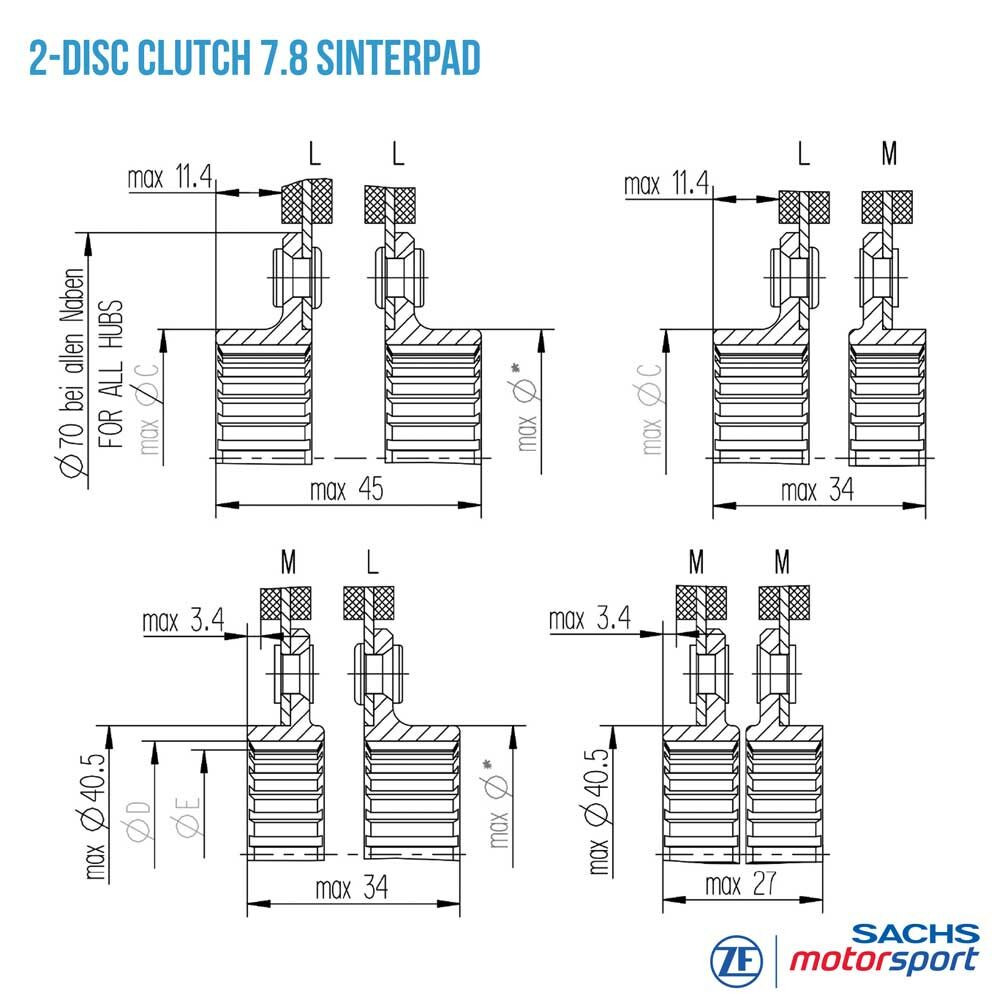

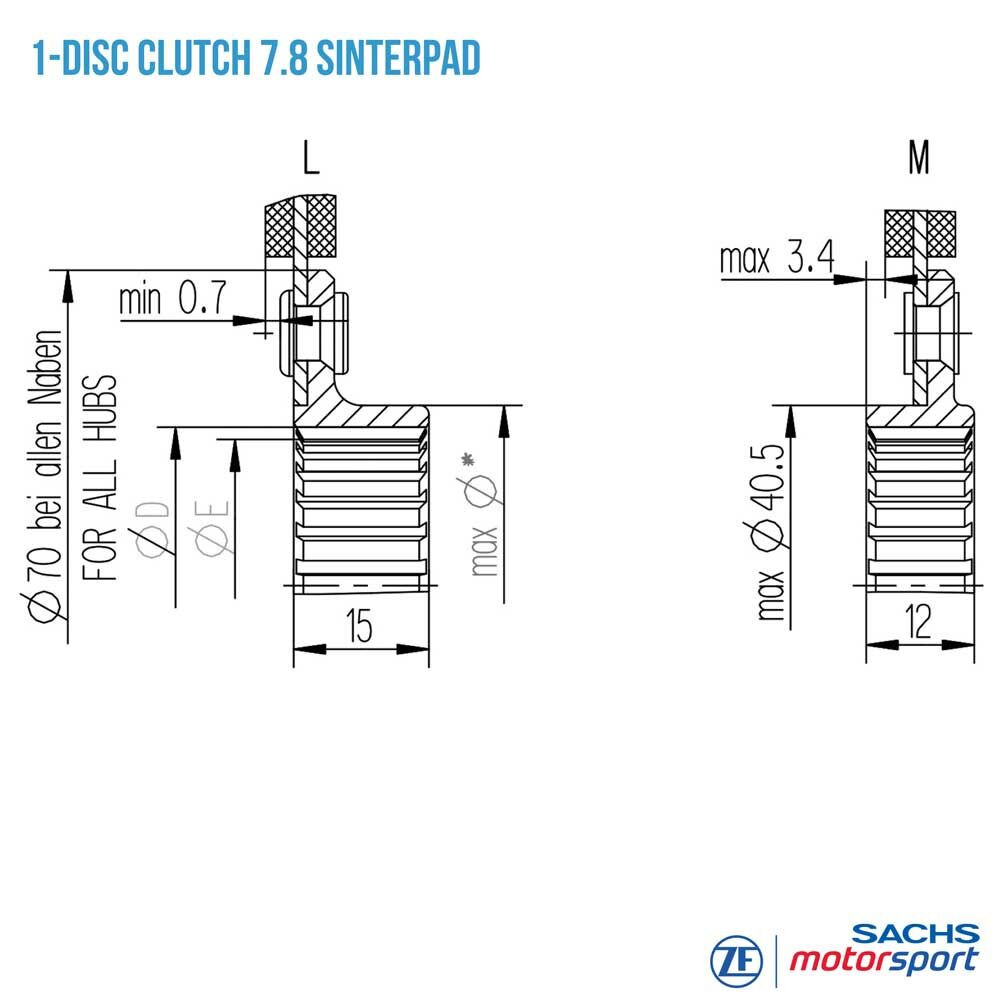

Since the RCS 184 system is modular, the spline profile, hub length, and other clutch components must be checked prior to mounting to ensure they are compatible with the gearbox input shaft and the configuration being used.

Technical Specifications

• Brand: Sachs
• Manufacturer Part Number: 881864002247
• Range: RCS 184
• Version: RCS 184-S7.8-L-047
• Type: Rigid racing clutch disc
• Diameter: 184 mm
• Friction material: sintered metal
• Trim thickness: 7.8 mm
• Construction: sintered metal pads brazed onto a bracket
• Hub length: long
• Groove profile: 047
• Grooves: 24/32 - 23 - 30°
• Application: auto racing
