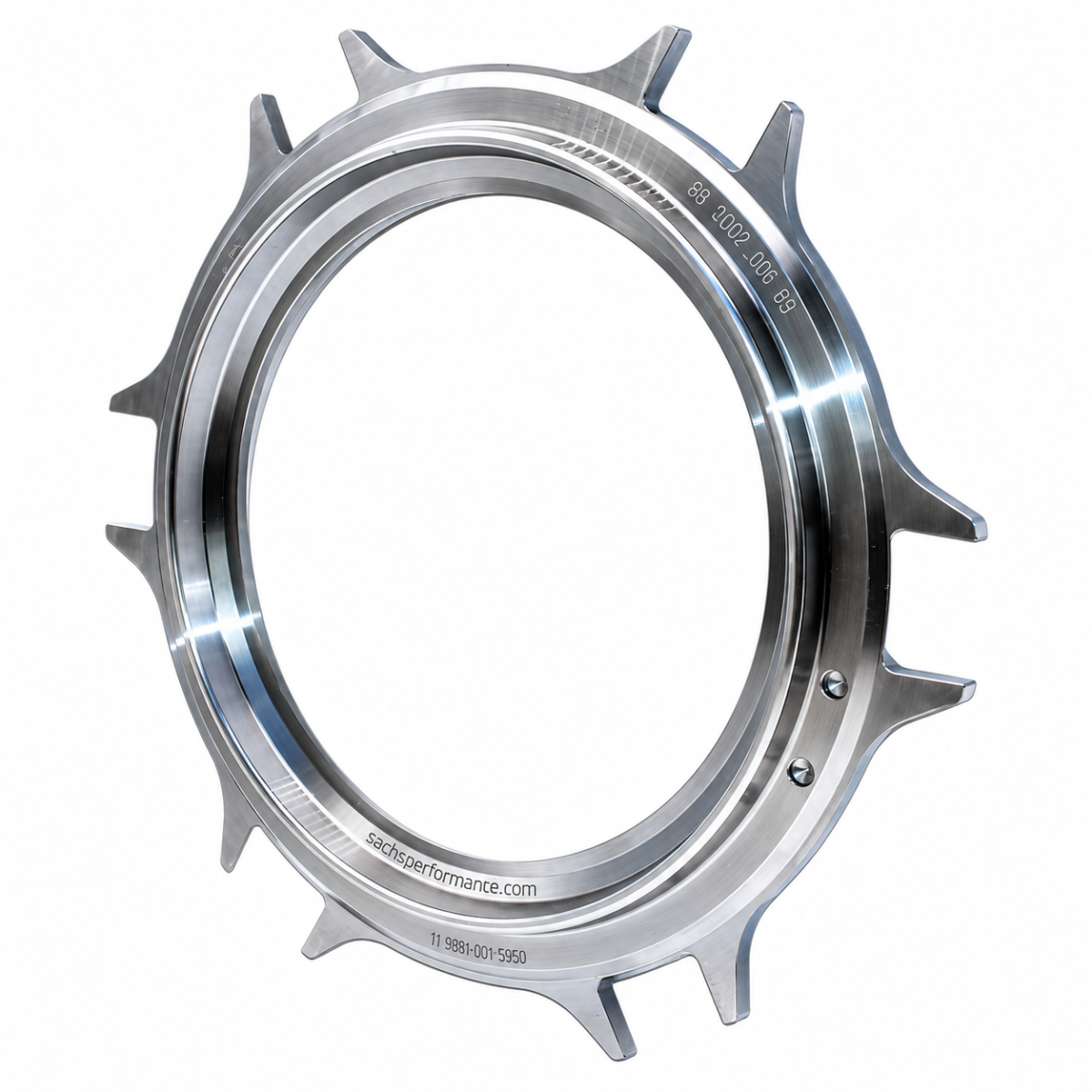

Sachs RCS 184 pressure plate for Renault Clio Rally5 EVO

The Sachs pressure plate 003002001898 is a component of the RCS 184 competition clutch system, offered here for the Renault Clio Rally5 EVO. It is located inside the clutch cover and plays a direct role in the tightening of the clutch disc against the flywheel.

The pressure plate transmits the force generated by the diaphragm spring to the friction pack. This function provides the necessary tightening force to transmit torque between the engine and the transmission when the clutch is engaged.

Part number 003002001898 is made of high-resistance steel and features a precision-ground friction flank. Its geometry is specifically adapted to the Sachs RCS 184 modular system to ensure consistent contact of the friction pack under the thermal and mechanical stresses encountered in competition.

During a clutch overhaul, the surface finish, thickness, and out-of-roundness of the clutch plate must be inspected. Sachs recommends using only RCS 184 discs and components that are compatible with the clutch mechanism’s configuration.

Technical Specifications

• Brand: Sachs
• Manufacturer part number: 003002001898
• Range: RCS 184
• Type: Clutch pressure plate
• Nominal system diameter: 184 mm
• Material: high-resistance steel
• Friction flank: ground
• Compatible system: Sachs RCS 184
• GT2i application: Renault Clio Rally5 EVO
• Use: Auto racing
