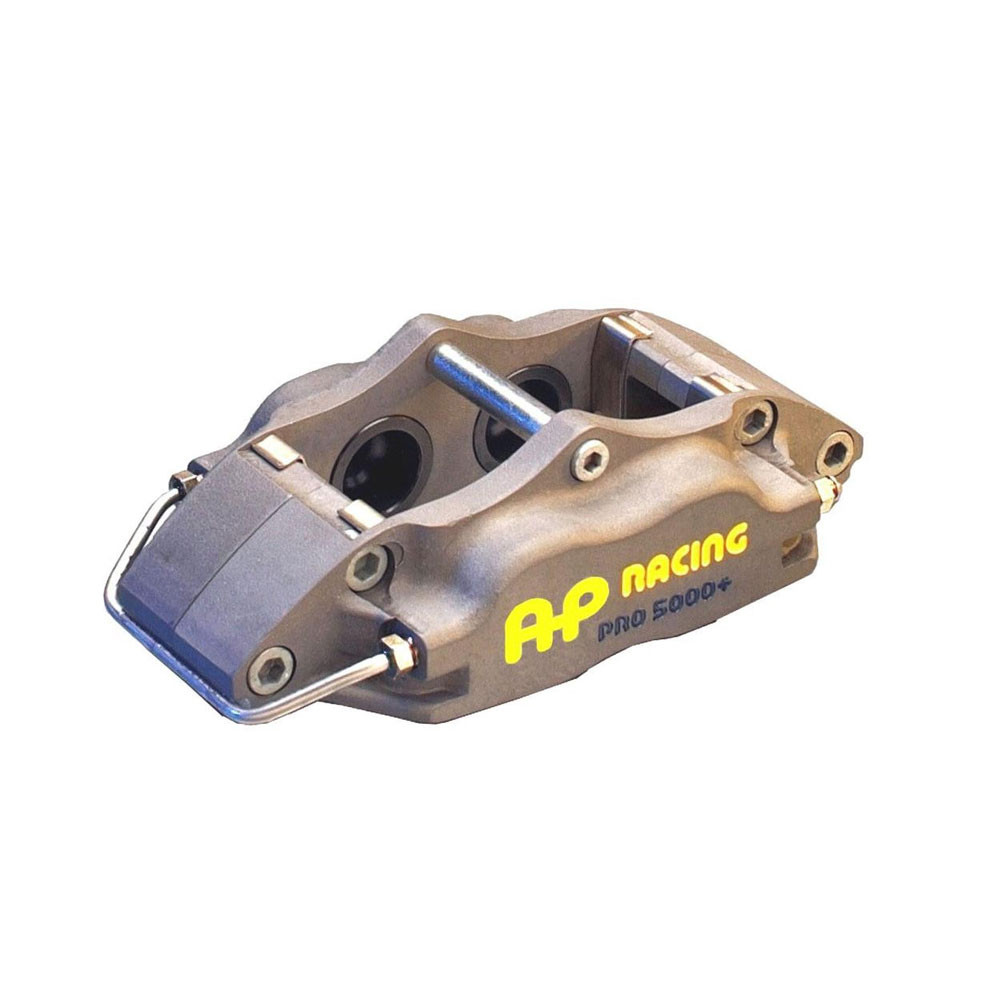

AP Racing 4 pistons brake caliper 25.4mm RHT CP334 Front Right
Reference:
AP-CP5040-10S4
Supplier Ref.:
CP5040-10S4
The AP Racing CP5040 4-piston brake caliper has been designed for competition use and offers reliable, high-performance braking on the track. Part of the Pro 5000 range, it benefits from AP Racing's expertise in motorsport.
Its radial mounting ensures excellent rigidity and rapid braking response, for good pedal feel. This front right caliper is compatible with Ø280 or Ø295 mm discs (25.4 mm thick) and has four Ø38.1 mm pistons, guaranteeing powerful and well-modulated braking.
Specifications:
- Piston diameter (mm): Ø38.1 × 4
- Total piston surface area: 45.6 cm²
- Weight (without pads): 1.9 kg
- Hydraulic thread: M10 × 1.0
- Mounting type: radial
- Mounting centre distance (mm): 130.0
- Mounting offset (mm): 43.2
- Mounting hole diameter (mm): 10.2
- ‘PL’ rib dimension (mm): 53.0
- Bleeding screw tightening torque: 17 N·m
- Position: Front
- Side: Right
Details Brake pad:
Pad reference: CP3345D44
Friction surface: 43.4 cm²
Pad depth: 44.1 mm
Thickness: 16.0 mm
Spare parts – Caliper
Pistons:
— Aluminium: CP3215-113
— Stainless steel: CP5560-110
Seal repair kit: CP4518-JJ
Stainless steel piston kit: CP5040-42
Pad retention:
—Retaining screw: CP5100-116 × 1
—Retaining bolt: CP5100-125
Wear plates (anti-wear plates)
— CP5100-210 × 2
— CP5100-211 × 2
Piston knock-back prevention spring kit: CP6518-4LBLL
Bleed screw: CP3720-173
Hydraulic connection/header us manifold: CP5000-54
Disc details:
— Ø295 × 25.4 mm: CP5000-510 / CP5000-511CG8
— Ø280 × 25.4 mm: CP5000-312 / CP5000-313CG8
