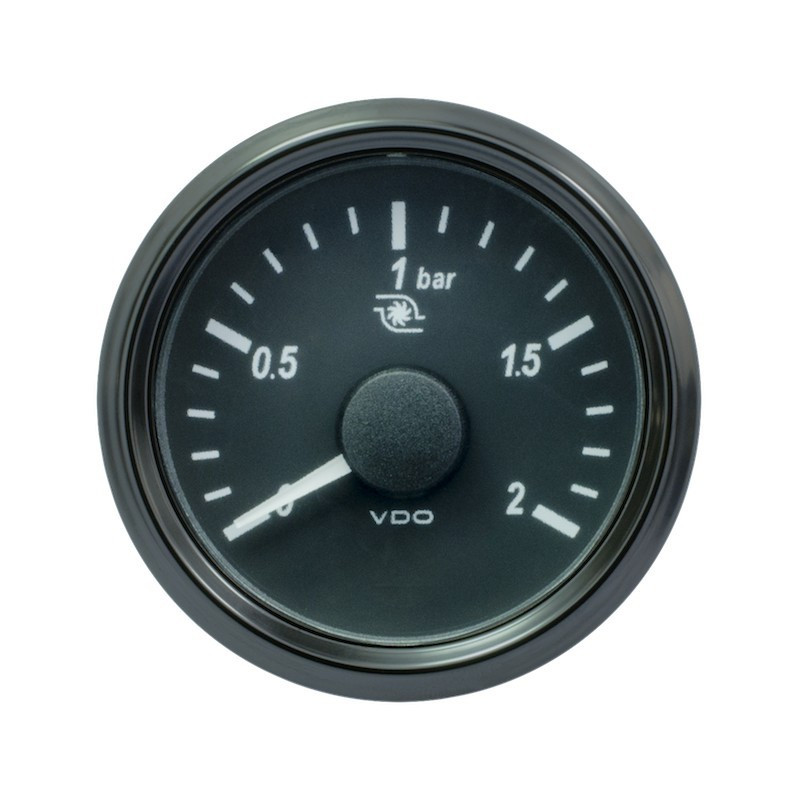

VDO SingleViu Turbo Pressure Gauge, Ø52 mm, 0 to 2 bar
Reference:
V-PT-3833490001
Supplier Ref.:
A2C3833490001
The VDO SingleViu turbo pressure gauge displays the pressure of the connected circuit on a black dial. Its 52 mm bolt hole diameter allows for integration into the dashboard. The display range is 0 to 2 bar.
The analog connection uses 10 to 184 ?. Verify compatibility with the signal or characteristic curve of the sensor being used before wiring. The SingleViu range also supports the CAN bus with the SAE J1939 protocol. The operating mode must match the installation.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: A2C3833490001
- Type: Turbo pressure gauge
- Range: SingleViu
- Bolt hole diameter: 52 mm
- Display range: 0 to 2 bar
- Operating voltage: 8 to 32 V DC
- Dial: Black
- Analog signal: 10 to 184 ?
- Communication: Analog or CAN SAE J1939
- Connector: 8-pin Molex
- Lighting: Programmable multicolor LED
- Connecting cable: Must be ordered separately
Compatibility and Mounting
Check the bolt hole diameter, the available space behind the dashboard, and the wiring diagram. Compatibility depends on the signal used; it cannot be determined solely based on the VDO brand.
-
Diameter in mm52
-
Background ColorBlack
-
Range in bar0/2
