VDO Cockpit Vision Fuel Level Gauge, Ø52 mm, 90 to 0.5?
Reference:
V-NE301-010-001
Supplier Ref.:
301-010-001K

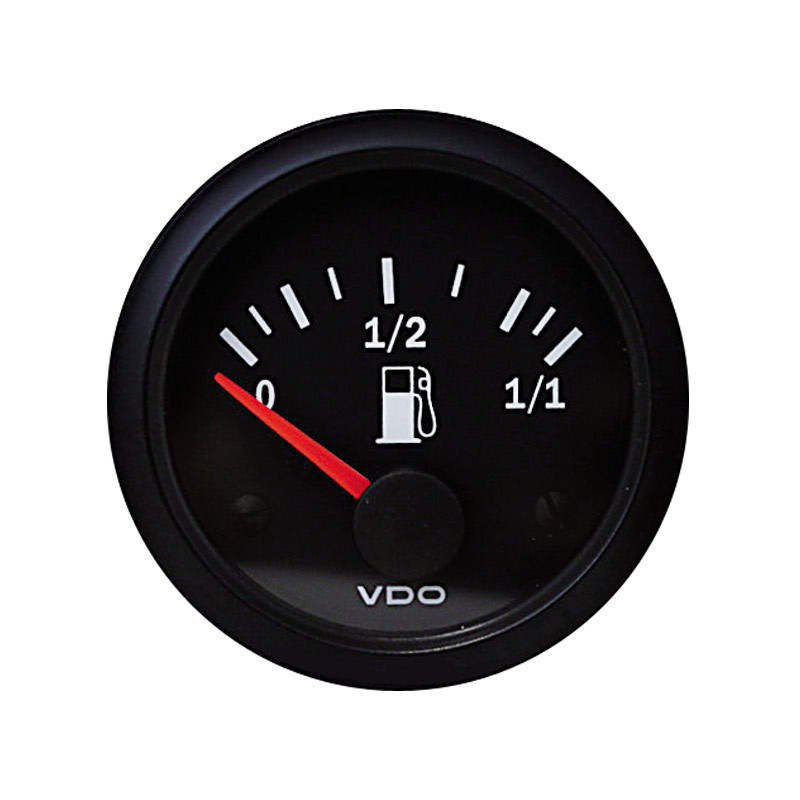

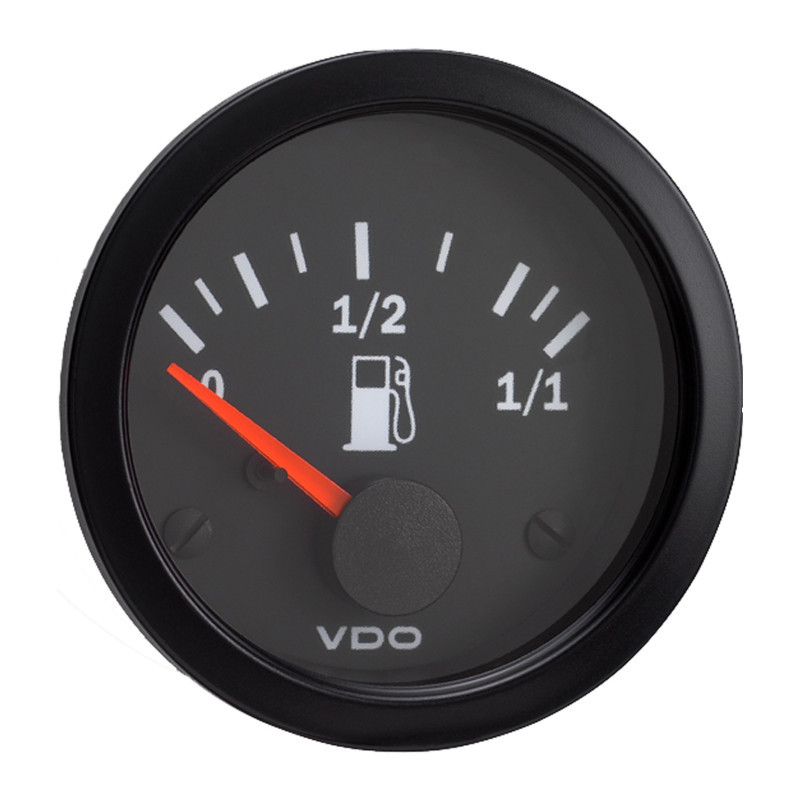

The VDO Cockpit Vision Fuel Level Gauge displays the fuel level in the tank on a black dial. Its 52 mm bolt hole diameter allows it to be integrated into the dashboard. The scale indicates the tank level from empty to full.
The analog connection uses 90 to 0.5 ? (empty to full). Verify that this matches the signal or curve of the sensor being used before wiring.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: 301-010-001K
- Type: Fuel Level Gauge
- Range: Cockpit Vision
- Bolt hole diameter: 52 mm
- Display range: Empty to 1/2 full
- Operating voltage: 11 to 16 V DC
- Dial: Black
- Analog signal: 90 to 0.5 ? (empty to full)
- Installation depth: 61 mm
Compatibility and Mounting
Check the bolt hole diameter, the available space behind the dashboard, and the wiring diagram. Compatibility depends on the signal used; it cannot be determined solely by the VDO brand. Check the sensor’s response curve, which must match the gauge’s input.
-
Diameter in mm52
-
Background ColorBlack
