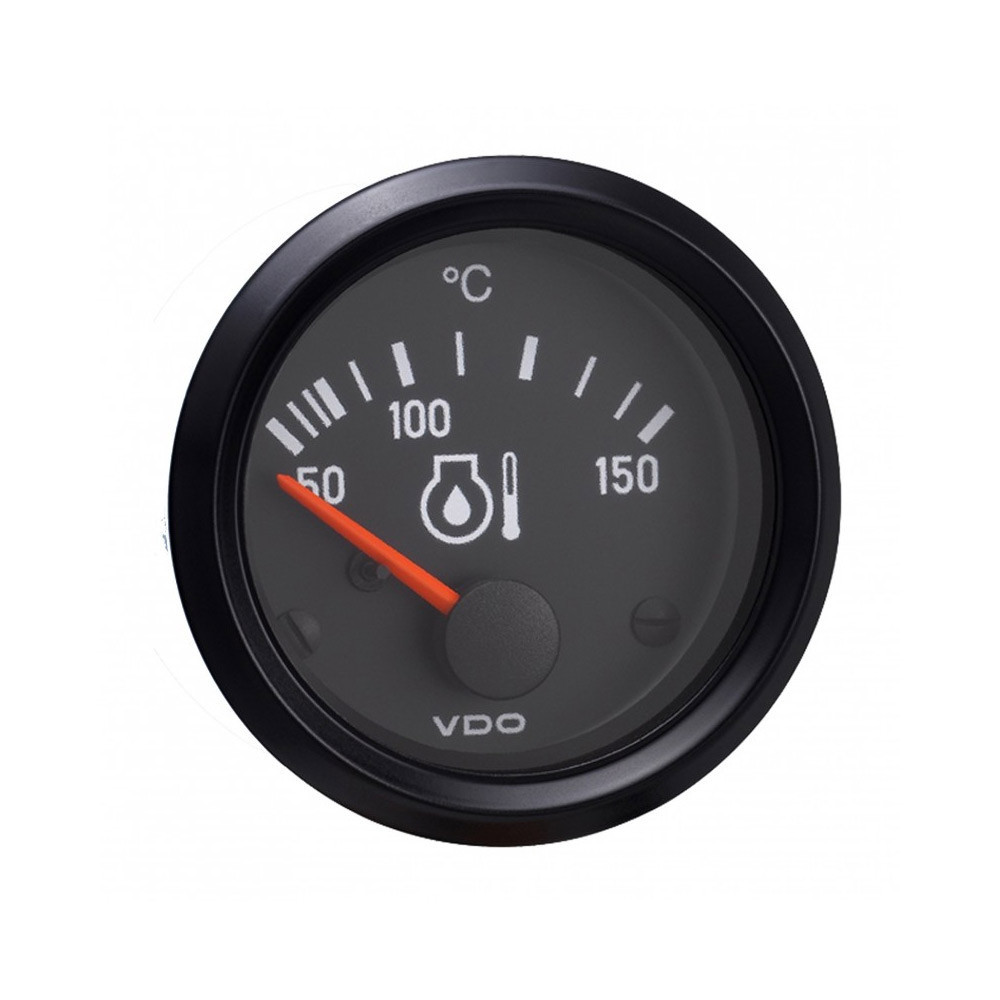

VDO Cockpit International Oil Temperature Gauge, Ø52 mm, 50 to 150 °C
Reference:
V-TH310-030-003
Supplier Ref.:
310-030-003G
The VDO Cockpit International Oil Temperature Gauge displays the engine oil temperature on a black dial. Its 52 mm bolt hole diameter allows for installation in the dashboard. The display range is 50 to 150 °C.
The analog connection uses 322.8 to 18.6 ?. Verify compatibility with the signal or characteristic curve of the sensor being used before wiring.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: 310-030-003G
- Type: Oil Temperature Gauge
- Range: Cockpit International
- Bolt hole diameter: 52 mm
- Display range: 50 to 150 °c
- Operating voltage: 11 to 16 V DC
- Dial: Black
- Analog signal: 322.8 to 18.6 ?
- Installation depth: 67.5 mm
Compatibility and Mounting
Check the bolt hole diameter, the available space behind the dashboard, and the wiring diagram. Compatibility depends on the signal used; it cannot be determined solely by the VDO brand. Check the sensor’s curve, which must match the gauge’s input.
-
Diameter in mm52
-
Background ColorBlack
-
Range in °C50/150
