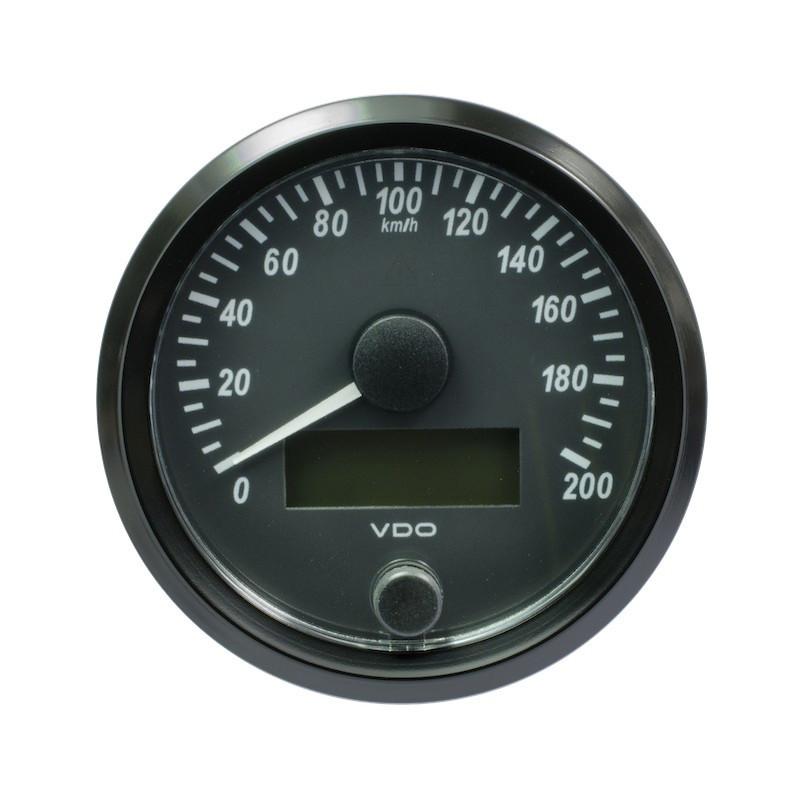

VDO SingleViu Revolutions per Minute Counter, Ø80 mm, 0 to 200 km/h

The VDO SingleViu revolutions per minute counter displays the vehicle’s speed on a black dial. Its 80-mm bolt hole diameter allows for integration into the dashboard. The display range is 0 to 200 km/h.

The analog connection uses a Tachograph Pulse Signal. Verify compatibility with the signal or waveform of the sensor being used before wiring. The SingleViu range also supports the CAN bus with the SAE J1939 protocol. The operating mode must match the installation.

Technical Specifications

• Brand: VDO
• Manufacturer Part Number: A2C3832940001
• Type: Revolutions per minute counter
• Range: SingleViu
• Bolt hole diameter: 80 mm
• Display range: 0 to 200 km/h
• Operating voltage: 8 to 32 V DC
• Dial: Black
• Analog signal: Tachograph pulse signal
• Communication: Analog or CAN SAE J1939
• Connector: 8-pin Molex and complementary connection depending on functions
• Lighting: Programmable multicolor LED
• Connecting cable: Must be ordered separately

Compatibility and Mounting

Check the bolt hole diameter, the available space behind the dashboard, and the wiring diagram. Compatibility depends on the signal used; it cannot be determined solely based on the VDO brand.
