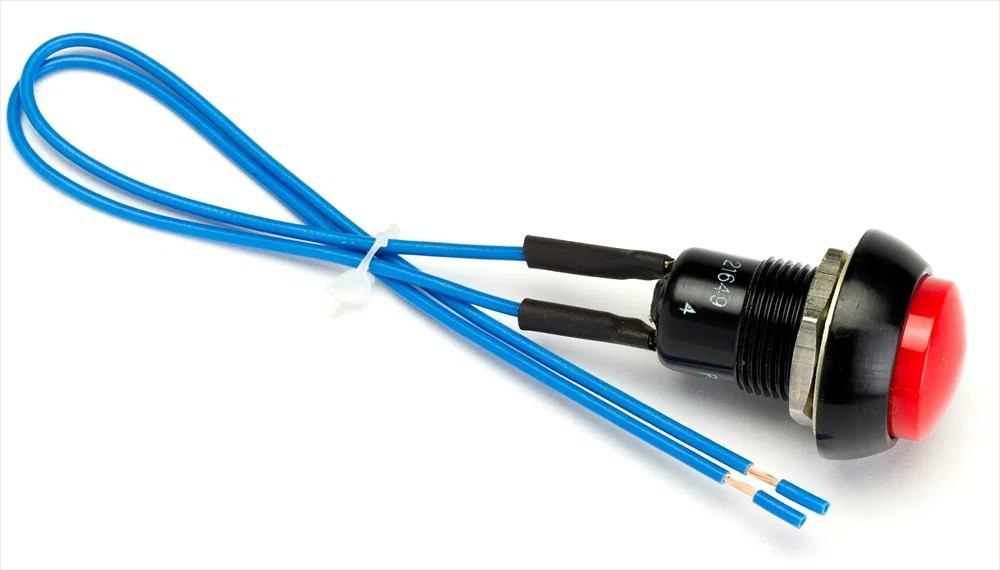

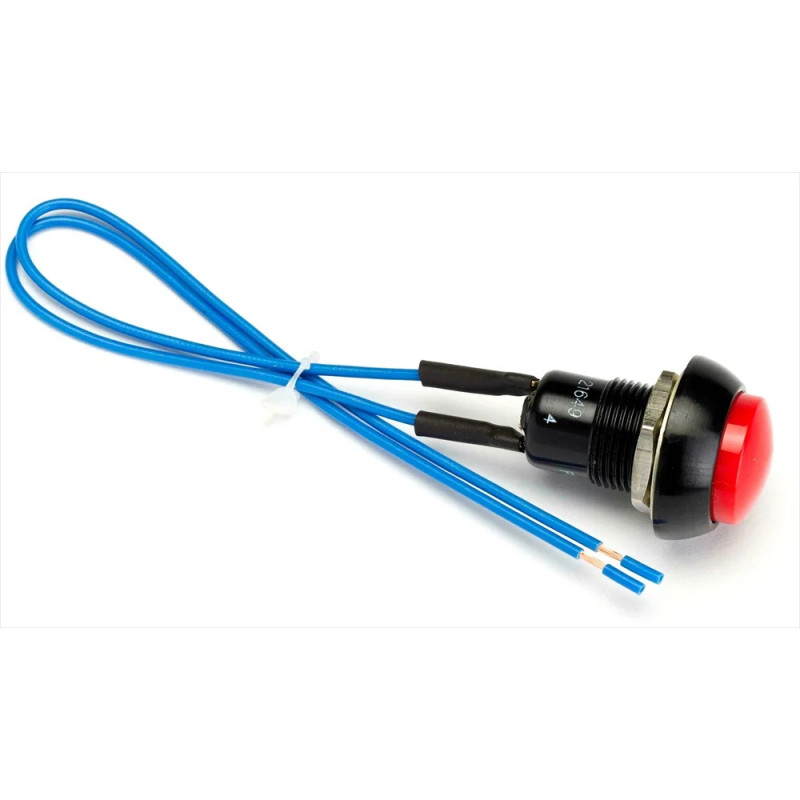

Cartek Red External Stop Push Button for Electronic Cut-Out Device

The Cartek red external stop pushbutton allows the electronics circuit breaker to be triggered from outside the vehicle. It serves as a remote control for installations intended for rally, track racing, or other competitive disciplines.

Part number CK-EP-02 operates on a break-contact pulse principle: pressure interrupts the control circuit and triggers the shutdown of the Cartek system. The button returns to its rest position when released. It provides only the shutdown command and does not allow the system to be restarted.

Technical Specifications

• Brand: Cartek
• Manufacturer Part Number: CK-EP-02
• Type: External stop pushbutton
• Color: red
• Function: control for stopping the electronic cut-out device
• Operation: momentary, with return to rest position
• Contact: normally closed, opens when pressed
• Protection: waterproof button for outdoor use

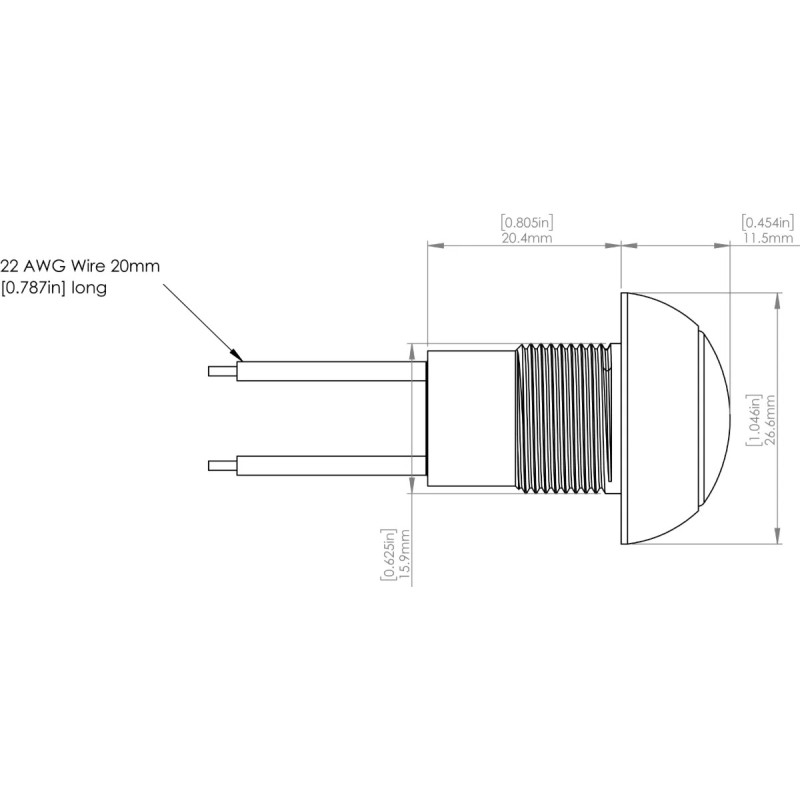

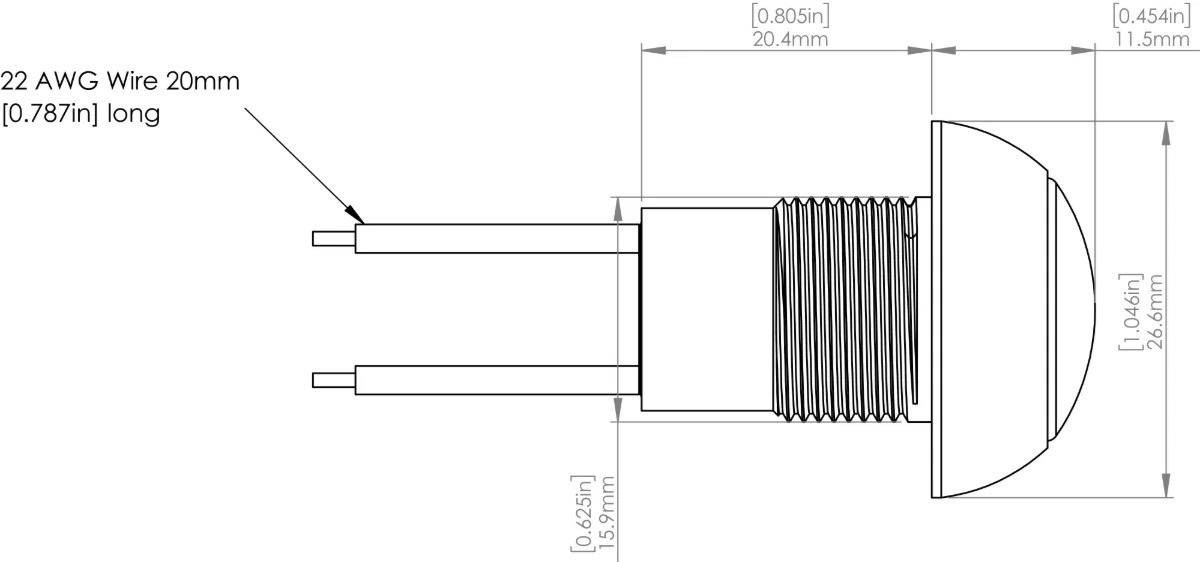

• Outside diameter of the head: 26.6 mm
• Mounting body diameter: 15.9 mm
• Body length below the head: 20.4 mm
• Length of threaded portion: 11.5 mm
• Wiring: 22 AWG, 20 mm length as per manufacturer’s specifications

Compatibility and Installation

This button is designed for external control of Cartek electronic cut-out devices.

Install it in an area accessible from outside the vehicle, then connect its wires to the control circuit according to the instructions for the cut-out device being used. The sizes of the mounting body allow for proper installation on the mounting bracket.

The button controls the electronic module: it does not connect directly to the battery’s power cable.

Key Features

• Shut-off control accessible from outside the vehicle.
• Momentary activation with a single pressure.
• Waterproof button suitable for outdoor installation.
• Red color to identify the stop control.
