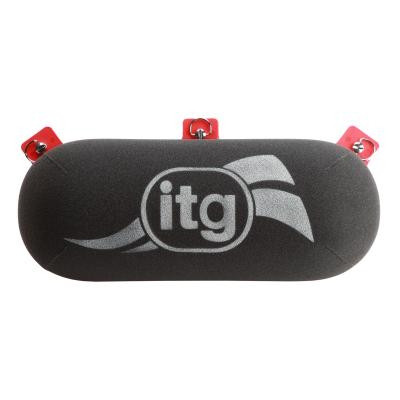

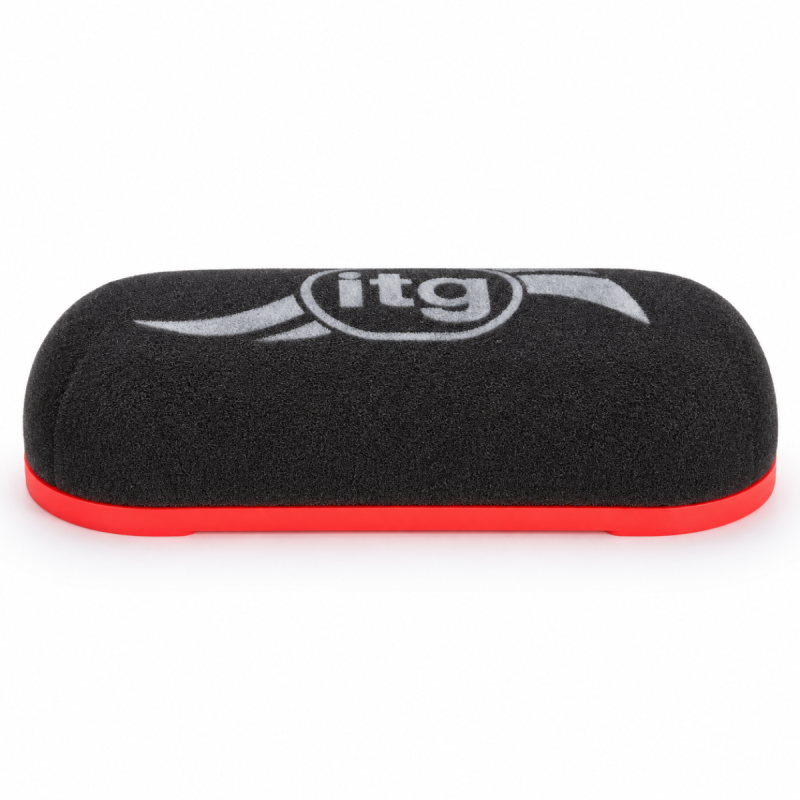

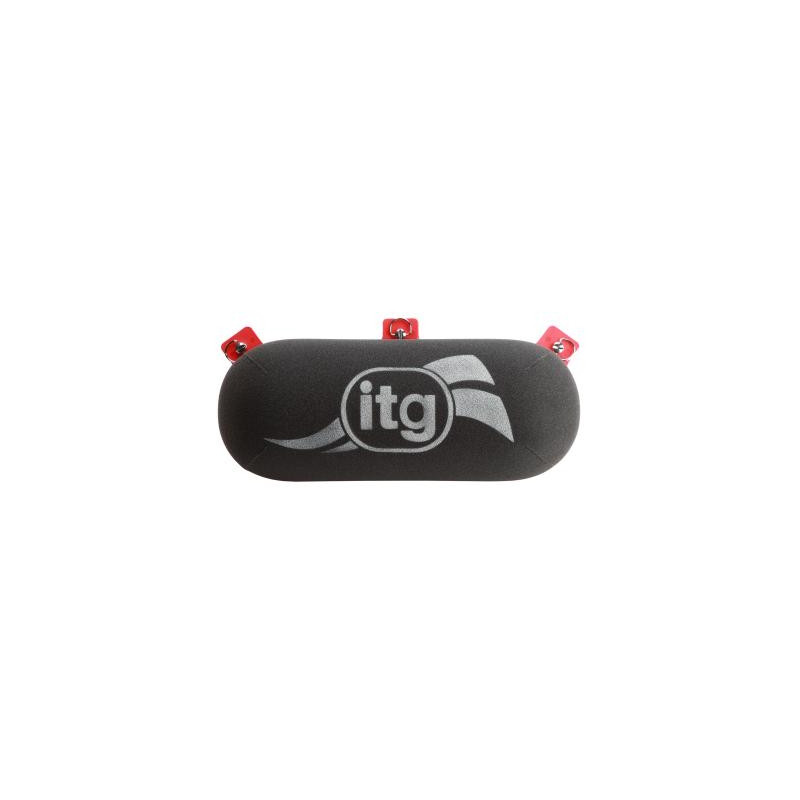

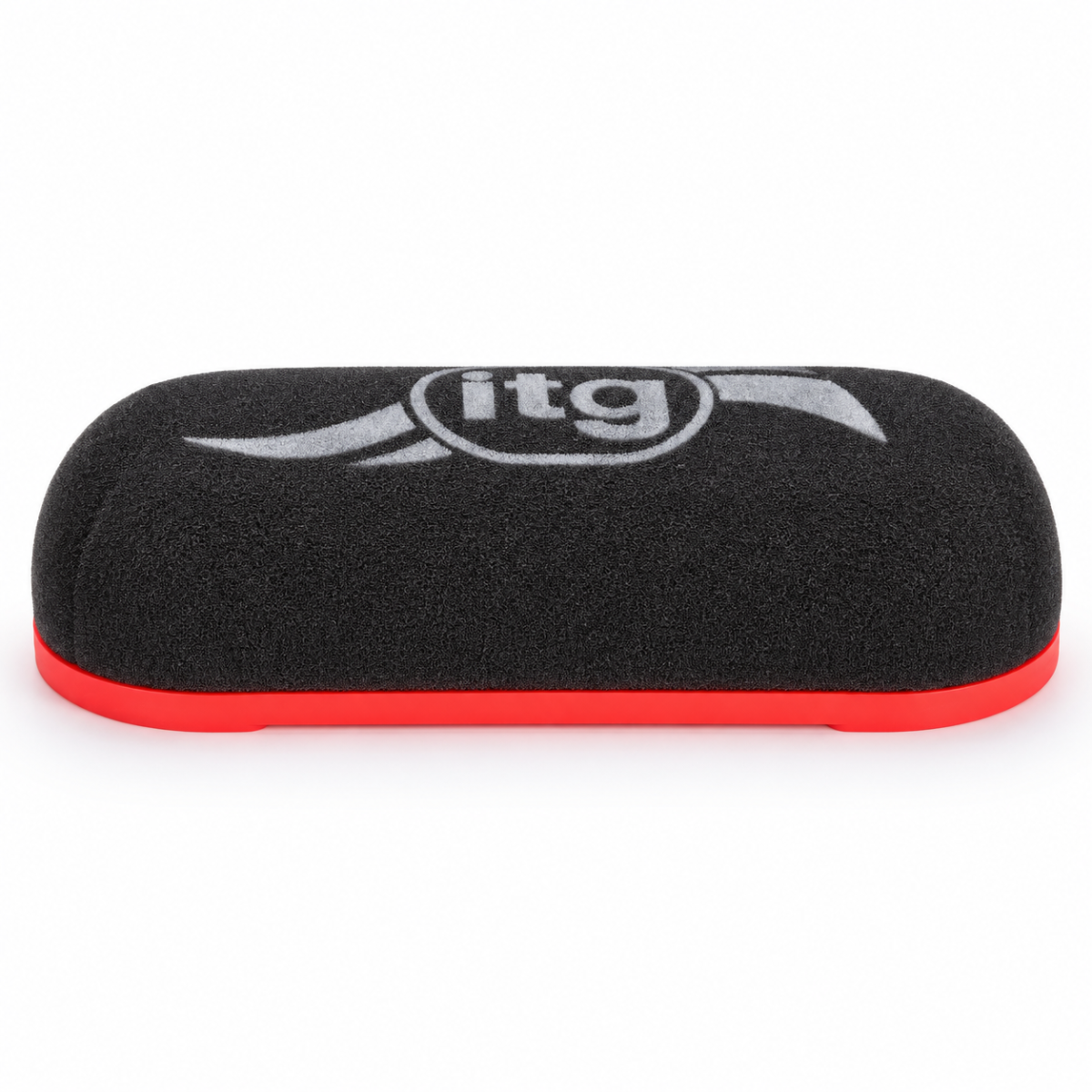

ITG Megaflow JC50 - 25 mm Domed Air Filter

The ITG Megaflow JC50 Domed Air Filter is designed for intake systems equipped with a compatible air cleaner baseplate from the JC50 range. Its 436 x 148 mm size allows it to cover multiple air intakes or funnels with a single air filter element.

This JC50/S/25 version features a domed “Sausage” profile, an internal height of 25 mm, and an external height of 50 mm. This low profile must be compatible with the sizes of the intake system.

Before mounting, check the clearance between any intake horns or trumpets and the inner surface of the filter, as well as the available space around it. The JC50 base must match the intake being used and its mounting points.

The foam filter element, held in place by a red frame, is washable and reusable. Maintenance involves cleaning and re-oiling with products suitable for foam filters. Check the oiling before first use and follow ITG’s recommendations.

Technical Specifications of the ITG Megaflow JC50 Domed Air Filter

• Brand: ITG
• Range: Megaflow
• Type: foam air filter
• Shape: domed, “Sausage” version
• Length: 436 mm
• Width: 148 mm
• External height: 50 mm
• Internal height: 25 mm
• Frame color: red
• Mounting: on a compatible base from the JC50 range
• Maintenance: washable and reusable
• Oiling: required before use
• Manufacturer part number: JC50/S/25

Key features of the ITG Megaflow JC50 domed air filter

• 436 x 148 mm size fits multiple intake ports
• “Sausage” domed profile
• 50 mm external height for mountings with limited space
• Mounting on a JC50-compatible base
• Washable and reusable foam filter element
