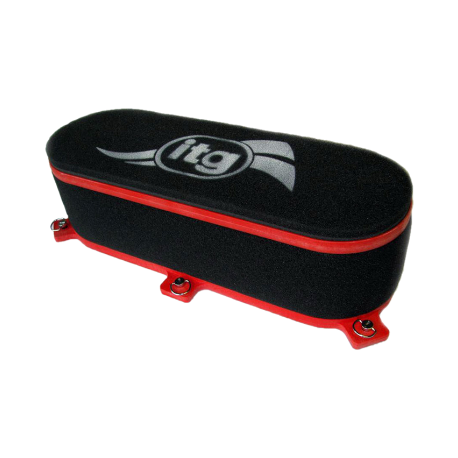

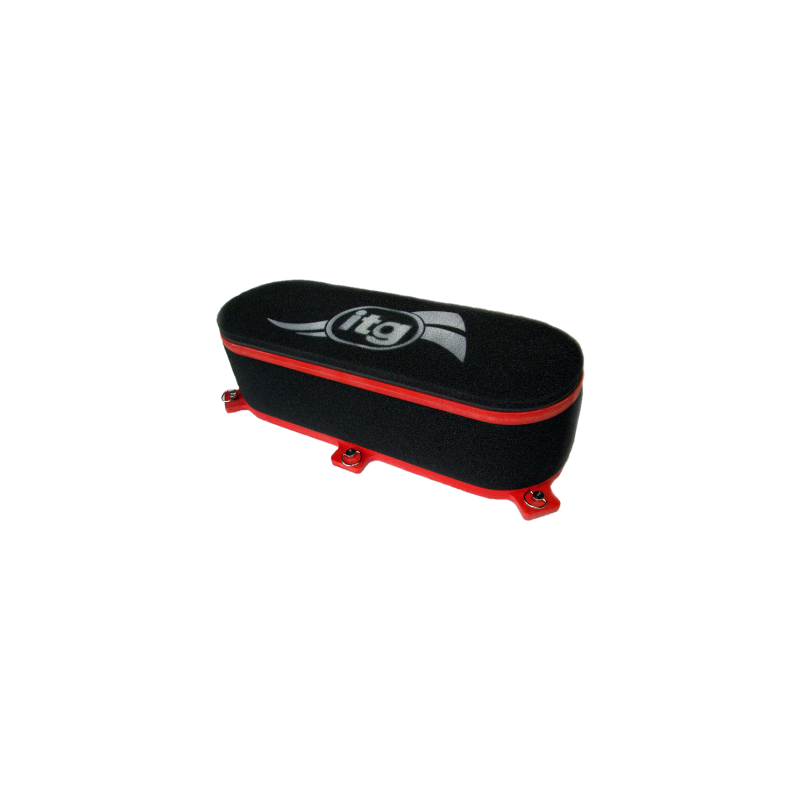

The ITG Megaflow JC40 air filter is a foam main filter designed for small twin-carburetor setups. This straight-sided version offers an internal height of 65 mm and pairs with an ITG JC40 series base plate adapted to the carburetor being used.
The JC40/65 measures 379 mm long by 142 mm wide. Its internal height of 65 mm corresponds to the available clearance inside the filter housing, particularly for intake horns or trumpets. Its external height of 90 mm helps control the filter’s overall footprint in the engine compartment.
The Megaflow system is based on a modular design: the JC40 filter mounts onto a base from the same JC40 series, which should be selected based on the carburetor, its bore, and its mounting center distance. This configuration allows you to choose the filter and the corresponding base separately for your installation.
Technical Specifications of the ITG Megaflow JC40 Air Filter
- Manufacturer Part Number: JC40/65
- Range: Megaflow
- Series: JC40
- Type: foam primary air filter
- Shape: straight sides
- Application: small twin carburetors
- Length: 379 mm
- Width: 142 mm
- External height: 90 mm
- Internal height: 65 mm
- Compatible base: ITG JC40 series
Key Features of the ITG Megaflow JC40 Air Filter
- JC40 size designed for small twin-carburetor mountings
- 65 mm internal height to accommodate intake horns or intake horns
- Separate internal and external sizes for precise space verification before mounting
- Straight-side design
- Compatible with various ITG JC40 series mounting bases
