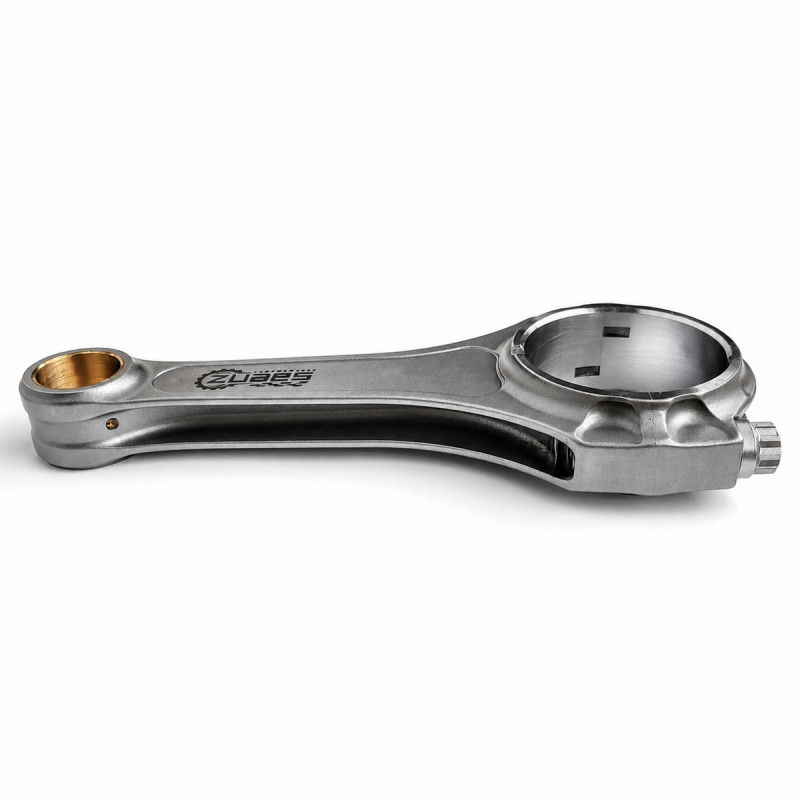

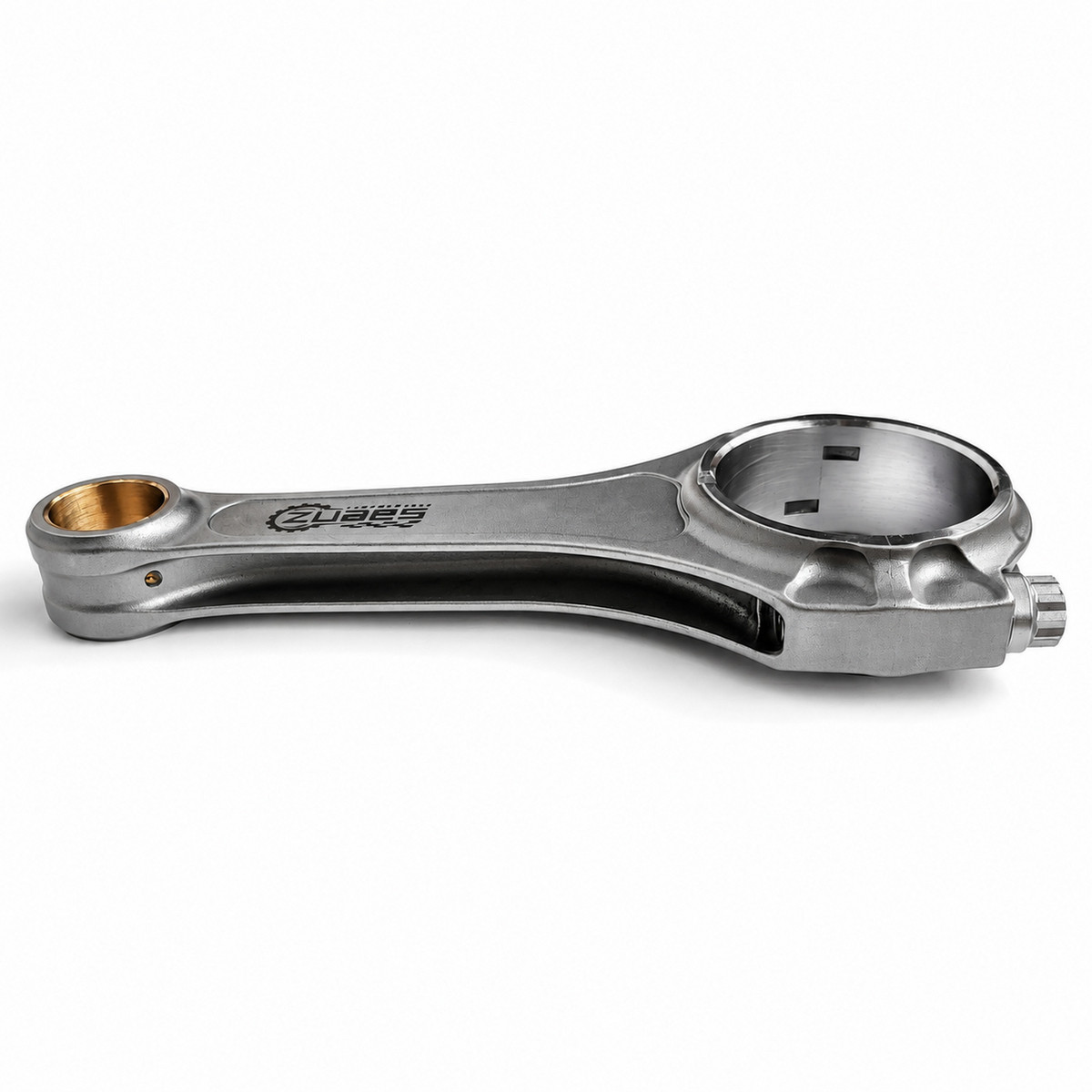

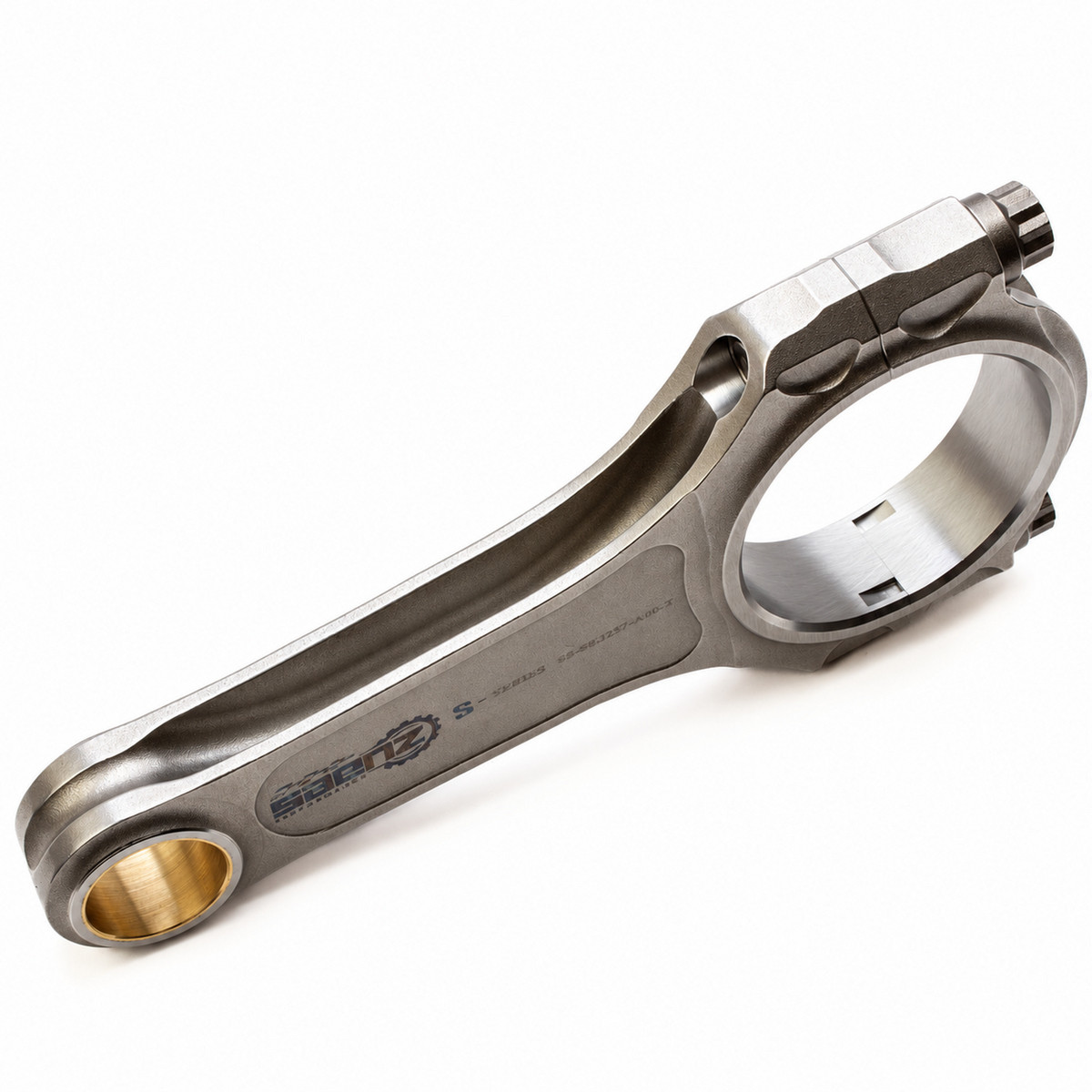

Saenz H-Shaped Connecting Rod for Peugeot 205 GTI 1.6 Group A

The Saenz H-shaped connecting rod for the Peugeot 205 GTI 1.6 Group A is designed for engine tuning for competition. It connects the piston to the crankshaft within the engine’s moving assembly.

Made of 4340 steel, this connecting rod has a center-to-center length of 150.50 mm and a gudgeon pin diameter of 20 mm. It is equipped with 3/8" ARP L19 fasteners.

Sold individually. Available by special order, with an estimated lead time of approximately 6 to 8 weeks.

Technical Specifications

• Brand: Saenz
• Supplier Part Number: CM-FLB21PEUGEOT
• Application: Peugeot 205 GTI 1.6 Group A
• Profile: H-shaped
• Center-to-center length: 150.50 mm
• Gudgeon pin diameter: 20.00 mm
• Connecting rod small end width, piston side: 24.30 mm
• Conrod head width, crankshaft side: 24.30 mm
• Material: 4340 steel
• Fasteners: 3/8"ARP L19
• Packaging: sold individually

Mounting

Before assembly, verify the connecting rod sizes and ensure they match the pistons, gudgeon pins, bearings, and crankshaft being used. Follow the specific tightening specifications for the fasteners provided.
