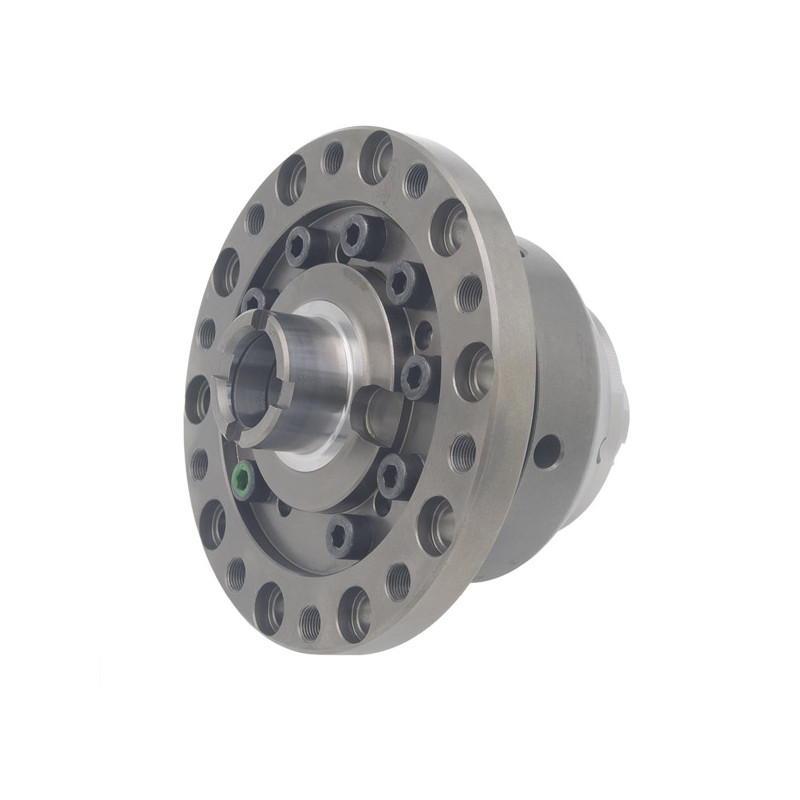

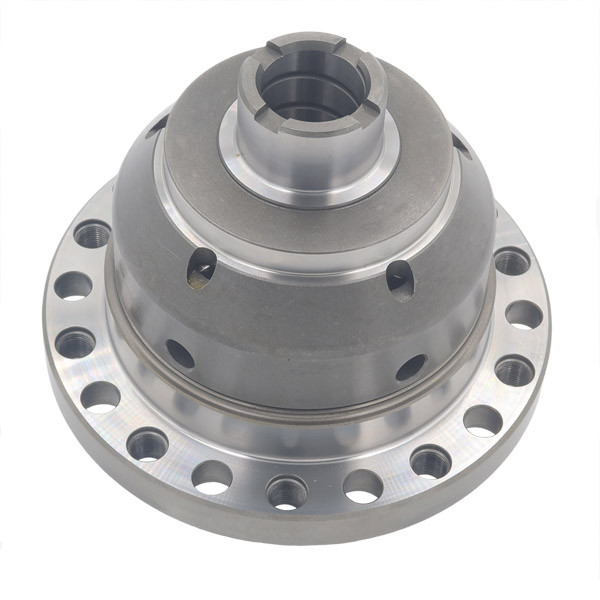

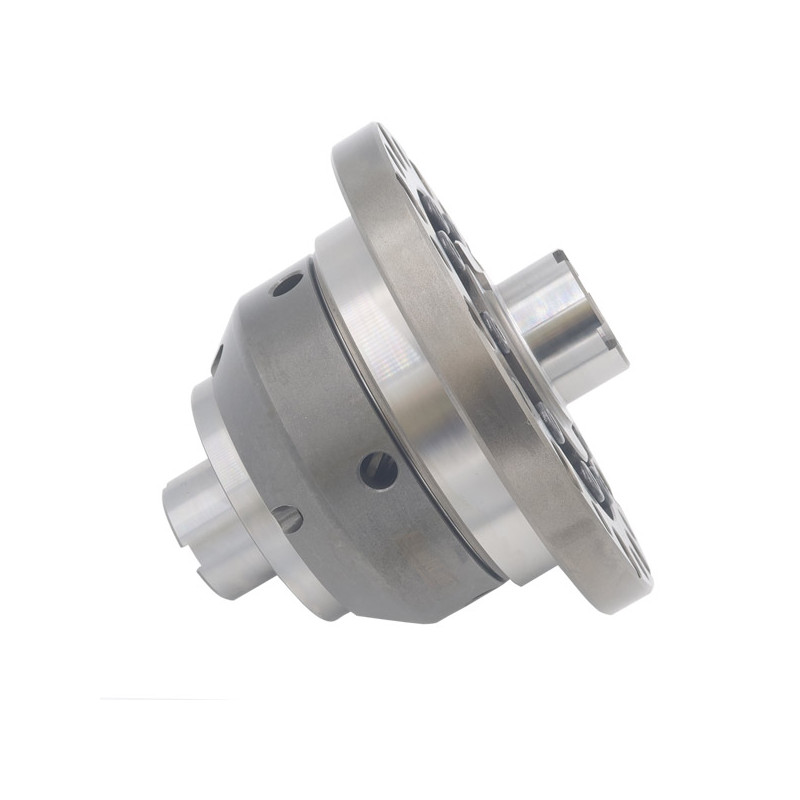

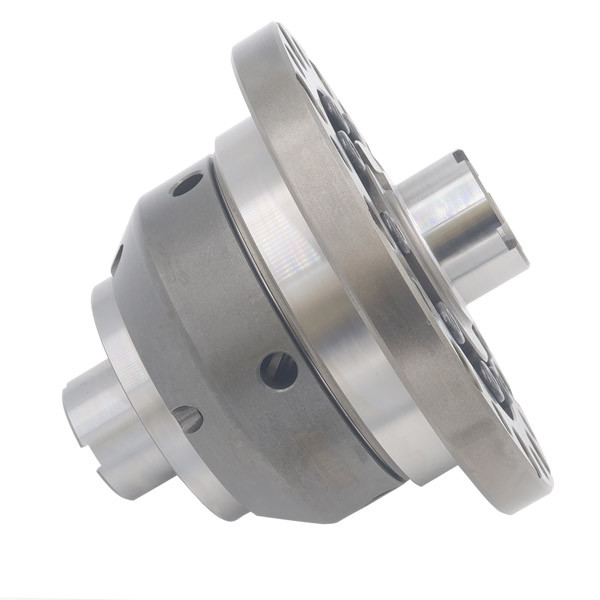

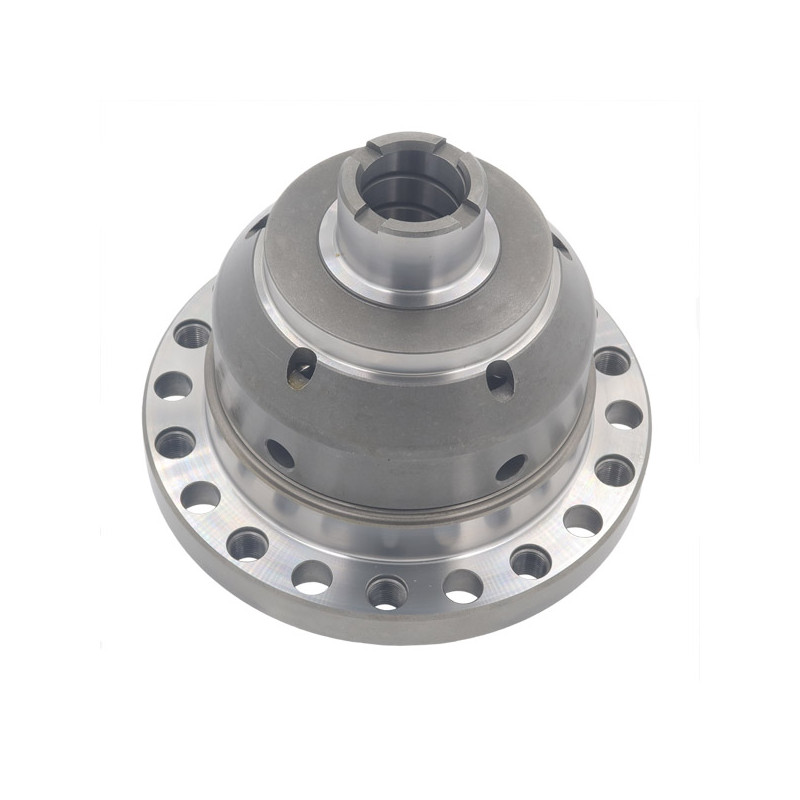

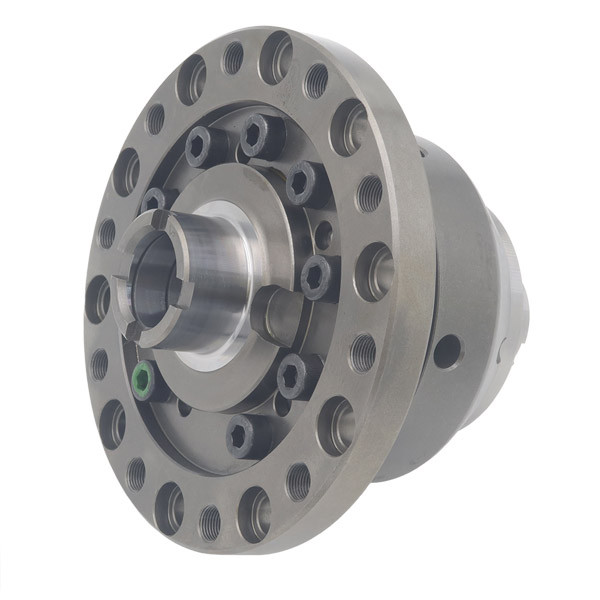

Blackline Limited Slip Differential - Honda Civic Type R EP3 - FN2 - Integra Type R DC5 - 4WD Conversion

The Blackline limited slip differential (LSD)for the Honda Civic Type R EP3, FN2, and Integra Type R DC5 with 4WD conversion*, is designed for mounting configurations using a Honda K20/K24 engine paired with the Honda CR-V’s all-wheel drive system.

Its helical gear design allows the limited slip differential to distribute torque based on available traction. As torque increases, the gears exert pressure against the differential housing, generating the internal friction necessary for this torque distribution. The system thus helps to more effectively utilize available traction, particularly during hard acceleration and in low-traction conditions.

Under light loads, the helical limited slip differential maintains smooth, progressive, and quiet operation. This technology does not rely on friction discs and allows for an immediate and progressive reaction to changes in traction.

The Blackline limited slip differential uses a parallel-axis helical gear architecture optimized to distribute forces. Its 5:1 torque split means that when one of the wheels loses traction, the wheel with the most traction can receive up to five times the torque transmitted to the spinning wheel.

As with any helical-gear limited slip differential, a minimum amount of resistance must remain on the wheel with the least grip to allow torque transfer. This technology also works particularly well in conjunction with modern ABS systems.

The Blackline HLF090A limited slip differential is specifically designed for all-wheel drive conversion projects on Honda vehicles equipped with K20/K24 engines, notably the Civic Type R EP3, FN2, FD2, and Integra Type R DC5, using the all-wheel drive components from the Honda CR-V. This is therefore a specific aftermarket application and not a simple replacement for the vehicle’s original differential.

Technical Specifications of the Blackline Limited Slip Differential for Honda Civic Type R and Integra Type R 4WD Conversions

Manufacturer Part Number: HLF090A
Quaife application code: QDF21U
Type: Helical-gear limited slip differential
Honda Civic compatibility: Civic Type R EP3
Honda Civic Compatibility: Civic Type R FN2
Compatible with Honda Civic: Civic Type R FD2
Honda Integra Compatibility: Integra Type R DC5
Applicable engines: K20/K24-compatible applications
Transmission: Conversion to all-wheel drive using the Honda CR-V transmission line
Torque split ratio: 5:1
Housing and gear material: High-resistance 8620 steel
Mounting: Specific application for all-wheel drive conversion

Key features of the Blackline limited slip differential for Honda K20/K24 all-wheel drive conversions

• Designed for Honda K20/K24 projects with all-wheel drive conversion.
• Torque split based on available traction.
• Transmits more torque to the wheel with the best traction.
• Immediate and progressive reaction to changes in traction.
• Smooth, progressive, and quiet operation.
• No friction discs for reduced maintenance requirements.
• Housing and gears made of high-resistance 8620 steel.
