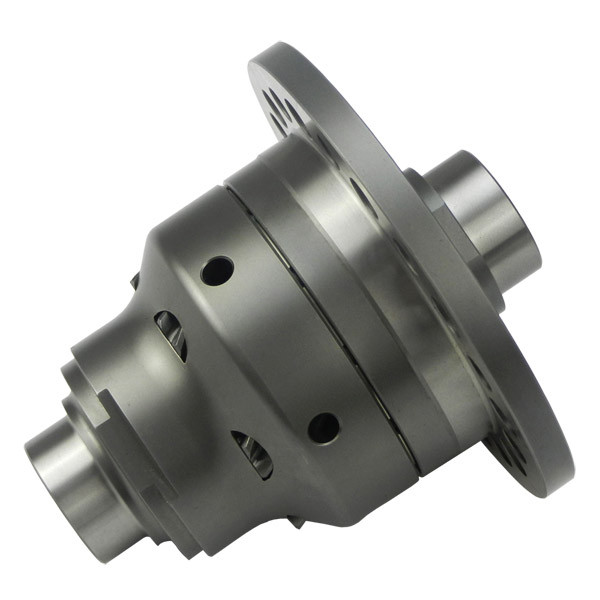

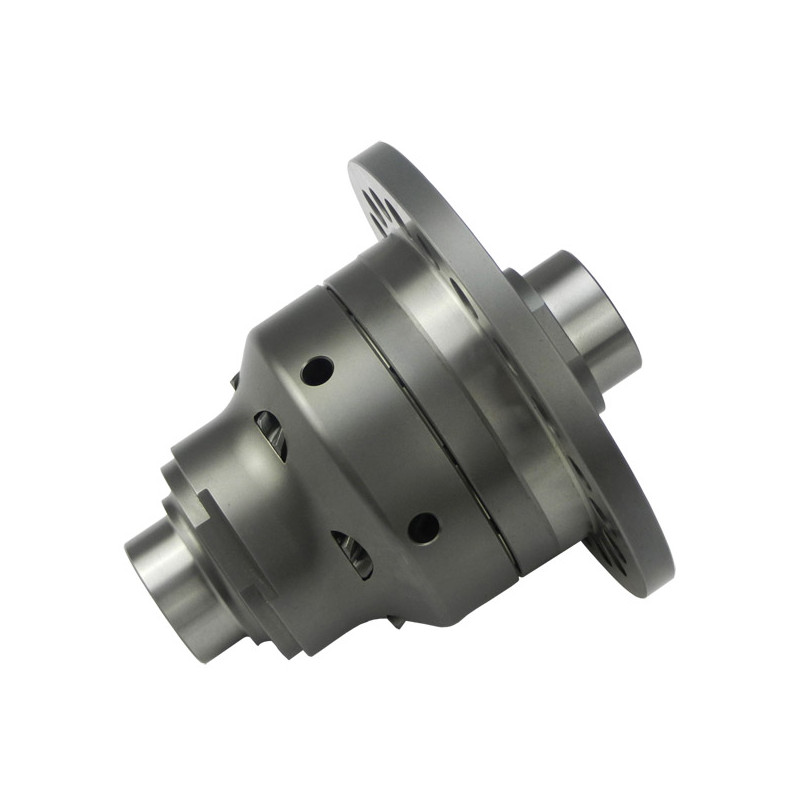

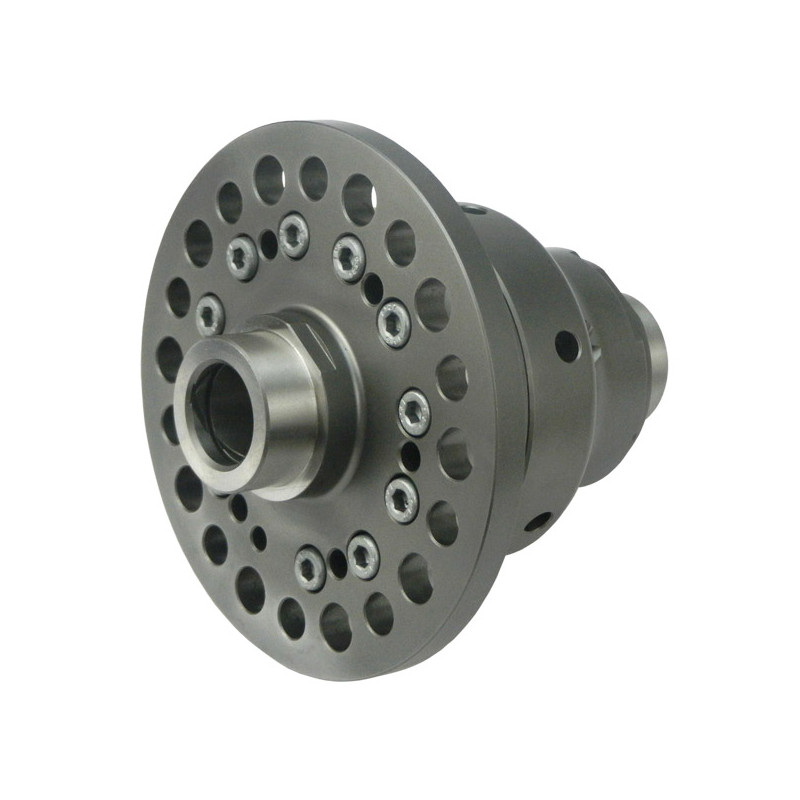

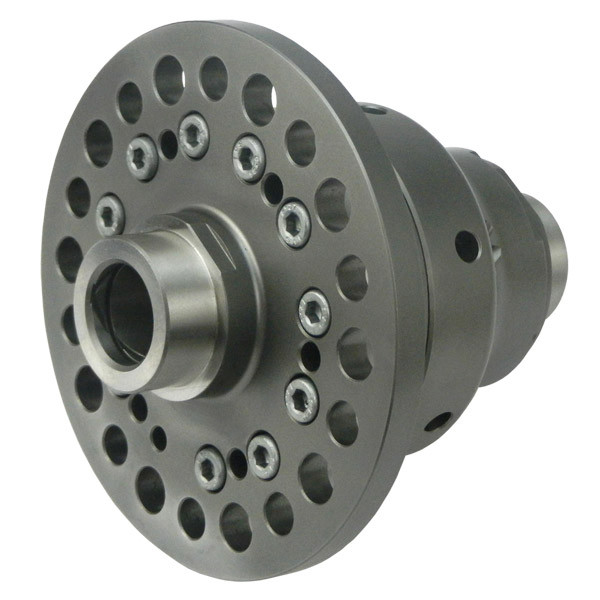

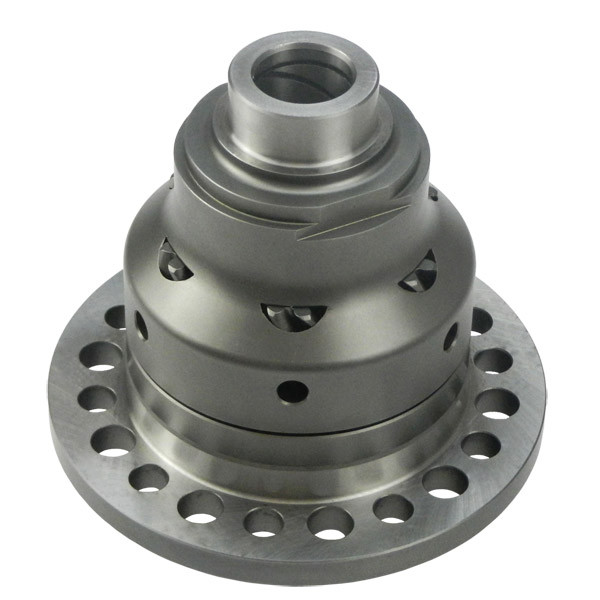

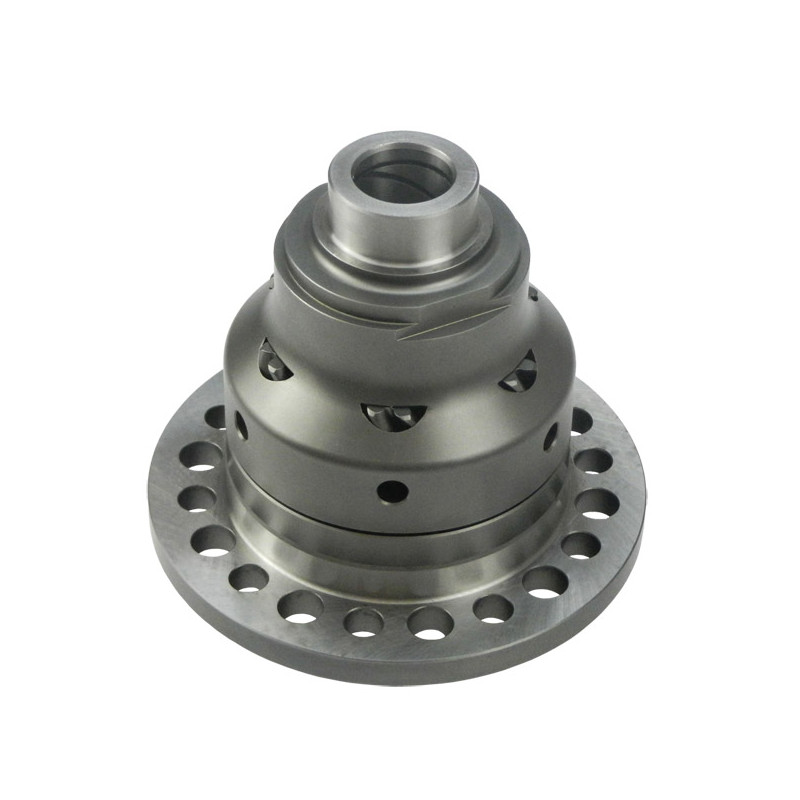

Blackline Limited Slip Differential - BMW Axle 188 E28 - E30 - E36 - 35.50 mm

The Blackline limited slip differential for BMW E28, E30, and E36 models with 188 axle, also known as an LSD (limited slip differential), improves traction by distributing torque between the two-wheel drive drive wheels based on available grip.

Its helical gear design allows more torque to be transmitted to the wheel with the best traction. As torque increases, the gears exert pressure against the differential housing and generate the internal friction necessary for this torque distribution. The system thus makes better use of available traction, particularly during hard acceleration and when exiting corners.

Under light loads, the helical limited slip differential maintains smooth, progressive, and quiet operation. The wheels can continue to rotate at different speeds when necessary, particularly when cornering. This feature enhances traction during spirited driving while maintaining handling suitable for on-road use.

The Blackline limited slip differential uses a parallel-axis helical gear architecture. Its 5:1 torque split means that the wheel with the best traction can receive up to five times the torque transmitted to the wheel that is slipping.

As with any helical-gear limited slip differential, a minimum amount of resistance must remain on the wheel with the least grip to allow torque transfer. It is therefore most effective when both wheels maintain a minimum level of traction.

The Blackline HLF026 limited slip differential is designed for various BMW E28, E30, and E36 models equipped with a BMW 188 rear axle. The “Spindle to CWP Mounting Face” size is 35.50 mm, which is the distance between the differential shaft and the ring gear mounting face. This size must be verified before ordering to ensure the correct differential is selected for the axle configuration.

Technical Specifications of the Blackline Limited Slip Differential for BMW E28, E30, and E36 Models with 188 Rear Axle

Manufacturer Part Number: HLF026
Quaife application code: QDF3N
Type: Helical-gear limited slip differential
Vehicle compatibility: BMW E28 528i
Vehicle compatibility: BMW E30 325i
Vehicle compatibility: BMW E30 325ix with factory limited slip differential
Vehicle compatibility: BMW E36 323i with mechanical transmission
Vehicle compatibility: BMW E36 328i with mechanical transmission
Vehicle compatibility: BMW E36 323ti with mechanical transmission
Vehicle compatibility: BMW E36 325tds with mechanical transmission
Type of axle: BMW 188

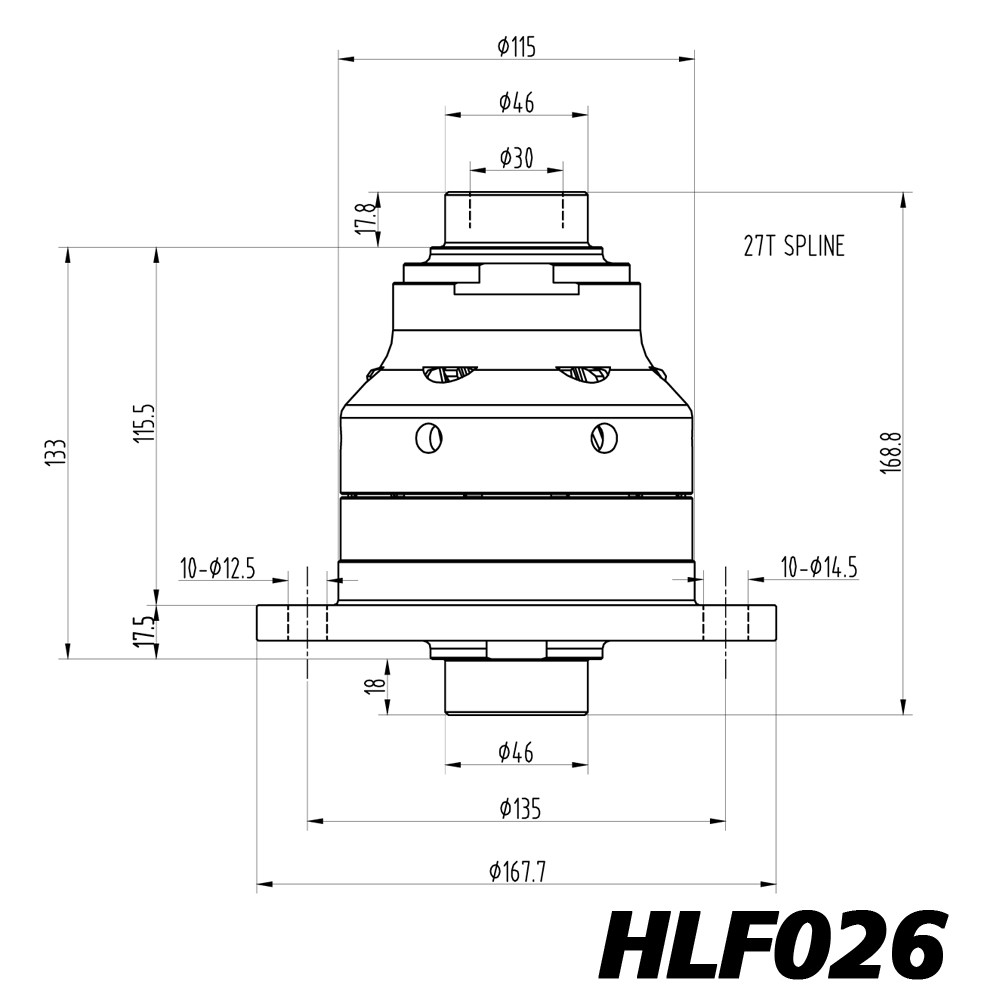

Distance between the differential shaft and the ring gear mounting flank: 35.50 mm
Torque split ratio: 5:1
Housing and gear material: High-resistance 8620 steel
Mounting: Replaces the original differential on compatible vehicles

Key features of the Blackline limited slip differential for BMW with 188 axle

• Immediate and progressive reaction to changes in traction.
• Transmits more torque to the wheel with the best traction.
• Smooth, progressive, and quiet operation.
• 5:1 torque split ratio.
• No friction discs for reduced maintenance requirements.
• Easily controllable power delivery, especially during spirited driving and drifting.
• Housing and gears made of high-resistance 8620 steel.
• Mounts as a replacement for the stock differential on compatible vehicles.
