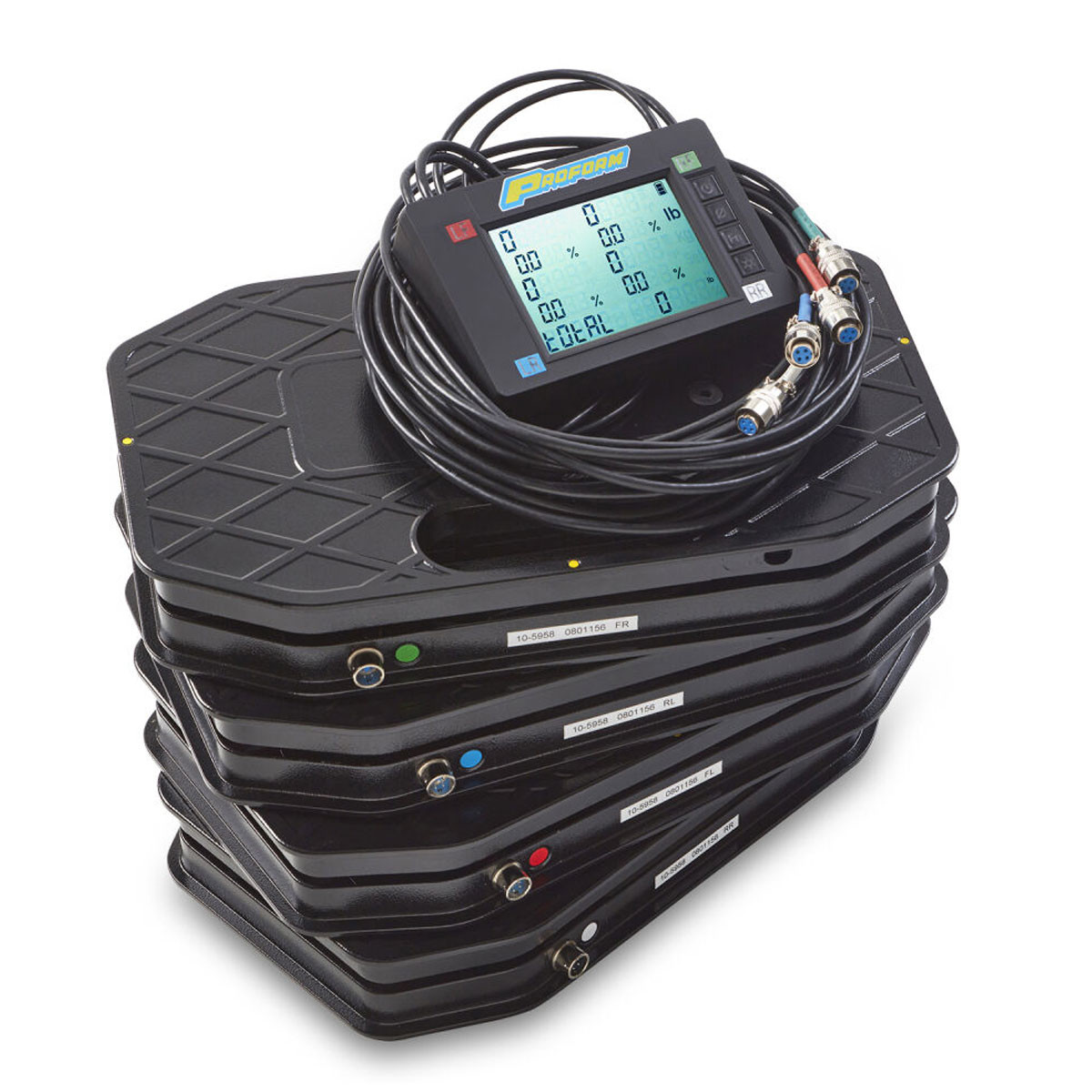

Proform wired scale (capacity 2268 kg) with case

Quickly and efficiently adjust your vehicle's weight distribution with this Proform wired (per-wheel) scale.

This 4-pan system allows you to precisely measure the transverse, lateral, and front-to-rear weight distribution, in addition to the standard weight and percentage for each wheel, as well as the vehicle's total weight.

The set supports up to 2,268 kg in total, or 567 kg per pad.

The scale offers an accuracy of 1/10 of 1%.

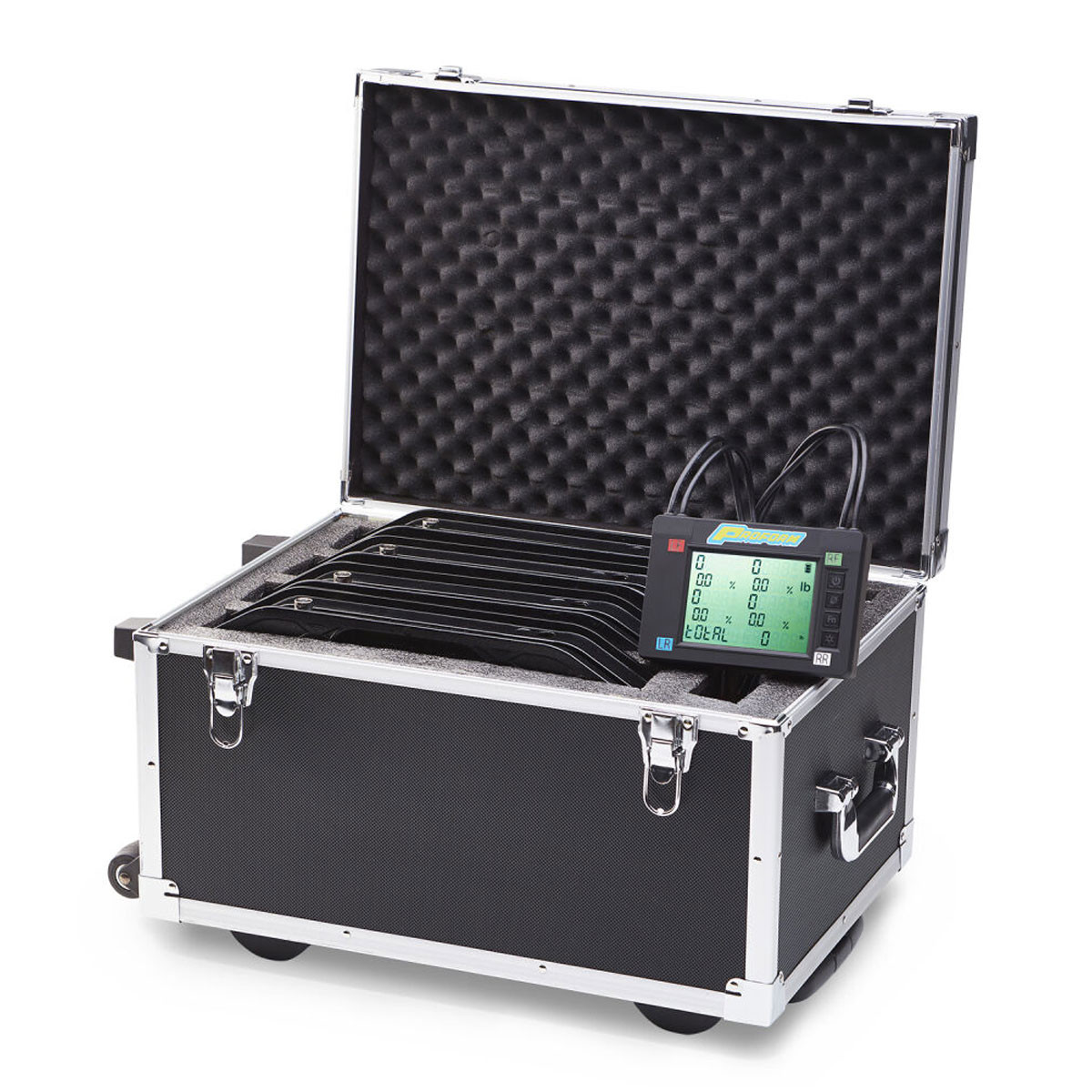

This scale comes in a hard-shell case with wheels, making it easy to transport and safe to store. The control unit features a clear LCD display with oversized characters for easy and efficient monitoring, and PC software is available for data analysis via a wired connection.

Specifications:

Type: Wheel weight scale

Number of pads: 4

Max capacity per pad: 567 kg

Total capacity: 2268 kg

Pad dimensions: 368 x 241 mm

Pad thickness: 64 mm

Pad-to-control unit communication: Wired

Cable length: 6 m (4x)

Accuracy: 1/10 of 1%

PC connection: Wired via cable to control unit

Power supply for unit + 4 platforms: AA batteries (included)

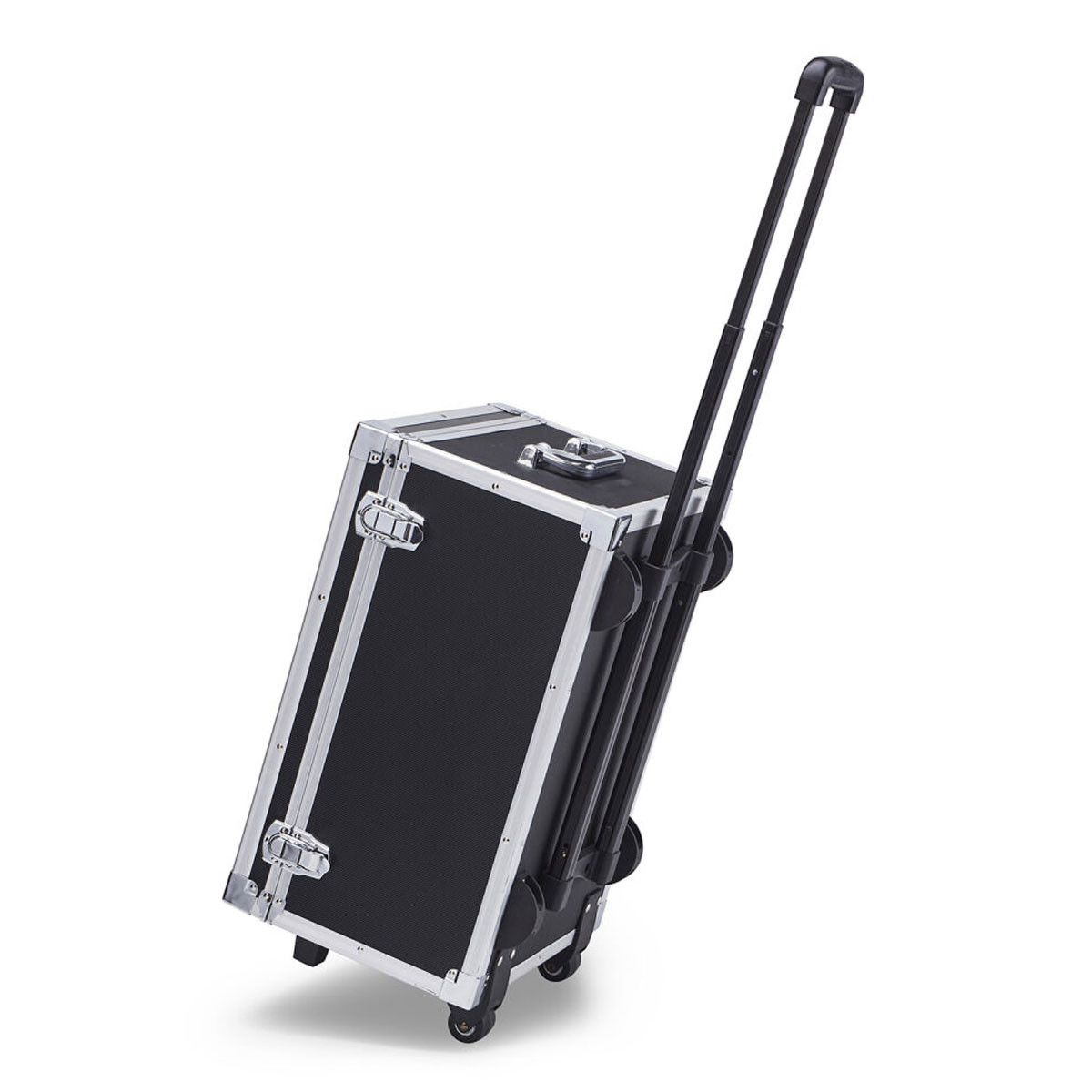

Hard-shell case with wheels and foam lining

Usage instructions:

• Use only on a perfectly flat and stable surface.
• Do not use on asphalt/tar
• Do not lower the vehicle from a lift directly onto the platforms (risk of stress on the sensors).
• Do not brake on the platforms: risk of damage to the platforms or sensors.
• If a pad shows a deviation of ≈ 25%, a sensor in that platform is likely damaged
