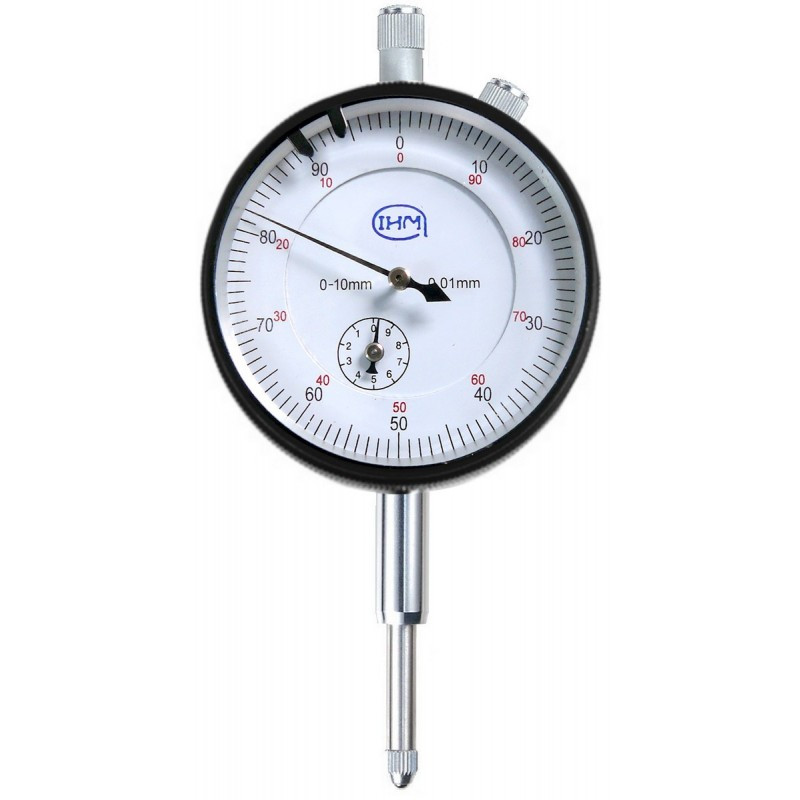

Metric Dial Indicator

Mechanical dial comparator 10 mm to 1/100 mm Ø58 mm with rear mounting bracket.

It measures using a rod and radial retractable touch.

It has a totaliser that indicates the number of turns made by the needle, where each turn of the needle represents a stroke of 1 millimetre.

The comparator allows relative measurement in relation to a reference point, for measuring parallelism or circularity.

Stroke: 10 mm

Accuracy: ± 0.02 mm

Resolution: 1/100 mm

Dial Ø: 58 mm

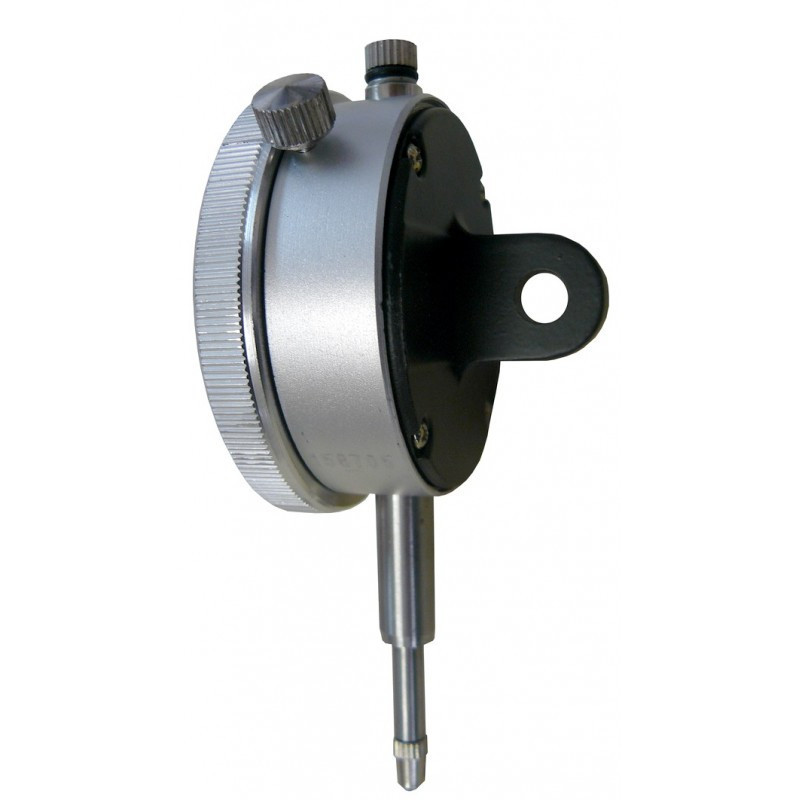

With bracket on the back

Weight: 230 g
