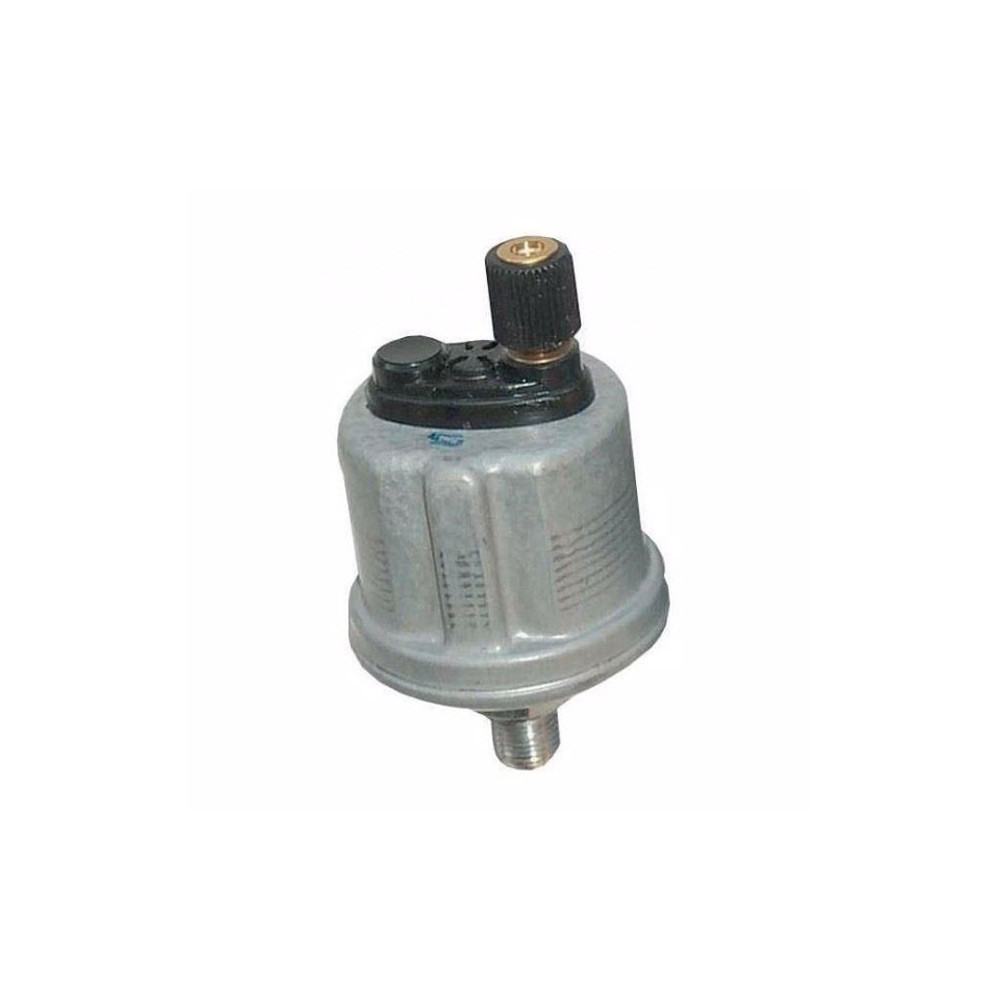

VDO Oil Pressure Sensor, 0–5 bar, M10x100, short tapered
Reference:
V-029001
Supplier Ref.:
360-081-029-001C
The VDO 0–5 bar oil pressure sensor transmits oil pressure data to a compatible instrument. Its short, tapered M10x100 connection determines the mechanical mounting on the circuit.
The 10 to 184 ? outlet must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. This version does not include an alarm contact.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: 360-081-029-001C
- Type: Oil pressure sensor
- Measurement range: 0 to 5 bar
- Thread: M10x100, short tapered

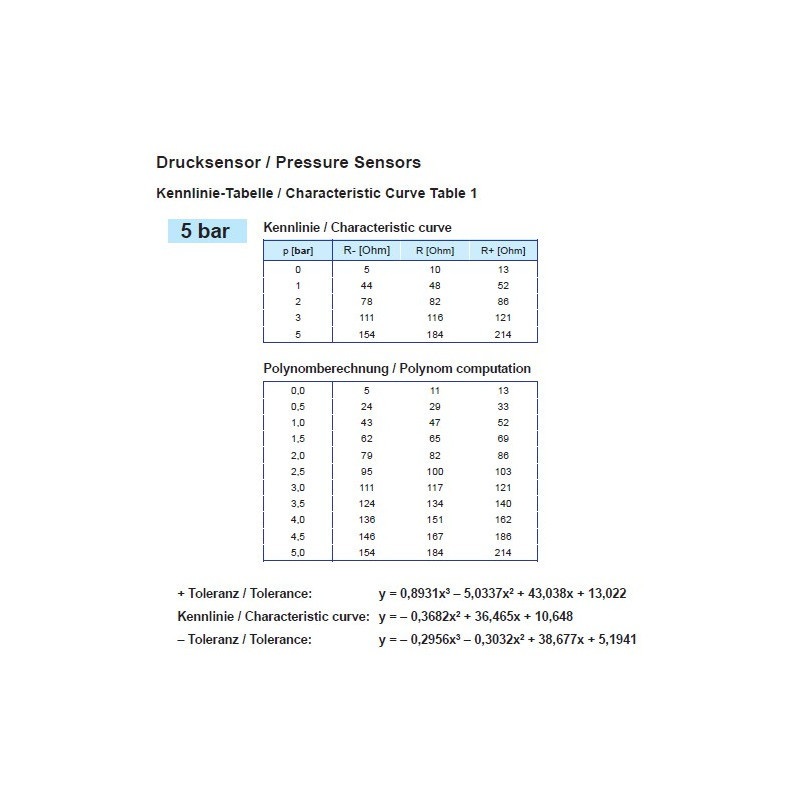

- Resistive signal: 10 to 184 ?
- Operating voltage: 6 to 24 V DC
- Alarm contact: None
- Type of mass: Mass via the sensor body
- Measurement connection: M4 plastic knurled nut

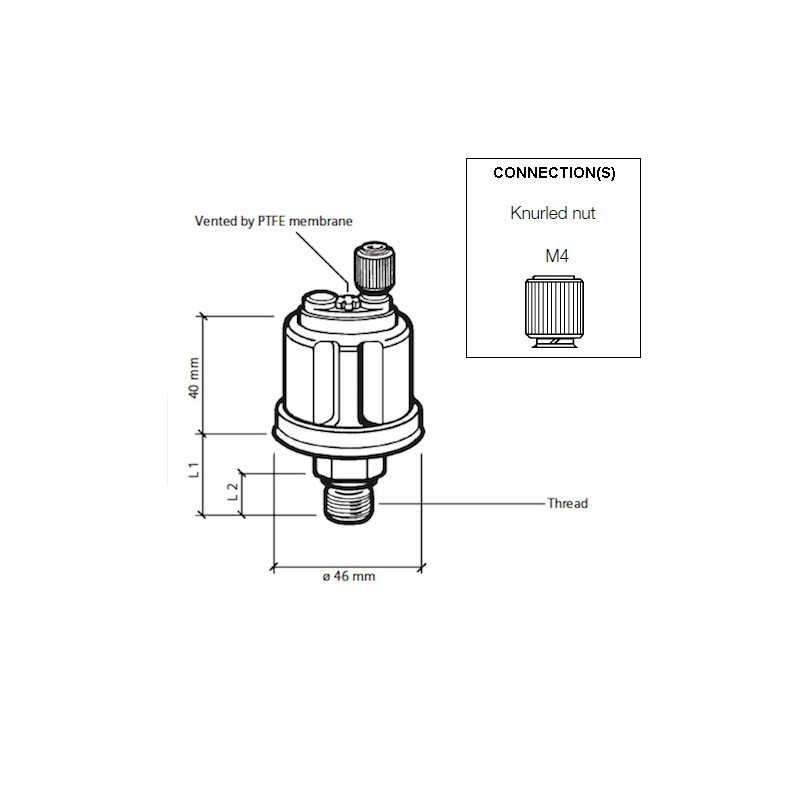

- Threaded length L2: 11 mm
- Thread and hex length L1: 19.5 mm
Compatibility and Mounting

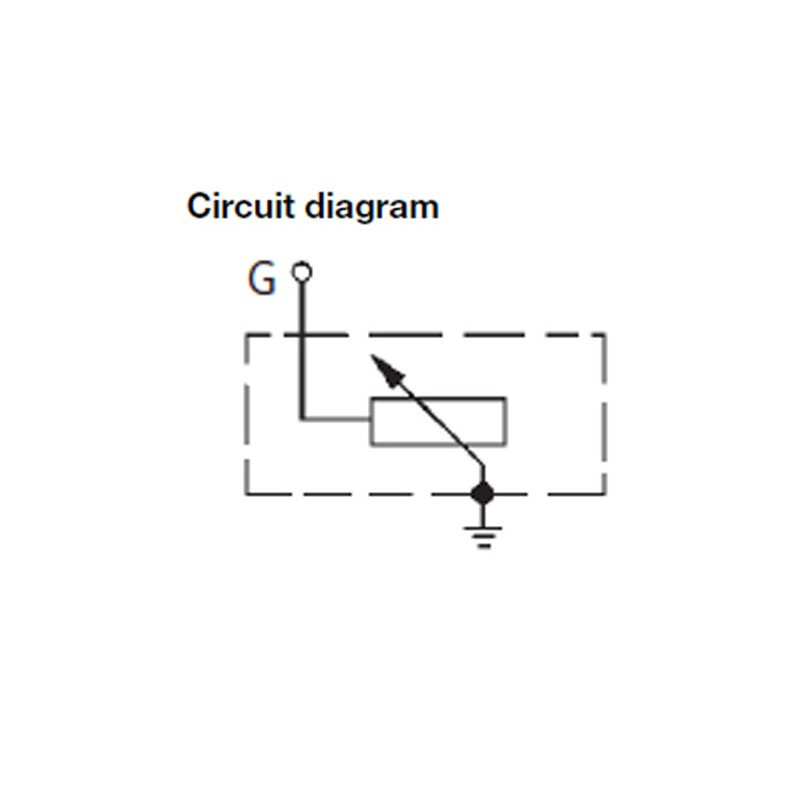

Check the short tapered M10x100 thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
-
Sensor typeOil Pressure
