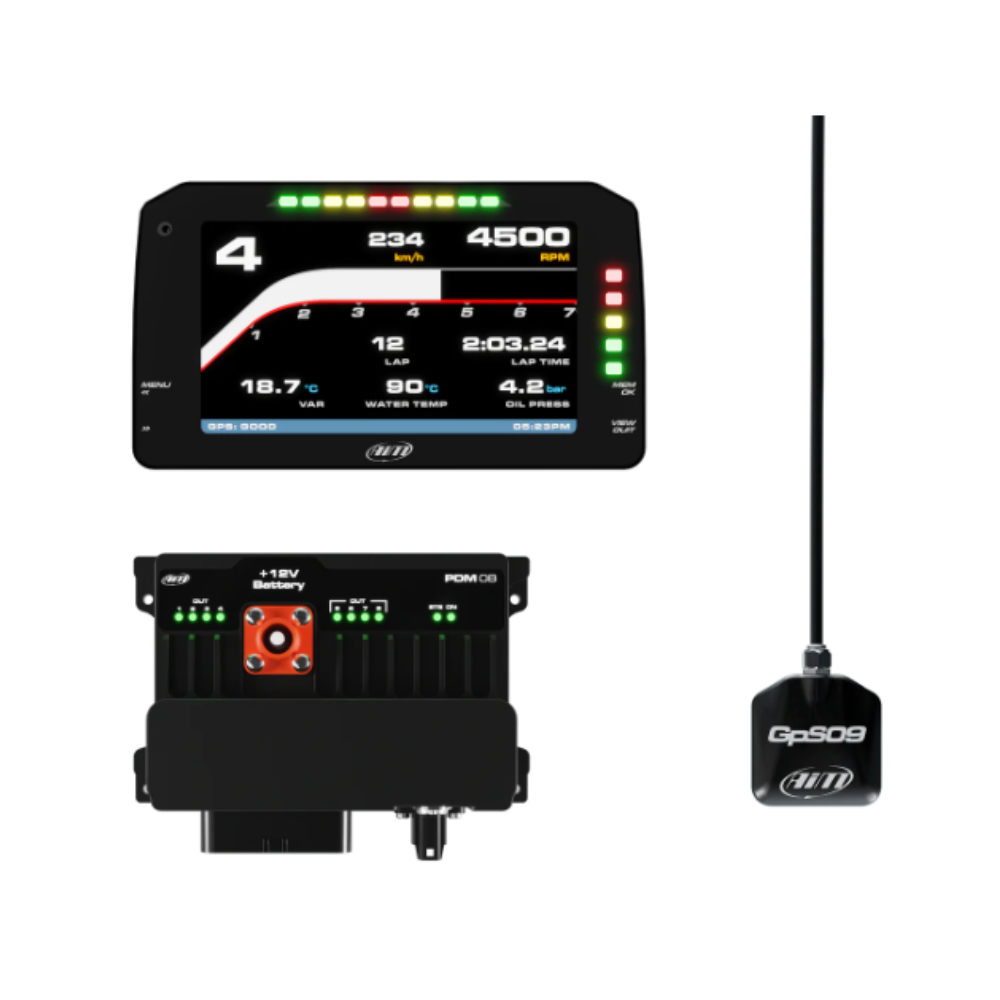

AIM PDM 8 data logger kit with 6" Race-type display

Boost your vehicle's performance tenfold with the AIM PDM 8 data logger kit, featuring a 6" display.

Featuring six configurable inputs and three CAN connections, this kit ensures seamless integration with other electronic components in your vehicle.

Its 4GB internal memory guarantees precise data recording during races, while its IP65 waterproofing protects it from the most extreme conditions on the track.

High-quality connectors, including an AMP connector, an Amphenol Surlok connector and a Rosenberger connector, ensure a reliable and secure connection.

With a resolution of 800x480 pixels, the display offers clear, detailed data visualization, while its compact dimensions of 198.6x106.2x49.9mm make it easy to install in any cockpit.

Weighing just 640g, this lightweight, rugged kit is ideal for demanding racing applications.

Cable available in standard versions: 0.5m, 1.3m, 2m and 4m, as well as roof versions: 2m and 4m.

Features :

• LEDs: 8 RGB LEDs + 1 PDM ON + 1 PDM STS (status)
• Inputs:
• Six fully configurable inputs, max. 500 Hz each
• Pullup + 12V, + 5V, analog/digital
• Pull down
• Speed IN: 2
• Power outputs :
• 1 with series diode up to 20 A
• 1 up to 25 A
• 6 up to 15 A
• Protection against: overvoltage, undervoltage, undercurrent, overtemperature
• All outputs have an internal freewheeling diode.
• Maximum total current: 100 A
• Lin bus: 1
• CAN connections: 3
• Internal platform: 3-axis accelerometer ±5G + 3-axis gyroscope + 3-axis magnetometer
• Internal memory: 4 GB
• External modules: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, Formula Handwheel, Remote I/O Pushbutton Module
• External analog camera input: NO
• Connectors: 1 AMP connector + 1 Amphenol Surlok connector + 1 Rosenberger connector
• Remote display connection: 1 AiM flow output
• Body: Anodized aluminum
• Dimensions: 161 x 100.6 x 50.6 mm 161 x 100.6 x 50.6 mm
• Weight: 500g
• Water resistance: IP65
• AiM PDM Dash 6
• Display: 6" TFT
• Resolution: 800 x 480 pixels
• Contrast: 600:1
• Brightness: 700cd/m2 - 1000 Lumen
• Ambient light sensor : Yes
• Device status information LED: 5
• Gear change illumination LED: 10
• Body: Anodized aluminum
• Push-buttons: Metal
• Connectors: LVDS Link 4-pin Rosenberger male
• Dimensions: 189.6 x 106.4 x 24.9mm 189.6 x 106.4 x 24.9 mm
• Weight: 640g
• Power consumption: 150 mA
• Water resistance: IP65
• GPS module
• 5-pin Binder connection
• Dimensions: 64.8 x 53.2 x 19.7 mm 64.8 x 53.2 x 19.7 mm
• Weight: 60.5 g
