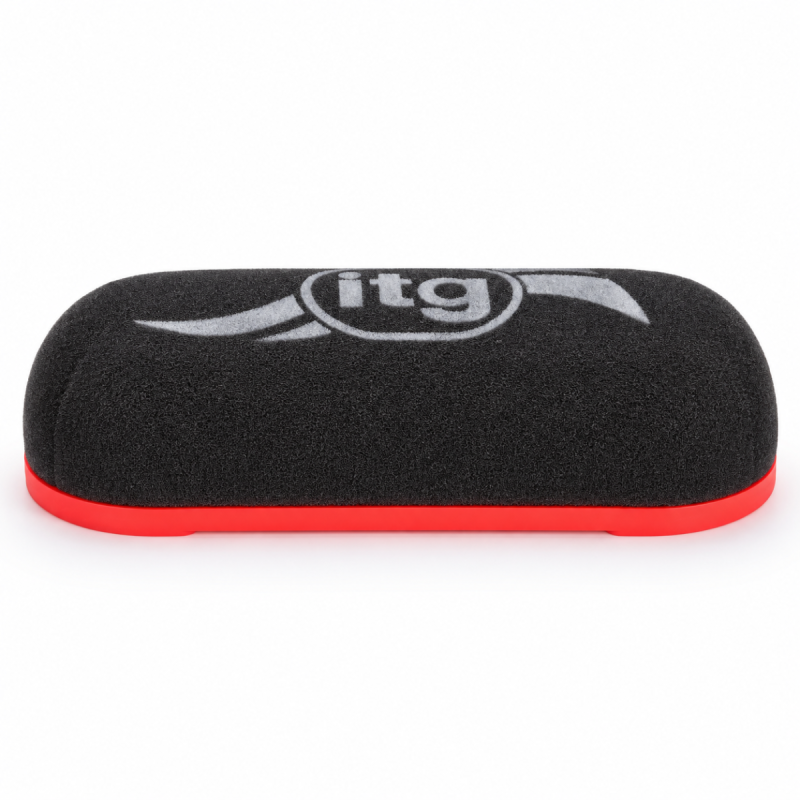

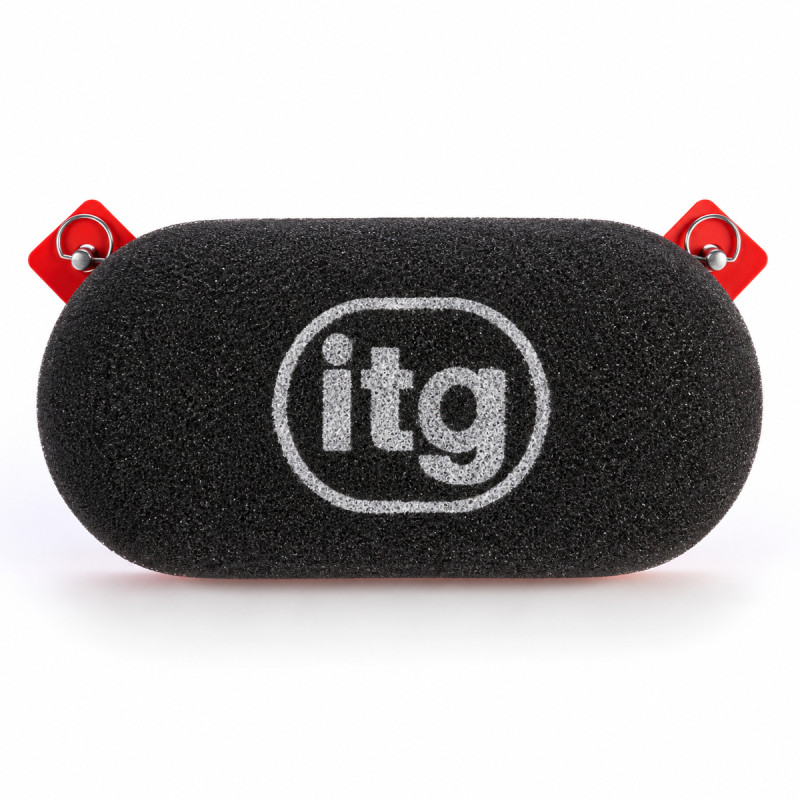

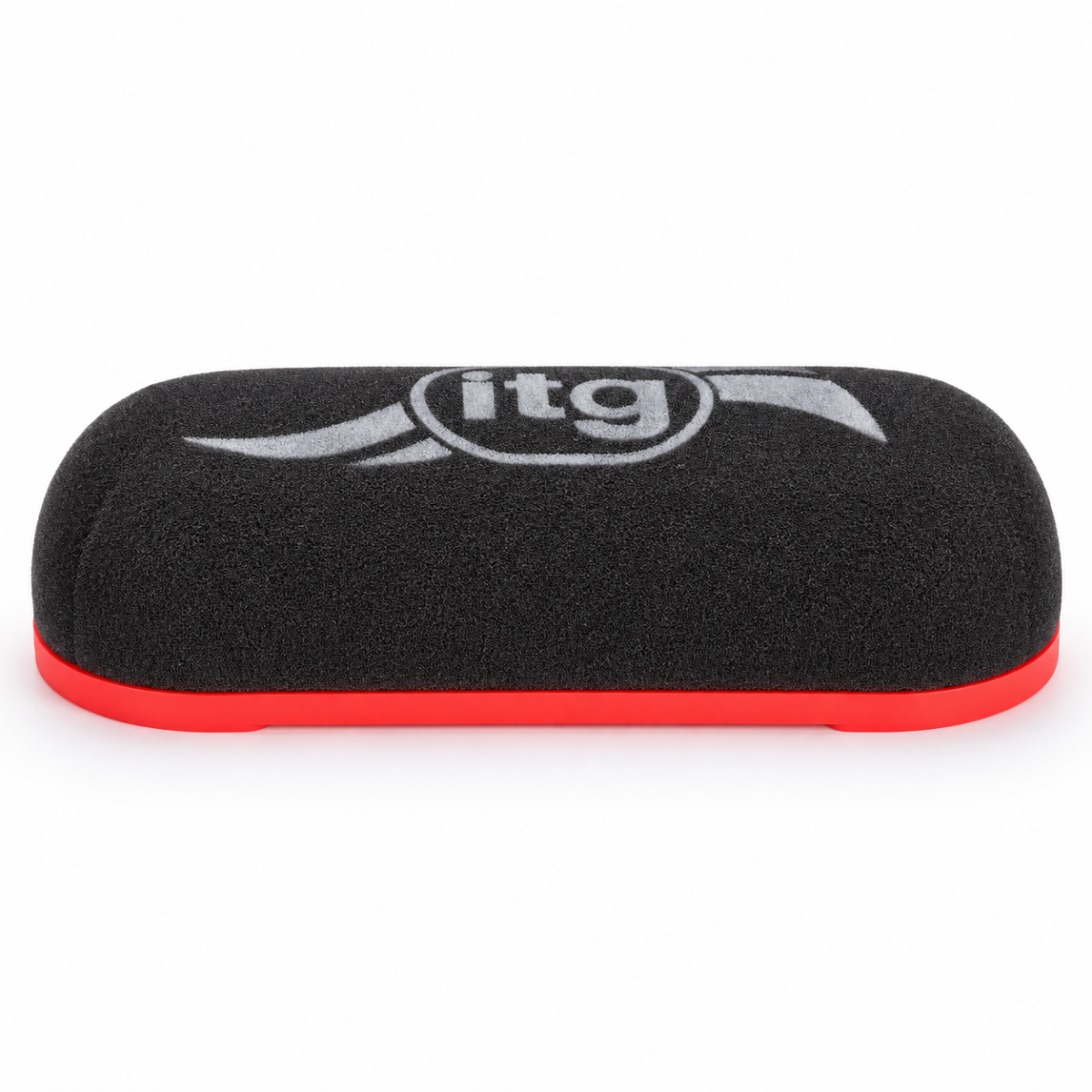

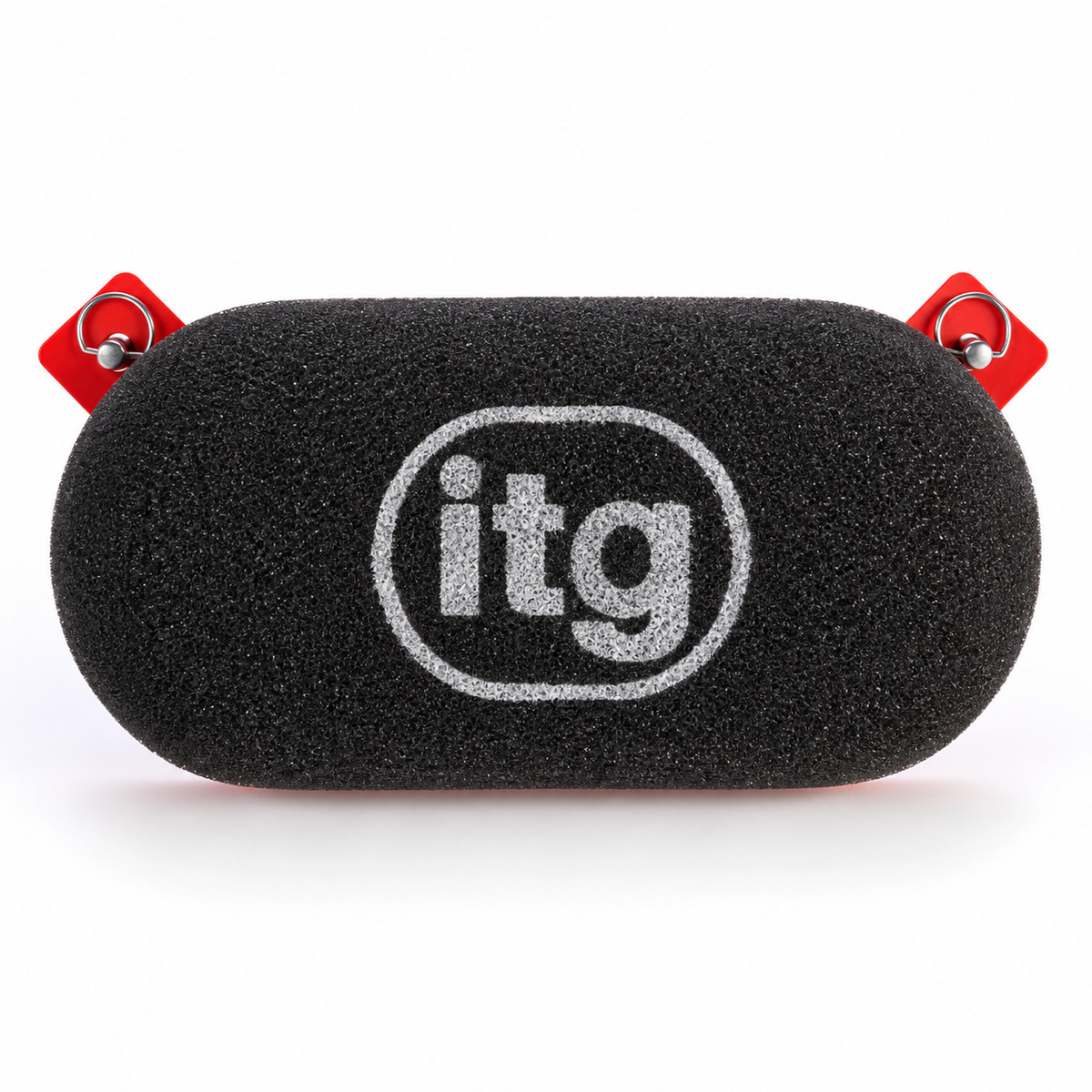

ITG Megaflow JC30 Domed Air Filter - 100 mm

The ITG Megaflow JC30 domed air filter is designed for intake systems equipped with a compatible air cleaner baseplate from the JC30 range. Its 298 x 149 mm dimensions allow it to cover the air intake or intake horns, depending on the mounting.

This JC30/S/100 version has an internal height of 100 mm and an external height of 125 mm. Its domed “Sausage” profile must be taken into account when checking the available space in the engine compartment.

The internal height allows you to verify clearance with the intake horns or trumpets. Before installation, check the space between their ends and the inner surface of the filter, as well as the compatibility of the JC30 base with the intake system in use.

The ITG Megaflow foam air filter is washable and reusable. Its red frame holds the filter element in place. For maintenance, use cleaning and oiling products suitable for foam filters. Check the oiling before first use and follow ITG’s recommendations.

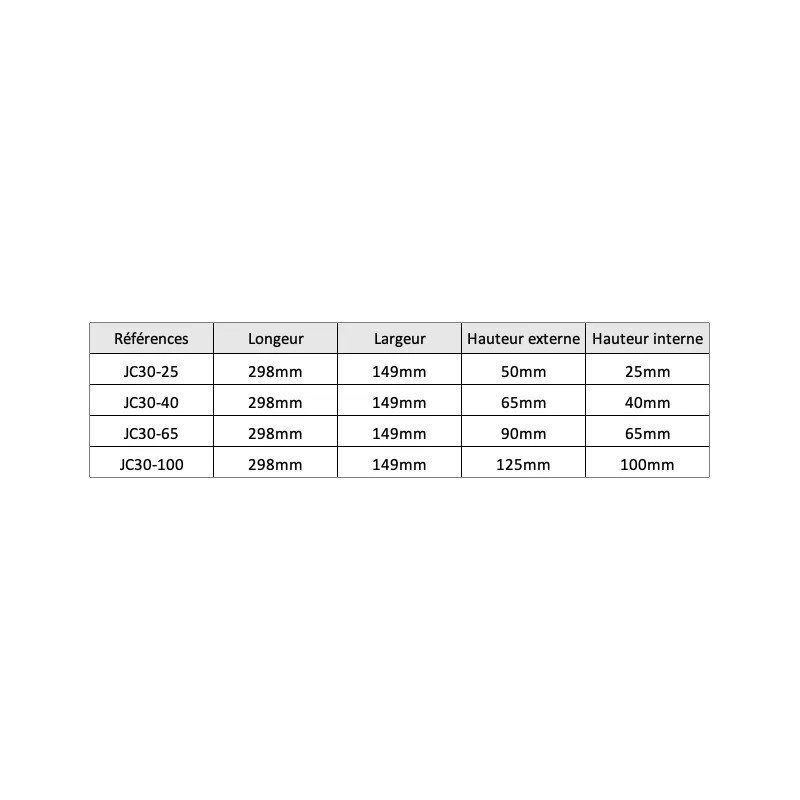

Technical Specifications of the ITG Megaflow JC30 Domed Air Filter

• Brand: ITG
• Range: Megaflow
• Type: Foam air filter
• Shape: domed, “Sausage” version
• Length: 298 mm
• Width: 149 mm
• External height: 125 mm
• Internal height: 100 mm
• Frame color: red
• Mounting: on a compatible base from the JC30 range
• Maintenance: washable and reusable
• Oiling: required before use
• Manufacturer part number: JC30/S/100

Key features of the ITG Megaflow JC30 domed air filter

• “Sausage” domed profile
• Dimensions: 298 x 149 mm
• Internal height of 100 mm for mountings requiring this clearance
• Mounting on a JC30-compatible base
• Washable and reusable foam filter element
