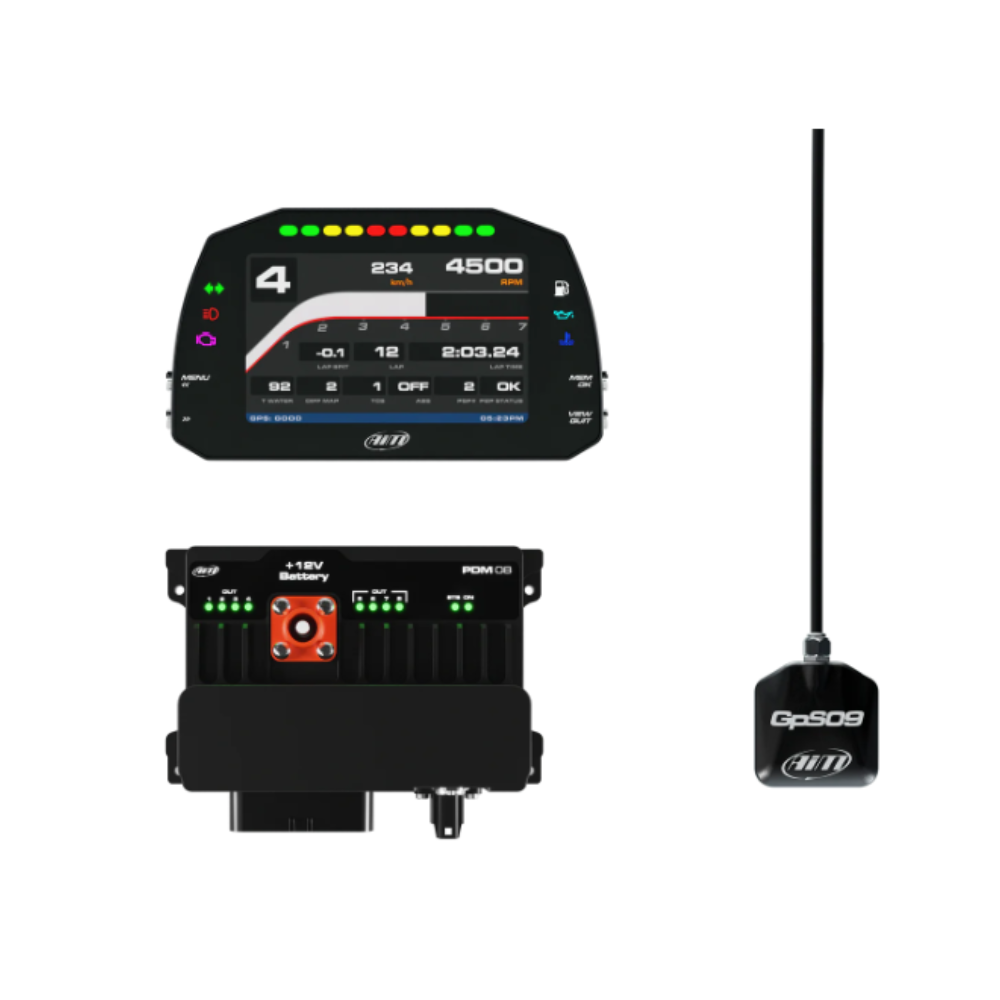

AIM PDM 8 data logger kit with 5" Road-type display

Enhance your vehicle's performance with the AIM PDM 8 data logger kit, combined with a 5" display specially designed for racing.

Featuring 9 RGB LEDs, as well as PDM ON and PDM STS indicators, this kit offers clear, intuitive visual control.

With an input speed of 2, this system provides a fast, precise response to your vehicle's data. The 3 integrated CAN connections allow easy integration with other electronic systems in your vehicle. What's more, the 4GB internal memory guarantees reliable recording of race data.

With a resolution of 800x480 pixels and dimensions of 189.6x106.4x24.9mm, this display offers clear, detailed visualization of race data.

Cable available in standard versions: 0.5m, 1.3m, 2m and 4m, as well as roof versions: 2m and 4m.

Features :

• Inputs :
• 14 fully configurable, max. 500 Hz each :
• 8 analog/digital
• 4 digital inputs
• 2-speed input
• Power outputs :
• 4 up to 20 A (high power)
• 12 up to 15 A (low power)
• 12 up to 10 A (low bridge)
• 4 up to 35 A (half-bridge)
• Protection: overvoltage, undervoltage, overcurrent, overtemperature
• Maximum total current: 120 A
• LEDs: 32 RGB LEDs + 1 PDM ON + 1 PDM STS (Status)
• Lin bus: 1
• CAN connections: 3
• Internal platform: 3-axis accelerometer ±5G + 3-axis gyroscope + 3-axis magnetometer
• Remote display connection: 1 AiM stream output
• Connectors: 2 AMP connectors + 2 Binder connectors + 1 Amphenol Surlok connector + 1 Rosenberger connector
• Internal memory: 4 GB
• External modules: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, Formula Handwheel, Remote I/O Pushbutton Module
• External analog camera input: 2
• Body: Anodized aluminum
• Waterproofing: IP65
• Dimensions: 234.5 x 94.6 x 49.5 mm 234.5 x 94.6 x 49.5 mm
• Weight: 761g
• PDM Dash 6" TFT display :
• Display: 5" TFT
• Resolution: 800 x 480 pixels
• Contrast: 600:1
• Brightness: 700cd/m2 - 1,100 Lumen
• Ambient light sensor : Yes
• Device status information LED: 5
• Gear change illumination LED: 10
• Body: Anodized aluminum
• Push buttons: Metal
• Connectors: LVDS Link 4 pins Rosenberger male connector
• Dimensions: 189.6 x 106.4 x 24.9mm 189.6 x 106.4 x 24.9 mm
• Weight: 640g
• Power consumption: 150 mA
• Water resistance: IP65
• GPS module :
• 5-pin Binder connection
• Dimensions: 64.8 x 53.2 x 19.7 mm 64.8 x 53.2 x 19.7 mm
• Weight: 60.5 g
