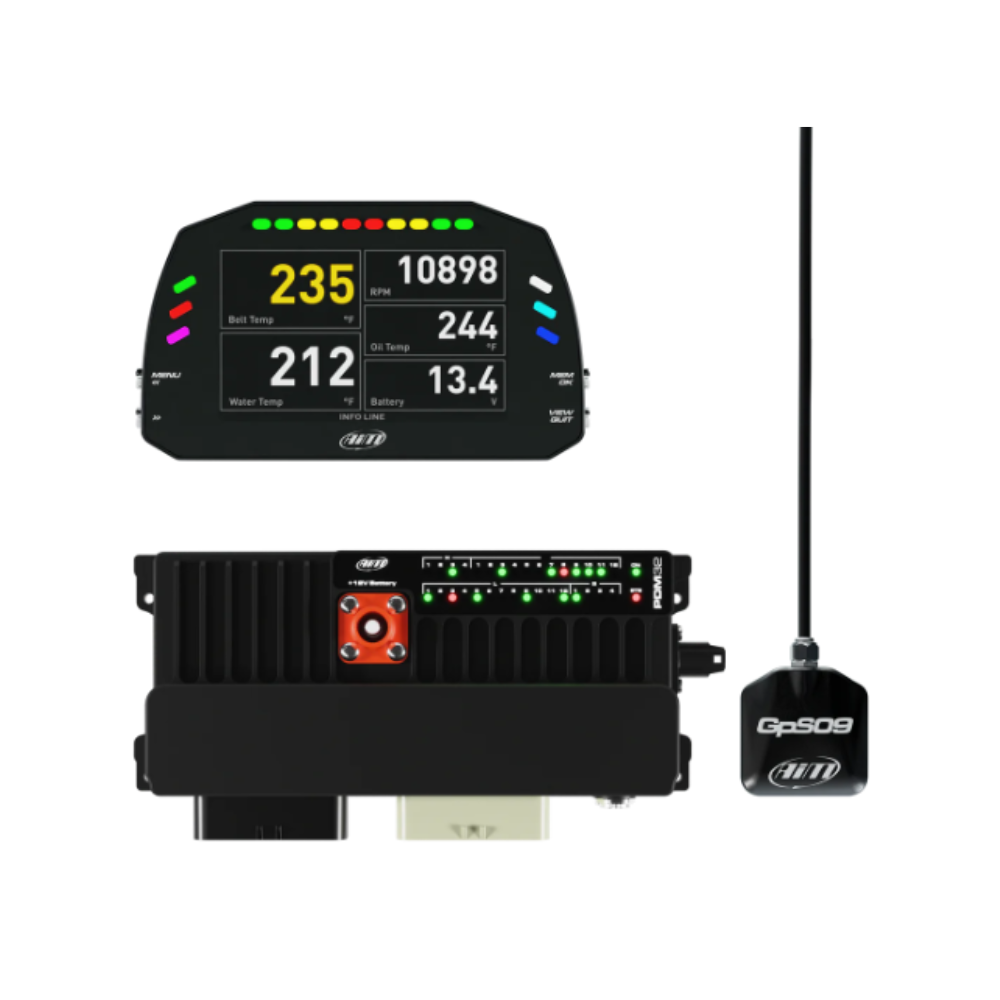

AIM PDM 32 data logger kit with 5" Race-type display

Optimize your vehicle's performance on the track with our AIM PDM 32 data logger kit featuring a 5" race-style display.
This kit is designed to offer precise and comprehensive control of your electrical system, with a versatile power output of up to 20A high-power, 15A soft-power, 10A low-bridge and 35A half-bridge.

With its 32 RGB LEDs, high-resolution 5" display and metal push-buttons, this equipment offers an intuitive, user-friendly interface for monitoring and controlling your system. Gearshift status information LEDs let you quickly view essential data, while extensive connectivity with other equipment is provided.

Compact and robust, this kit features 4GB of internal memory for reliable data recording. With a resolution of 800x480 pixels and dimensions of 234.5x94.6x49.5mm, it offers exceptional display quality, even in demanding racing conditions. Weighing just 640g and featuring IP65 waterproofing, this kit is perfectly suited to use on the racetrack.

Available in different cable versions with the standard: 0.5m, 1.3m, 2m and 4m.
Roof version: 2m and 4m.

Features :

• Inputs :
• 14 fully configurable, max. 500 Hz each :
• 8 analog/digital
• 4 digital inputs
• 2-speed input
• Power outputs :
• 4 up to 20 A (high power)
• 12 up to 15 A (low power)
• 12 up to 10 A (low bridge)
• 4 up to 35 A (half-bridge)
• Protection: overvoltage, undervoltage, overcurrent, overtemperature
• Maximum total current: 120 A
• LEDs: 32 LEDRGB + 1 PDM ON + 1 PDM STS (Status)
• Lin bus: 1
• CAN connections: 3
• Internal platform: 3-axis accelerometer ±5G + 3-axis gyroscope + 3-axis magnetometer
• Remote display connection: 1 AiM stream output
• Connectors: 2 AMP connectors + 2 Binder connectors + 1 Amphenol Surlok connector + 1 Rosenberger connector
• Internal memory: 4 GB
  External modules: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD, Formula Handwheel, Remote I/O Pushbutton Module
• External analog camera input: 2
• Body: Anodized aluminum
• Waterproofing: IP65
• Dimensions: 234.5 x 94.6 x 49.5 mm 234.5 x 94.6 x 49.5 mm
• Weight: 761g
• PDM Dash 5" TFT Display :
• Display: 5" TFT
• Resolution: 800 x 480 pixels
• Contrast: 600:1
• Brightness: 700cd/m2 - 1,100 Lumen
• Ambient light sensor : Yes
• Device status information LED: 5
• Gear change illumination LED: 10
• Body: Anodized aluminum
• Pushbuttons: Metal
• Connectors: LVDS Link 4 pins Rosenberger male connector
• Dimenions : 189.6 x 106.4 x 24.9mm 189,6 x 106,4 x 24,9 mm
  Weight: 640g
• Power consumption: 150 mA
• Water resistance: IP65
• GPS module :
• 5-pin Binder connection
• Dimensions: 64.8 x 53.2 x 19.7 mm 64.8 x 53.2 x 19.7 mm
• Weight: 60.5 g
