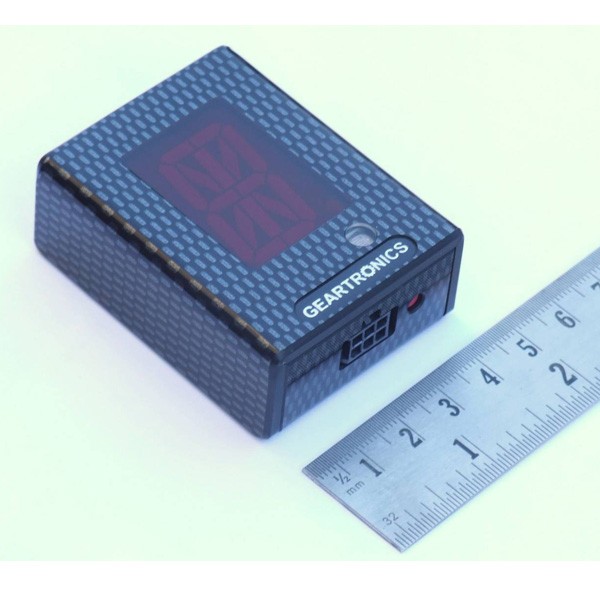

Geartronic Led gear indicator display

The Geartronics gearshift indicator is fully programmable to suit all types of sequential gearbox equipped with a position sensor, and works even if the potentiometer is mounted "upside down"! A simple one-button programming procedure recognizes the positions of each gear, including neutral and reverse. A programmable relay control pin is also included, and can be activated in R, N or both R and N.

The original 1.2" (30 mm) display is used on over 5,000 gearboxes worldwide, in all motorsport disciplines. Originally designed to meet the needs of a major British gearbox manufacturer, it is now compatible with any sequential gearbox, provided it is equipped with a barrel position sensor.

Features :

30 mm alphanumeric digit, capable of displaying 1-7, N & R
High-intensity red alphanumeric LED display
Photo sensor automatically adjusts display brightness
Supplied with high-quality wiring harness
Designed using the latest SMD and multilayer PCB technologies
High-quality gearbox position sensors, available separately
Water-resistant system.

Please note: no OBD connector.

Dimensions: 47 x 63 x 20 mm
