Cartek X-Pro Electronics Circuit Breaker Kit with External Button

The Cartek X-Pro Electronic Cut-Out Device Kit with External Button is designed for race and rally vehicles, particularly those equipped with engines of large cubic capacity or heavily modified engines, including V8s. It includes both interior and exterior controls, with a choice of a red or blue external button.

The X-Pro supports a starting current of 650 A and up to 2,000 A peak current. Its engine shut-off outlet has an adjustable protection threshold of 5, 10, 15, or 20 A, allowing the device to be adapted to the connected circuit.

Engine Shutdown and Battery Isolation

The cut-out device first cuts off the power supply to the circuit required for engine operation. It then disconnects the battery’s negative terminal from the vehicle’s ground, isolating the battery from all electrical equipment.

Protection against generator shutdown surges is built in. The engine shutdown outlet can be connected to an ECU or power distribution module input, a generator relay, or the ignition system, in accordance with the Cartek manual.

Technical Specifications

• Brand: Cartek.
• Model: X-Pro.
• Type: Electronic cut-out device with internal and external controls.
• Operating voltage: 7 to 18 V.
• Rated starting current: 650 A.
• Peak current: 2,000 A.
• Engine stop outlet: protected power outlet, adjustable to 5, 10, 15, or 20 A.
• Operating current consumption: 50 mA.
• Standby consumption: 7 mA.
• Cut-out device weight: 110 g.
• Battery isolation: negative terminal disconnection.
• Battery negative connection: M8 stud.
• Battery positive connection: M4 stud.
• Control connector: 4-pin waterproof Deutsch DT connector.
• Diagnostics: built-in RGB LED indicator.
• Protections: overcurrent, overheating, and generator us dynamo overvoltage shutdown.
• Construction: Housing sealed against water and dirt, with shock and vibration resistance.
• External button color: red or blue, depending on the selected variant.

Interior and exterior controls

• Interior switch: controls the activation and deactivation of the cut-out device from the cockpit.
• External button: Allows the circuit breaker to be turned off only from outside the vehicle.

Applications

The X-Pro is suitable for racing applications requiring high starting capacity, particularly with large-cubic-capacity engines and heavily modified vehicles. The protection threshold for the engine-shutdown outlet must be selected based on the consumption of the circuit being powered.

This device is not suitable for electric or hybrid vehicles.

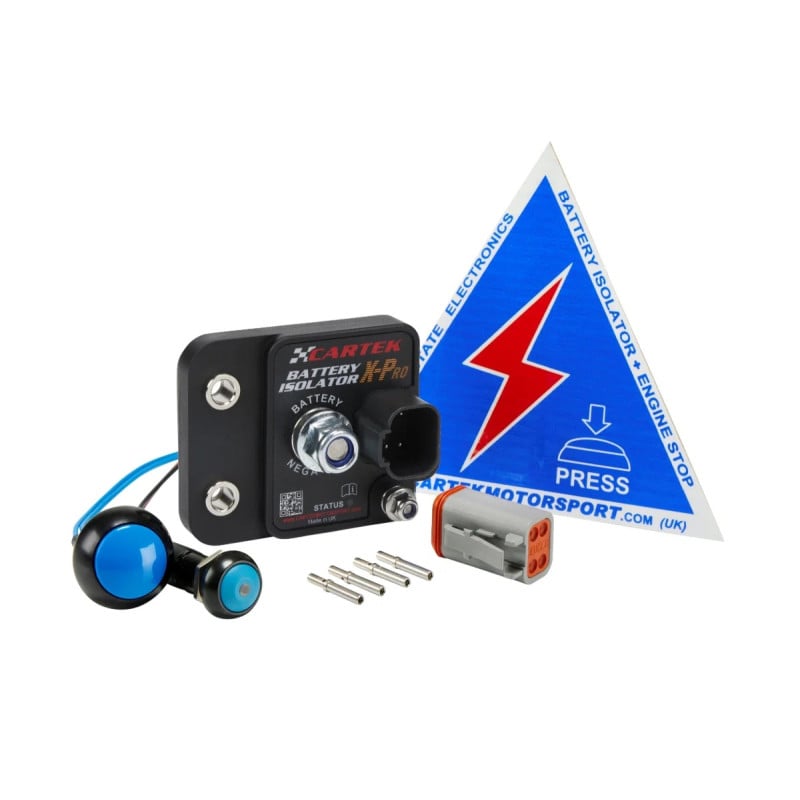

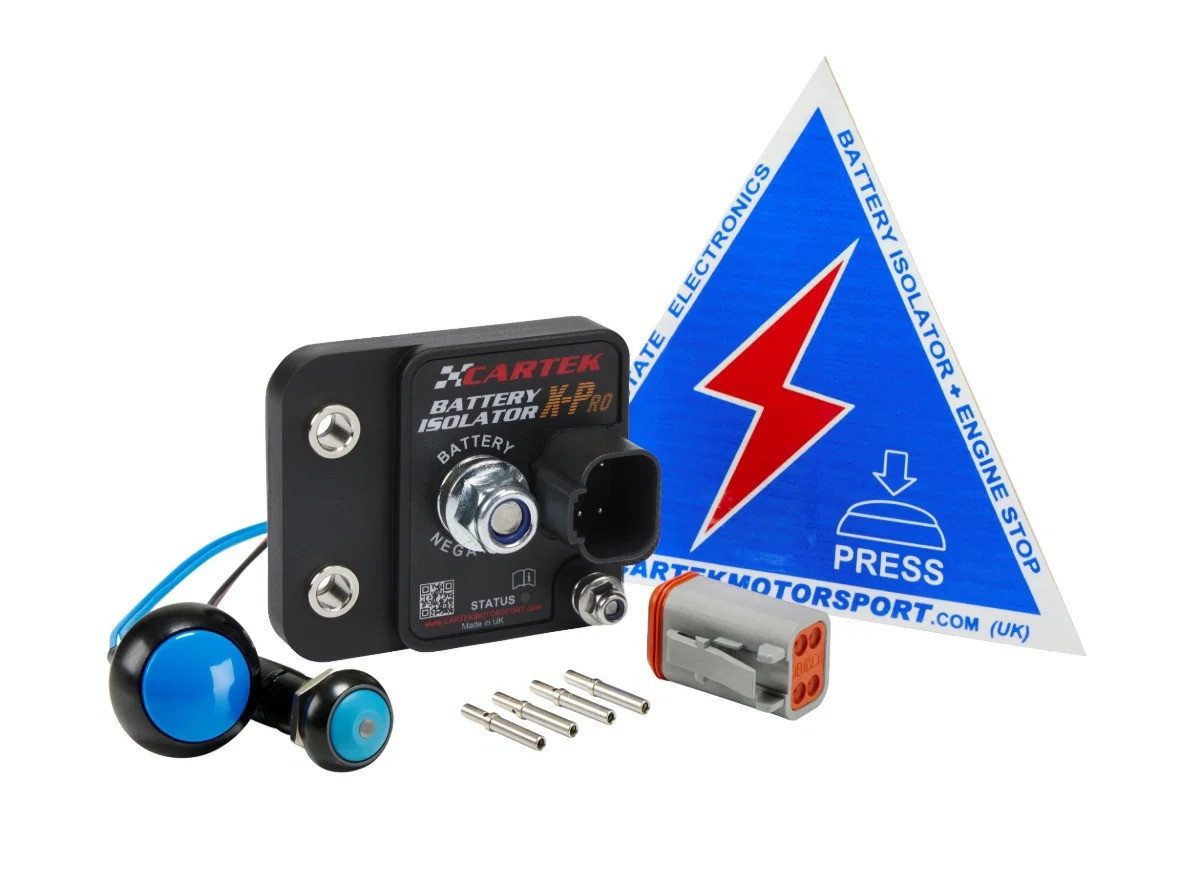

Kit Contents

• One Cartek X-Pro electronic cut-out device.
• One interior on/off switch.
• One exterior cut-off button in the selected color.
• One cut-out device warning sticker.

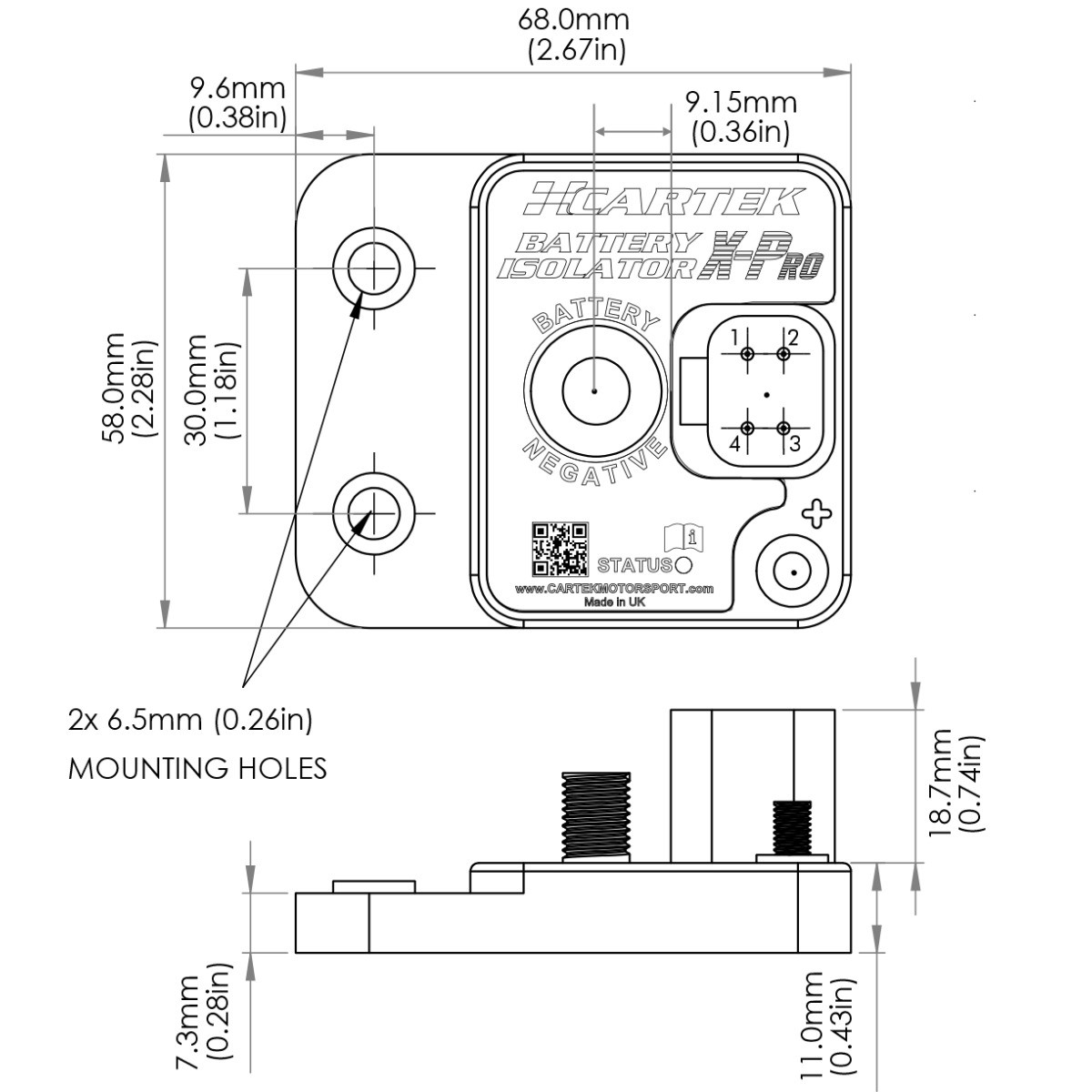

Mounting and Connection

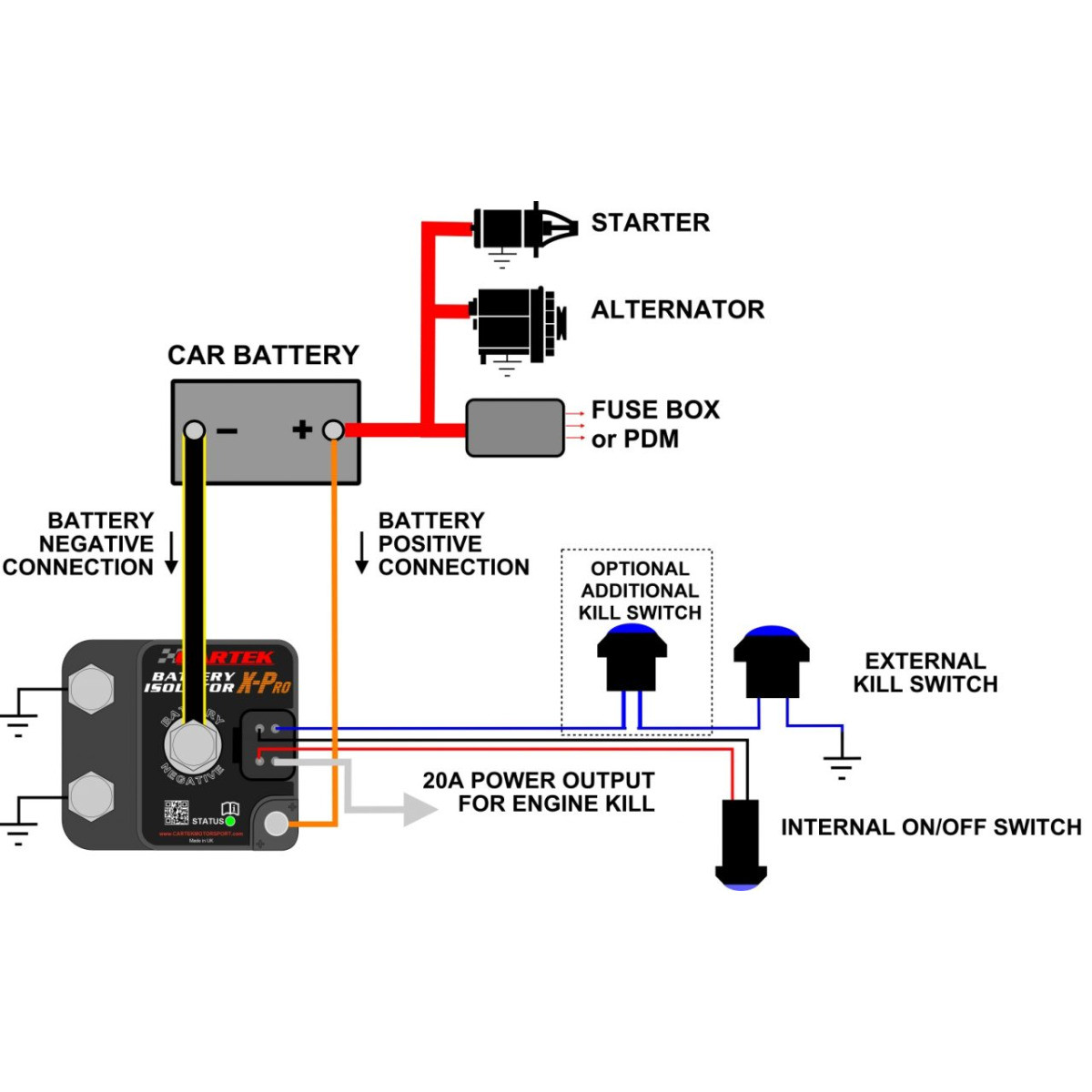

Install the cut-out device near the battery and ensure a proper electrical connection to the chassis ground. Make the connections and adjust the engine shut-off outlet according to Cartek’s instructions.

On a vehicle equipped with a generator, connecting the engine shut-off function is essential: simply disconnecting the battery is not sufficient to shut off the engine.
