VDO Oil Pressure Sensor, 0–5 bar, 1/8-27 NPTF, 360-081-030-010C - V-030010 - 360-081-030-010C - 3661768217610

VDO Oil Pressure Sensor, 0–5 bar, 1/8-27 NPTF, with 1.4 bar alert

Reference: V-030010

Supplier Ref.: 360-081-030-010C

Learn more

CHF 105.30 Tax included

CHF 117.00 -10% Discount

Promotion ends in: 04 D 18 H 23 M 39 S

Available to order

Unavailable in store (Promasens)

Within 30 days on average.

CHF 117.00 -10%

CHF 105.30 (tax incl.)

Earn 105 loyalty points

The VDO 0–5 bar oil pressure sensor transmits oil pressure data to a compatible instrument. Its 1/8-27 NPTF connection determines the mechanical mounting on the circuit.

The 10 to 184 ? outlet must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. The 1.40 bar ± 0.15 bar warning contact provides a function separate from the measurement, designed to activate a compatible warning light.

Technical Specifications

Brand: VDO
Manufacturer Part Number: 360-081-030-010C
Type: Oil pressure sensor
Measurement range: 0 to 5 bar
Thread: 1/8-27 NPTF

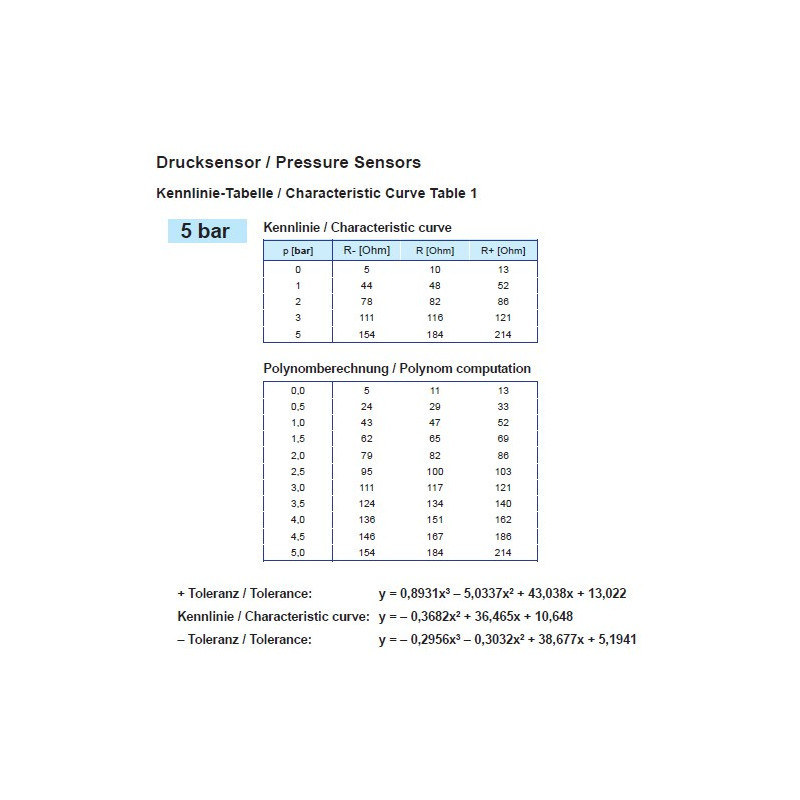

Resistive signal: 10 to 184 ?
Operating voltage: 6 to 24 V DC
Contact d’alerte : 1.40 bar ± 0.15 bar
Type of ground: Ground via the probe body
Measurement connection: M4 plastic knurled nut
Alarm contact connection: M4 plastic knurled nut

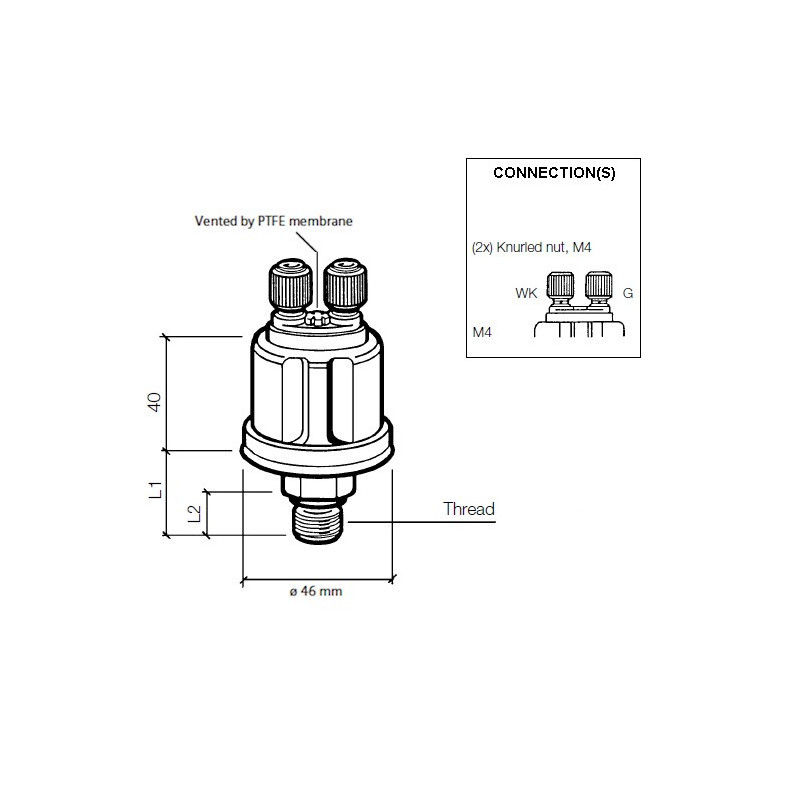

Threaded length L2: 11 mm
Thread and hex length L1: 19.5 mm

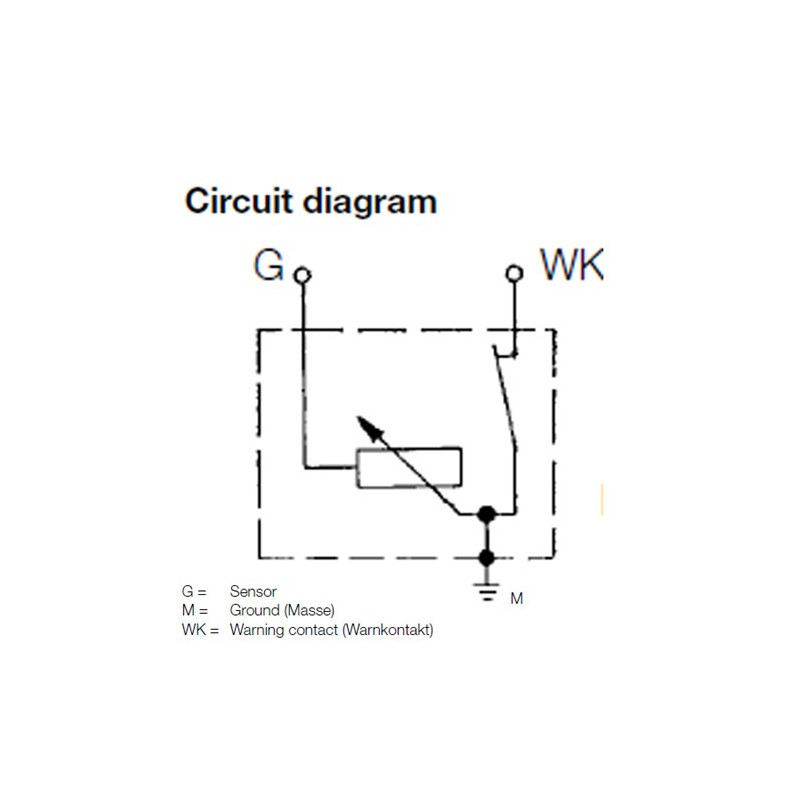

Contact operation: Closes when pressure drops

Compatibility and Mounting

Check the 1/8-27 NPTF thread, the resistance curve, and the connection before mounting. The body must maintain electrical continuity with the circuit ground.
