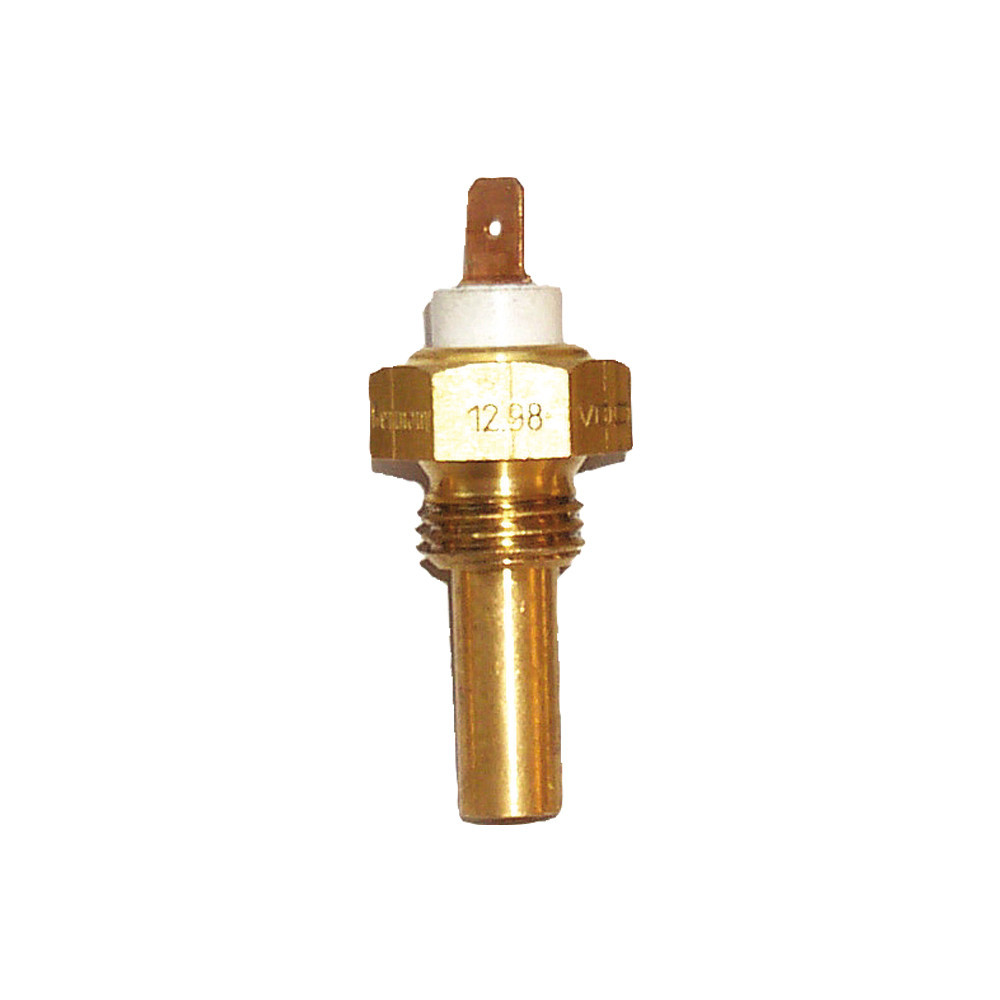

VDO Cooling Fluid Temperature Sensor, +40 to 120 °C, M18×150
Reference:
V-001022
Supplier Ref.:
323-801-001-022N
The VDO cooling fluid temperature sensor (+40 to 120 °C ) transmits cooling fluid temperature data to a compatible instrument. Its M18×150 connection determines the mechanical mounting on the circuit.
The outlet range of 287.4 to 22.7 ? must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. This version does not include an alarm contact.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: 323-801-001-022N
- Type: Cooling fluid temperature sensor
- Measurement range: +40 to 120 °C

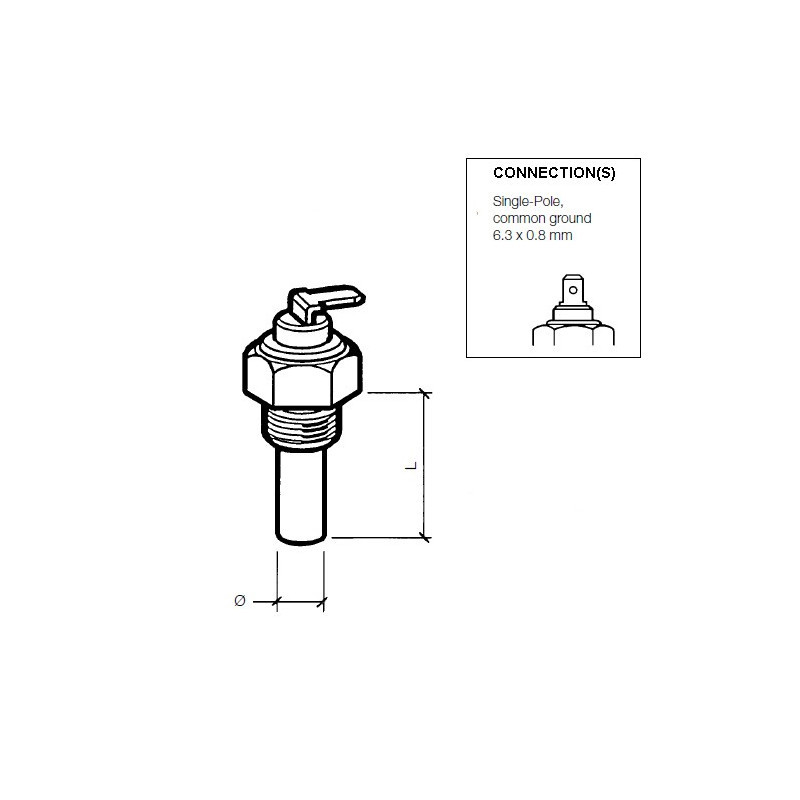

- Thread: M18×150

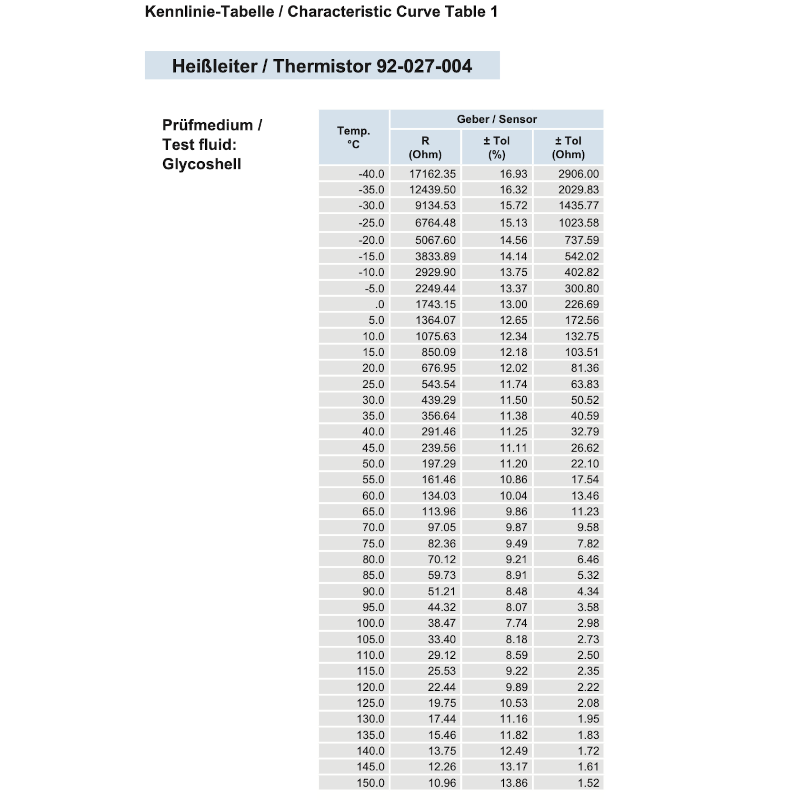

- Resistive signal: 287.4 to 22.7 ?
- Operating voltage: 6 to 24 V DC
- Alarm contact: None
- Type of grounding: Grounded through the probe body
- Measurement connection: 6.3 x 0.8 mm flat plug
Compatibility and Mounting
Check the M18×150 thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
-
Sensor typeWater Temperature
