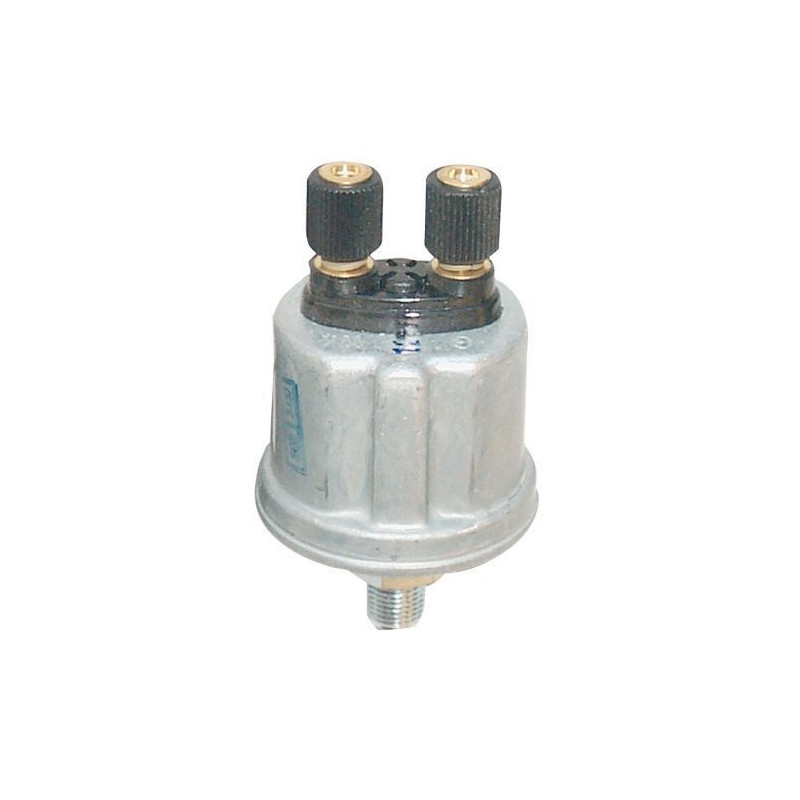

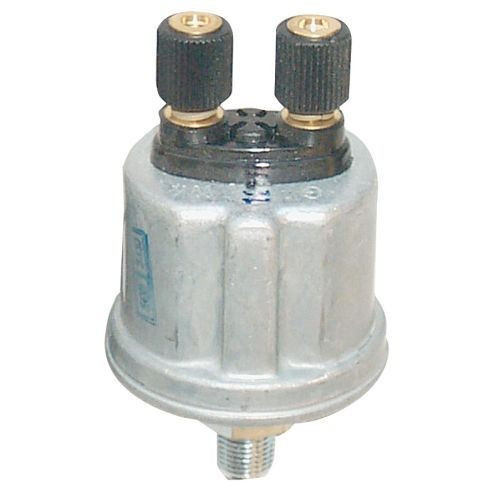

VDO Oil Pressure Sensor, 0 to 10 bar, M18×150, 360-081-030-070C - V-030070 - 360-081-030-070C - 3661768217740

VDO Oil Pressure Sensor, 0–10 bar, M18×150, with 0.50 bar alert

Reference: V-030070

Supplier Ref.: 360-081-030-070C

Learn more

CHF 92.70 Tax included

CHF 103.00 -10% Discount

Promotion ends in: 04 D 17 H 33 M 15 S

Available to order

Unavailable in store (Promasens)

Within 30 days on average.

CHF 103.00 -10%

CHF 92.70 (tax incl.)

Earn 92 loyalty points

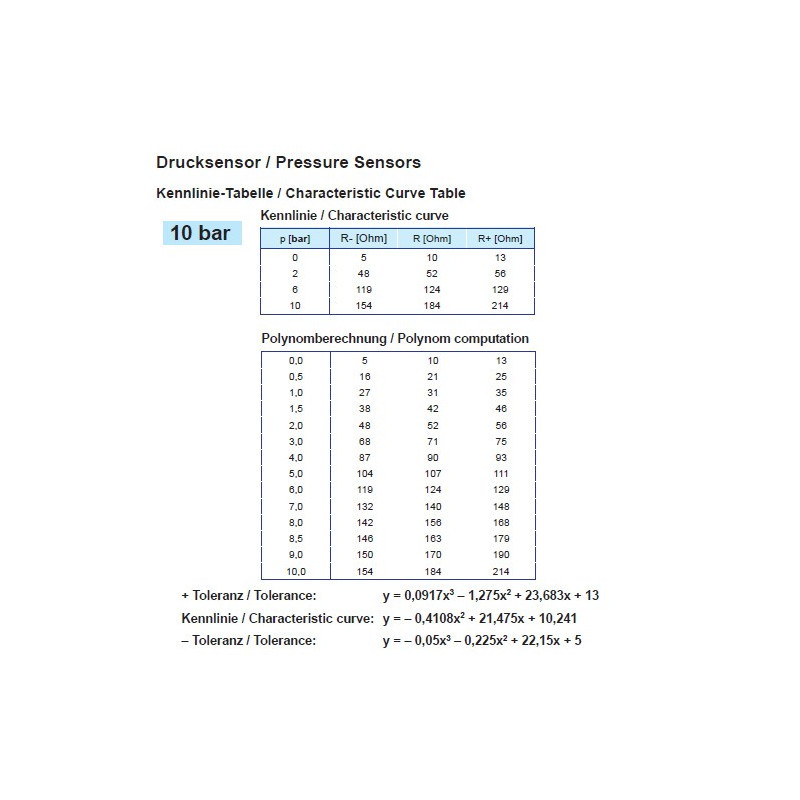

Oil pressure measurement with this VDO oil pressure sensor is based on a resistive signal ranging from 10 to 184 ?. This part number covers 0 to 10 bar and uses an M18×150 connection.

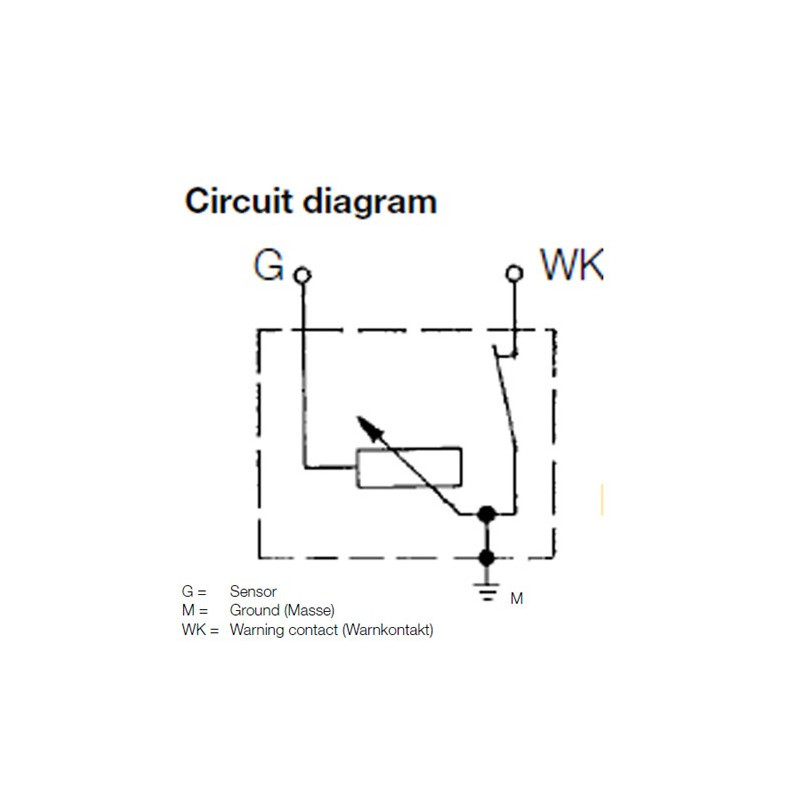

The 10 to 184 ? outlet must match the electrical characteristics of the gauge or indicator being used. An identical display range is not sufficient to guarantee compatibility. The 0.50 bar ± 0.20 bar warning contact provides a function separate from the measurement, for controlling a compatible warning light.

Technical Specifications

Brand: VDO
Manufacturer Part Number: 360-081-030-070C
Type: Oil pressure sensor
Measurement range: 0 to 10 bar
Thread: M18×150
Resistive signal: 10 to 184 ?
Operating voltage: 6 to 24 V DC
Contact d’alerte : 0.50 bar ± 0.20 bar
Type of grounding: Grounded through the probe body
Measurement connection: M4, 6.3 x 0.8 mm flat plug
Alarm contact connection: M4 flat plug, 6.3 x 0.8 mm

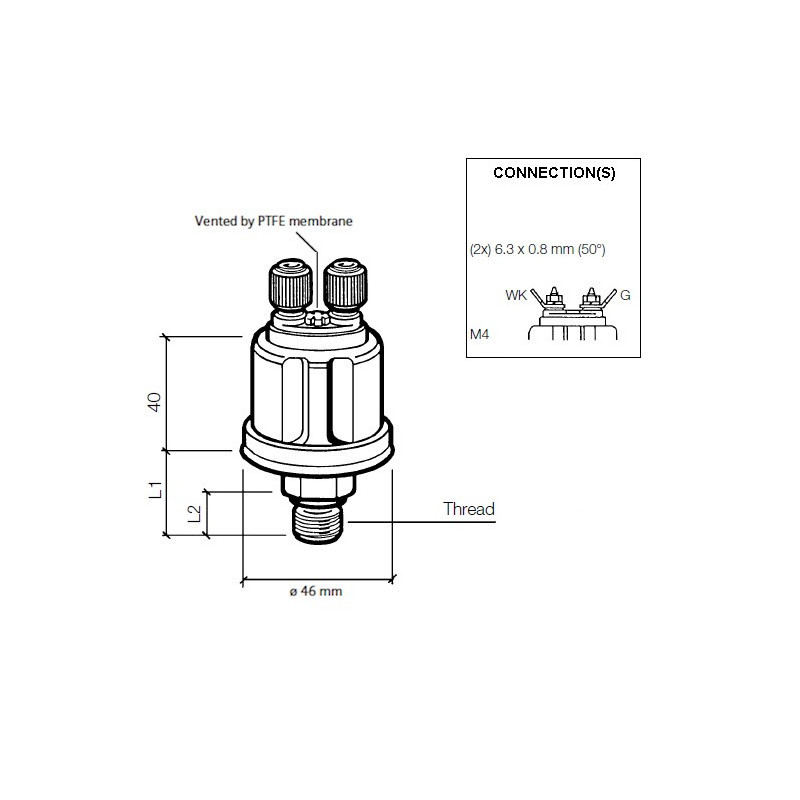

Threaded length L2: 12 mm
Thread and hexagonal length L1: 20.5 mm
Contact operation: Closes when pressure drops

Compatibility and Mounting

Check the M18×150 thread, the resistance curve, and the connection before mounting. The body must maintain electrical continuity with the circuit ground.
