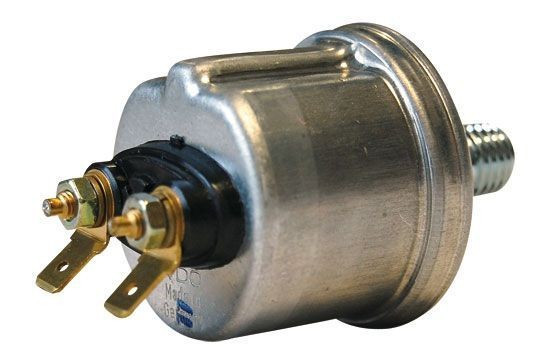

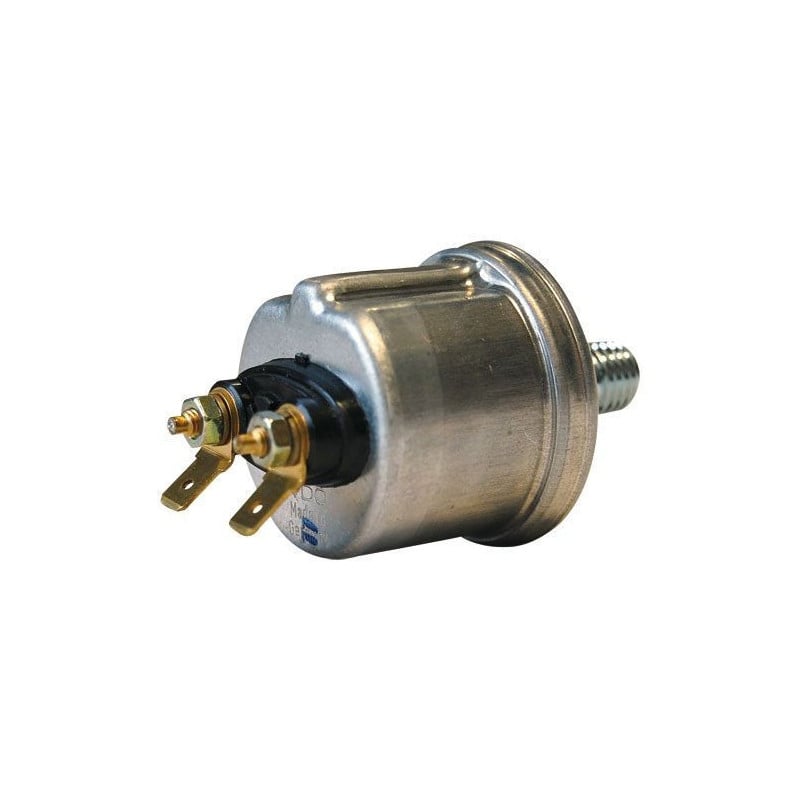

VDO Oil Pressure Sensor, 0–5 bar, 1/8-27 NPTF
Reference:
V-032001
Supplier Ref.:
360-081-032-001C
Oil pressure measurement with this VDO oil pressure sensor is based on a resistive signal ranging from 10 to 184 ?. This model covers 0 to 5 bar and uses a 1/8-27 NPTF fitting.
The 10 to 184 ? outlet must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. This version does not include an alarm contact.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: 360-081-032-001C
- Type: Oil pressure sensor
- Measurement range: 0 to 5 bar
- Thread: 1/8-27 NPTF
- Resistive signal: 10 to 184 ?
- Operating voltage: 6 to 24 V DC
- Alarm contact: None

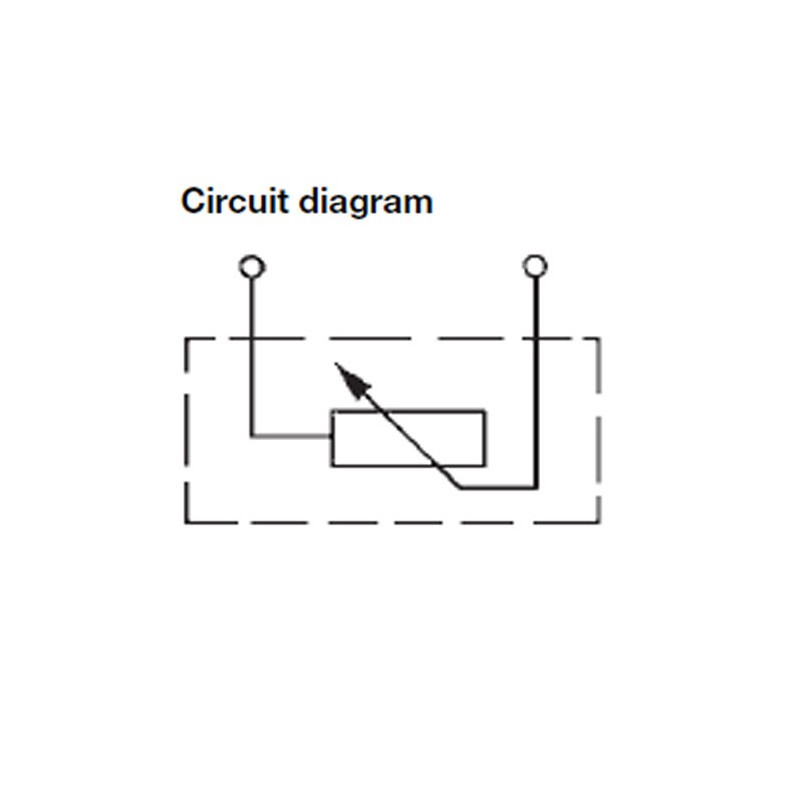

- Type of ground: Signal return isolated from ground

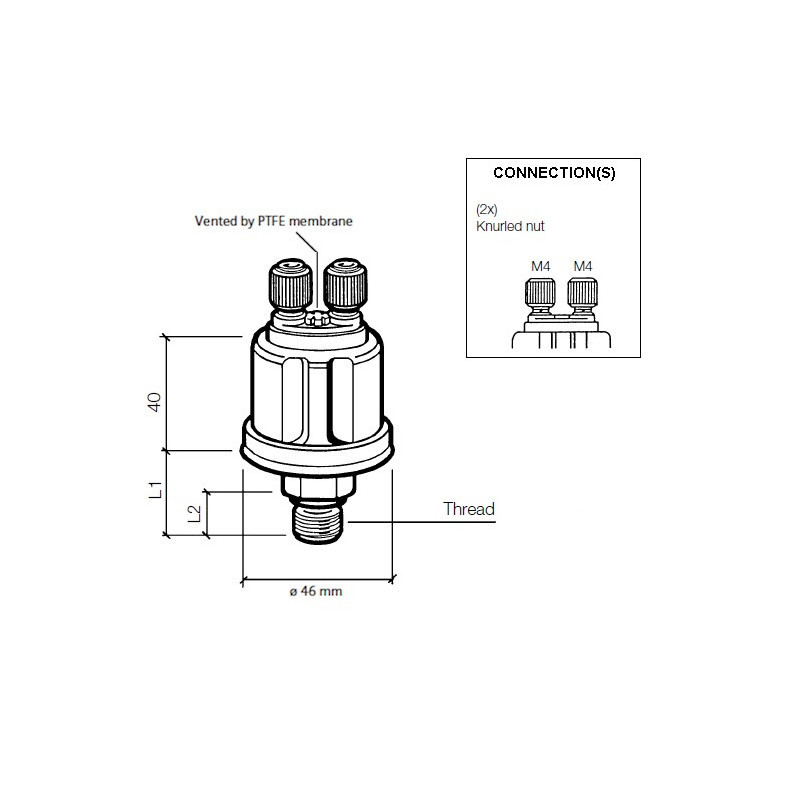

- Measurement connection: M4 plastic knurled nut
- Threaded length L2: 11 mm
- Thread length and hex length L1: 19.5 mm
Compatibility and Mounting
Check the 1/8-27 NPTF thread, the resistance curve, and the connection before mounting. Make the connection according to the probe and instrument manuals.
-
Sensor typeTurbo Pressure
