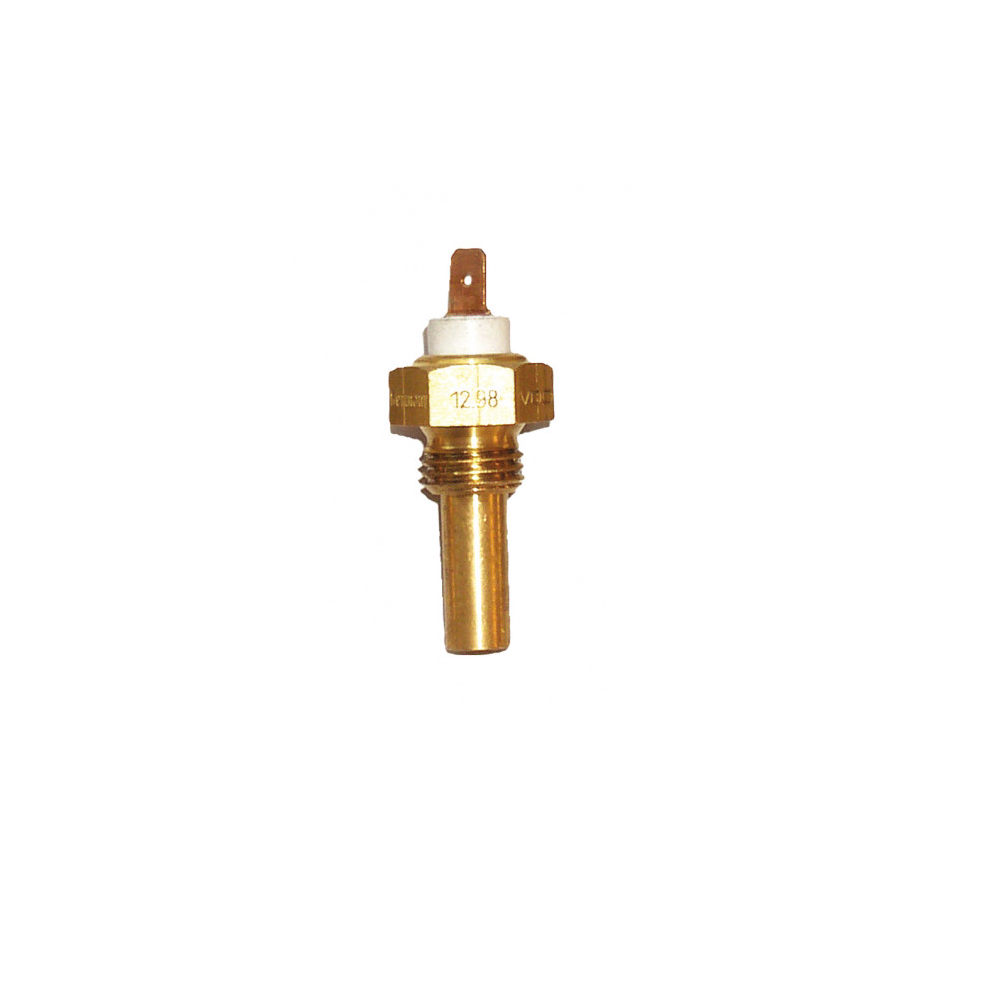

VDO Oil Temperature Sensor, +50 to 150 °C, M12×150
Reference:
V-010003
Supplier Ref.:
A2C1755410001
Oil temperature measurement with this VDO oil temperature sensor is based on a resistive signal ranging from 322.8 to 18.6 ?. This part number covers temperatures from +50 to 150 °C and uses an M12×150 connector.
The 322.8 to 18.6 ? outlet must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. This version does not include an alarm contact.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: A2C1755410001
- Type: Oil temperature sensor
- Measurement range: +50 to 150 °C
- Thread: M12×150

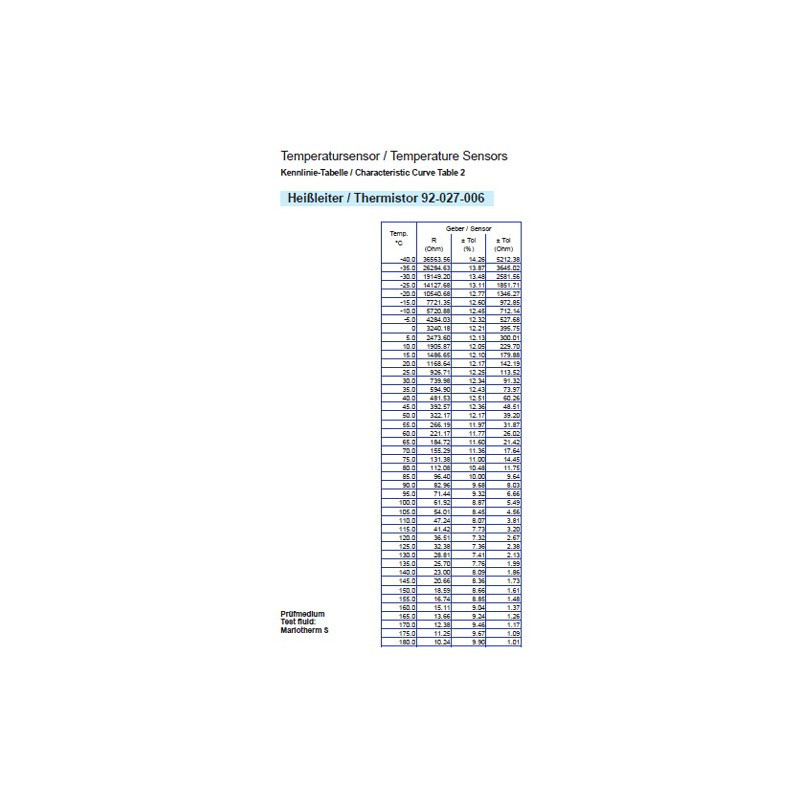

- Resistive signal: 322.8 to 18.6 ?
- Operating voltage: 6 to 24 V DC
- Alarm contact: None
- Type of grounding: Grounded through the probe body

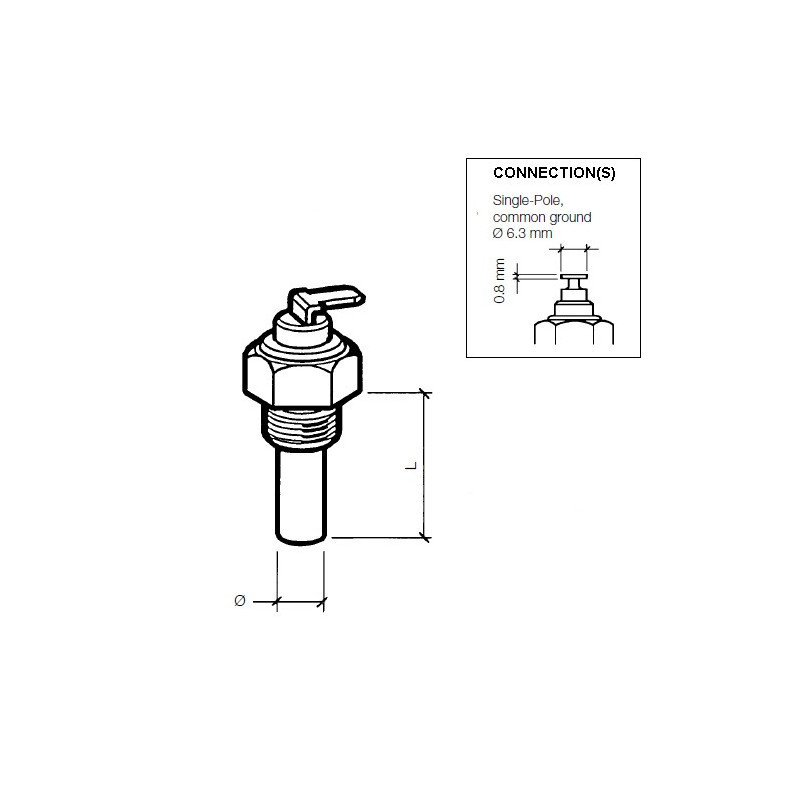

- Measurement connection: T-type flat plug, 6.3 × 0.8 mm
Compatibility and Mounting
Check the M12×150 thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
-
Sensor typeOil Temperature
