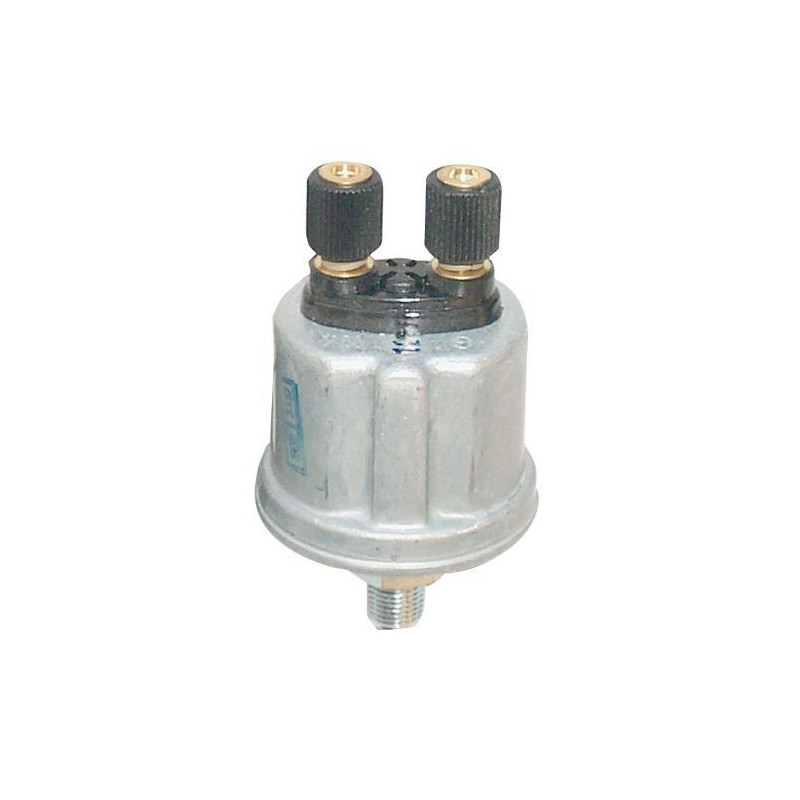

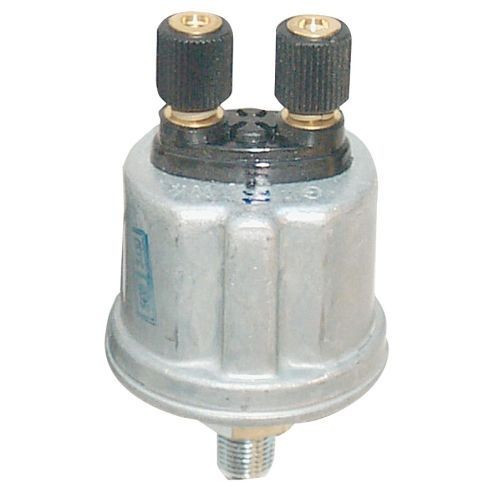

VDO Oil Pressure Sensor, 0–10 bar, M14×150, with 0.5 bar alert

Reference: V-030032

Supplier Ref.: 360-081-030-032C

Learn more

CHF 81.00 Tax included

CHF 90.00 -10% Discount

Promotion ends in: 04 D 19 H 09 M 09 S

In stock

Unavailable in store (Promasens)

Shipped on 2026-10-12 from our warehouse

CHF 90.00 -10%

CHF 81.00 (tax incl.)

Earn 81 loyalty points

The VDO 0–10 bar oil pressure sensor transmits oil pressure data to a compatible instrument. Its M14×150 connection determines how it is mechanically mounted on the circuit.

The 10 to 184 ? outlet must match the electrical specifications of the gauge or indicator being used. An identical display range is not sufficient to guarantee compatibility. The 0.50 bar ± 0.15 bar alarm contact provides a function separate from the measurement, to activate a compatible warning light.

Technical Specifications

Brand: VDO
Manufacturer Part Number: 360-081-030-032C
Type: Oil pressure sensor
Measurement range: 0 to 10 bar
Thread: M14×150

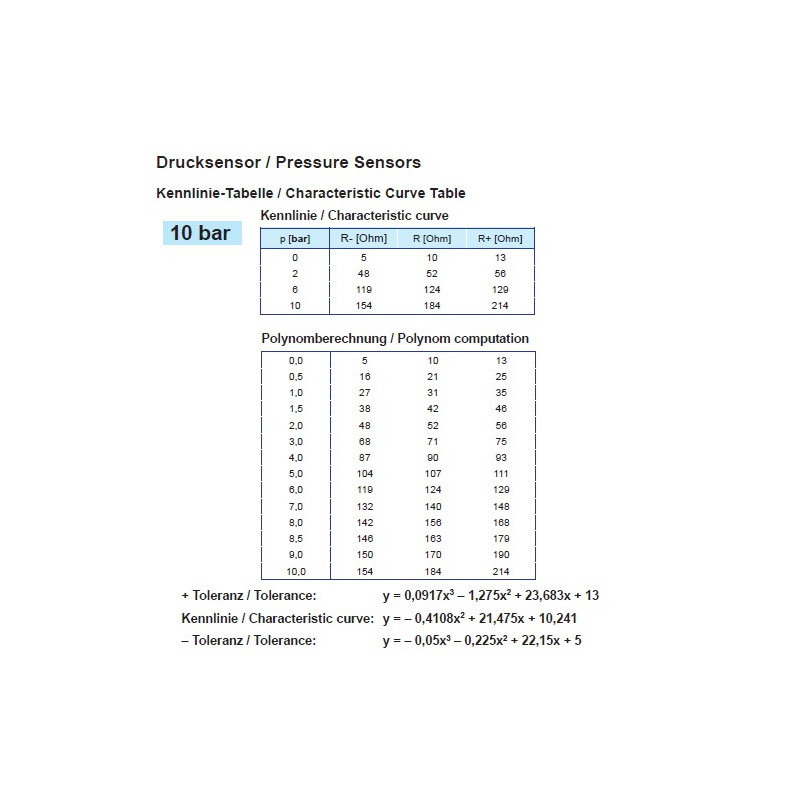

Resistive signal: 10 to 184 ?
Operating voltage: 6 to 24 V DC

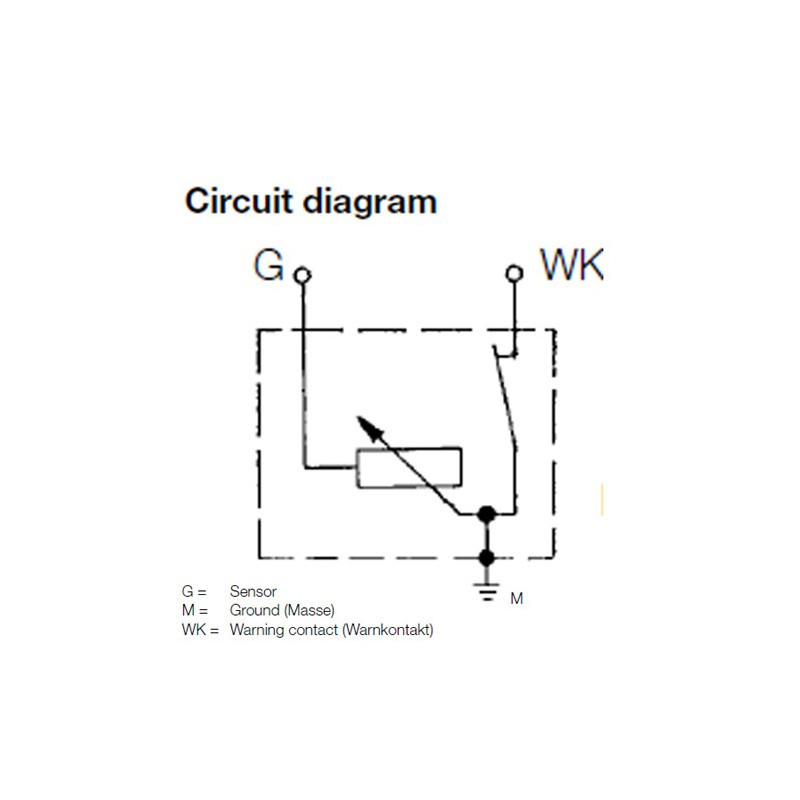

Contact d’alerte : 0.50 bar ± 0.15 bar
Type of grounding: Grounded through the probe body
Measurement connection: M4 plastic knurled nut
Alarm contact connection: M4 plastic knurled nut

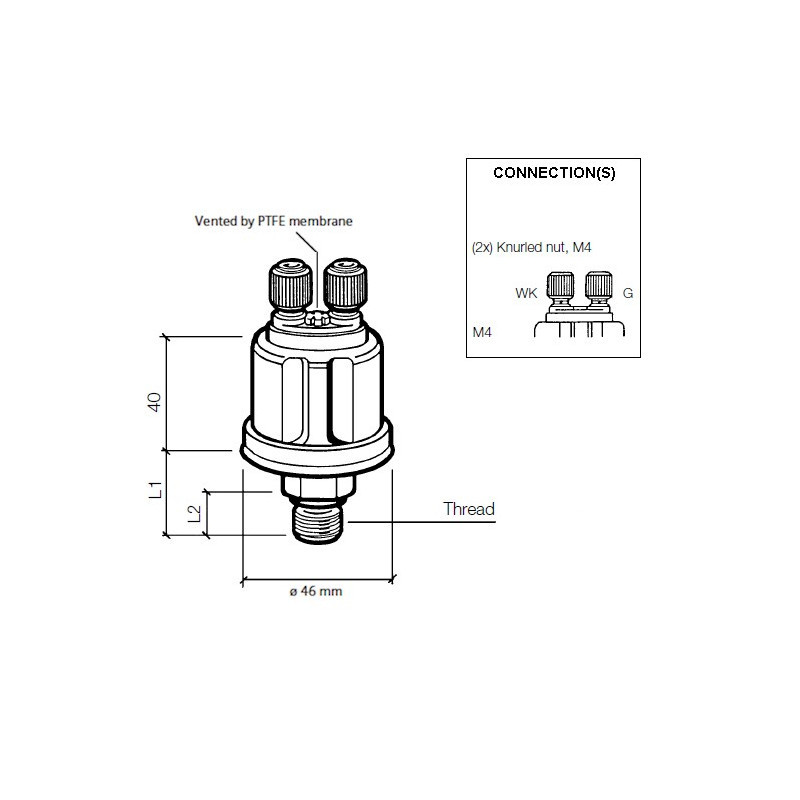

Threaded length L2: 12 mm
Thread and hex length L1: 20.5 mm
Contact operation: Closes when pressure drops

Compatibility and Mounting

Check the M14×150 thread, the resistance curve, and the connection before mounting. The body must maintain electrical continuity with the circuit ground.
