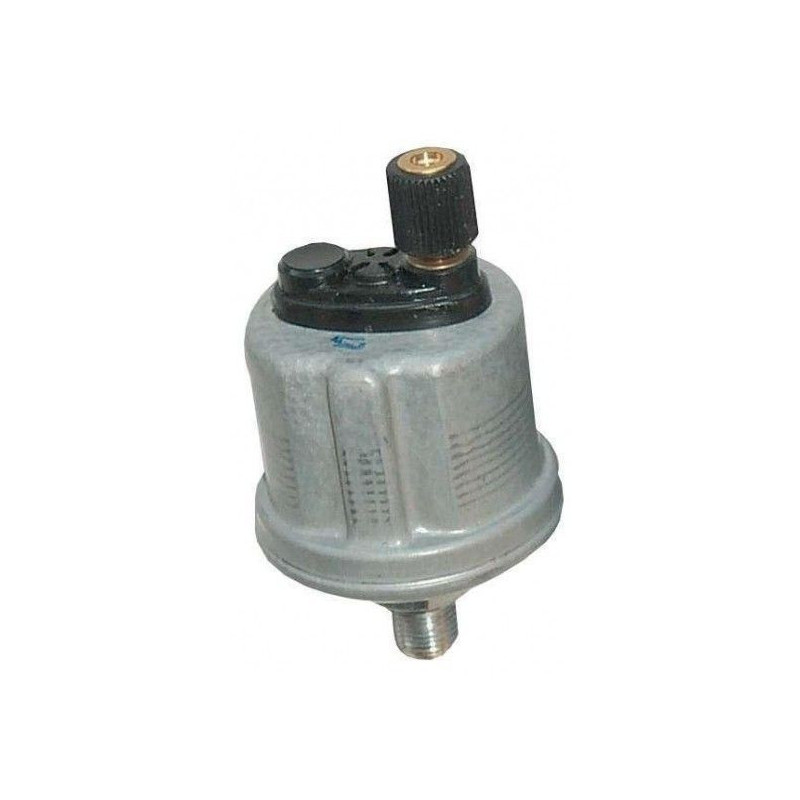

Oil pressure measurement with this VDO oil pressure sensor is based on a resistive signal ranging from 10 to 184 ?. This part number covers 0 to 10 bar and uses a 1/8-27 NPTF fitting.
The 10 to 184 ? outlet must match the electrical characteristics of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. This version does not include an alarm contact.

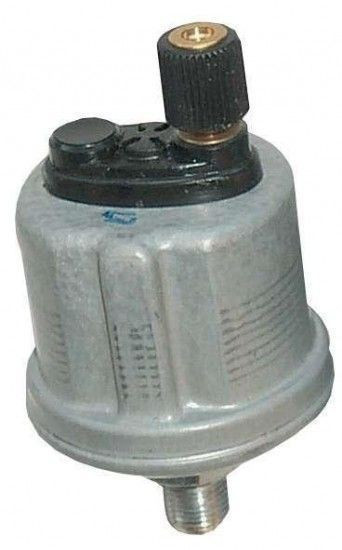

Technical Specifications
- Brand: VDO
- Manufacturer Part Number: 360-081-029-012C
- Type: Oil pressure sensor
- Measurement range: 0 to 10 bar
- Thread: 1/8-27 NPTF
- Resistive signal: 10 to 184 ?
- Operating voltage: 6 to 24 V DC
- Alarm contact: None

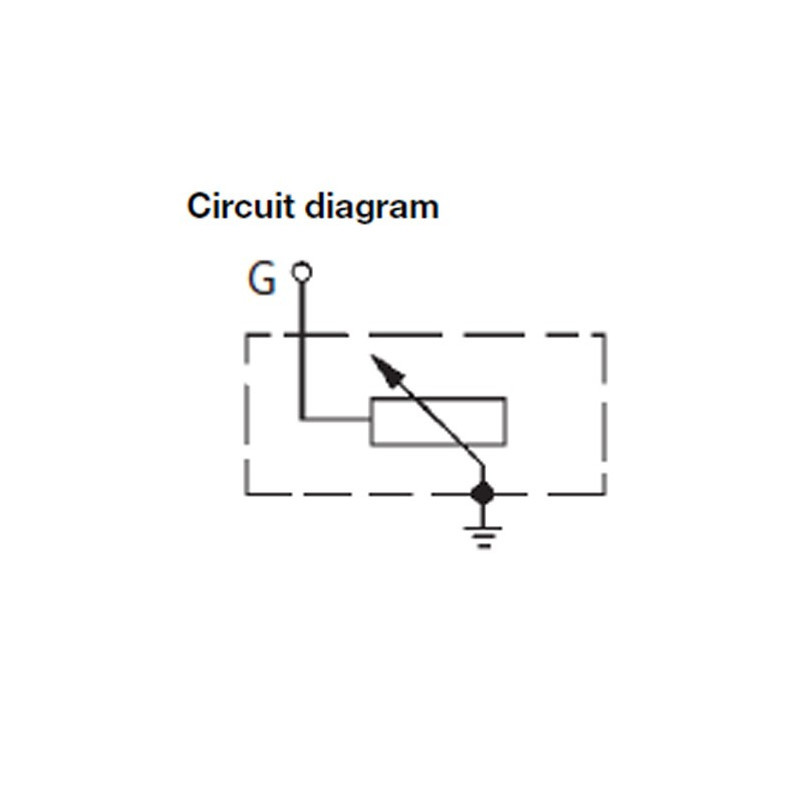

- Type of grounding: Grounded through the probe body
- Measurement connection: M4 plastic knurled nut

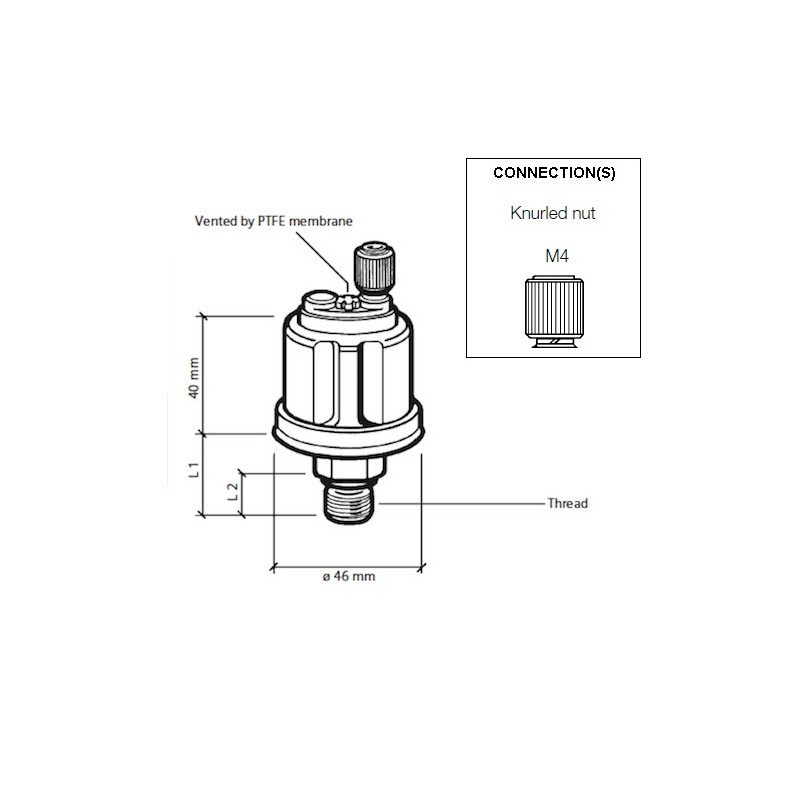

- Threaded length L2: 11 mm
- Thread and hex length L1: 19.5 mm

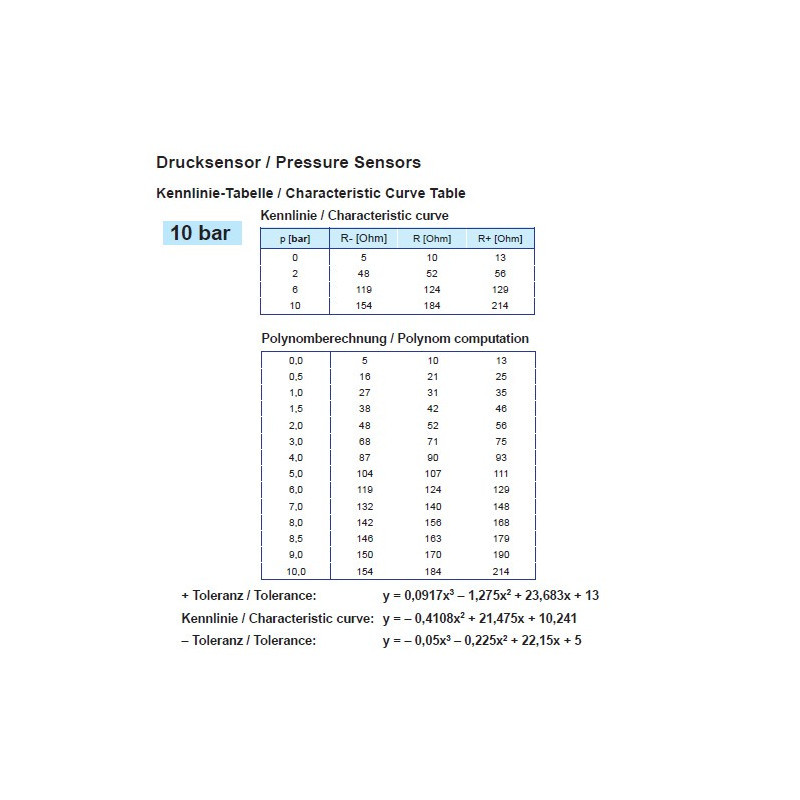

Compatibility and Mounting
Check the 1/8-27 NPTF thread, the resistance curve, and the connection before mounting. The body must maintain electrical continuity with the circuit ground.
