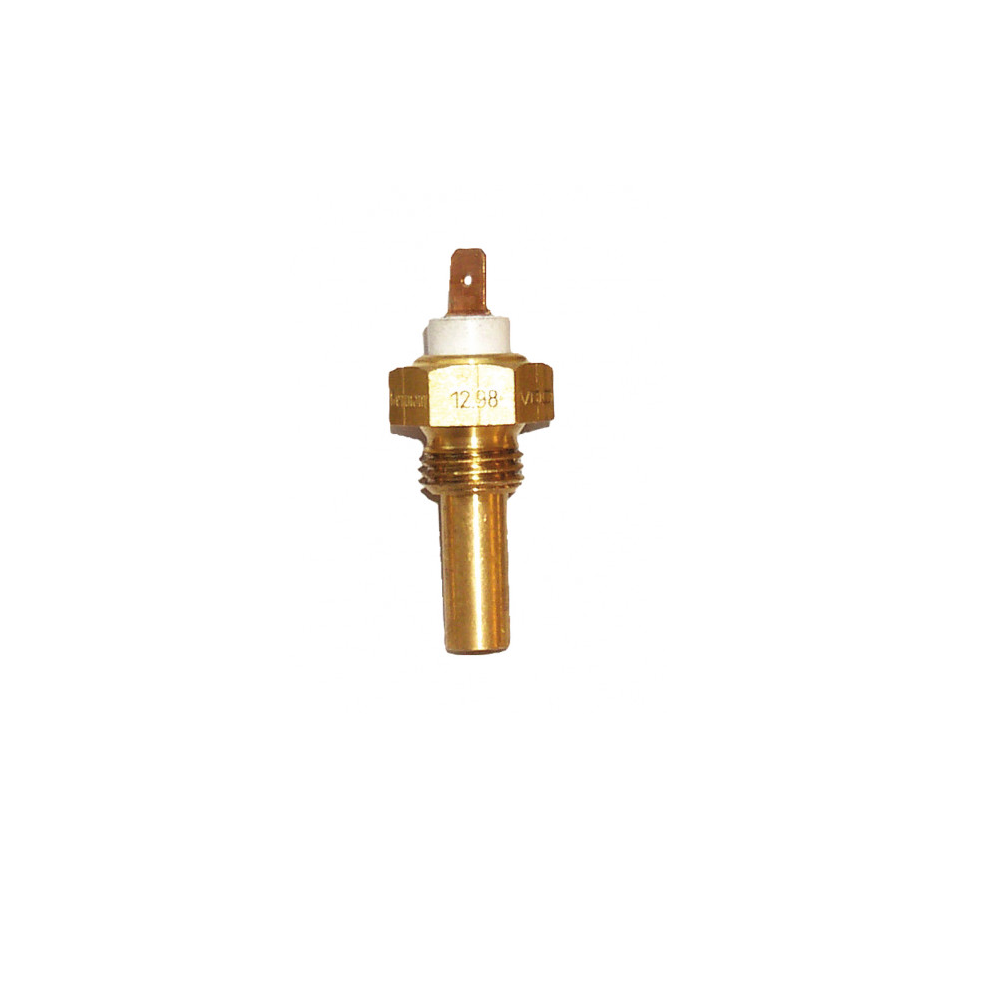

VDO Oil Temperature Sensor, +50 to 150 °C, 1/2-14 NPTF
Reference:
V-004007
Supplier Ref.:
323-801-004-007D
The VDO oil temperature sensor (+50 to 150 °C ) transmits oil temperature data to a compatible instrument. Its 1/2-14 NPTF connection determines how it is mechanically mounted on the circuit.
The outlet range of 322.8 to 18.6 ? must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. This version does not include an alarm contact.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: 323-801-004-007D
- Type: Oil temperature sensor
- Measurement range: +50 to 150 °C
- Thread: 1/2-14 NPTF

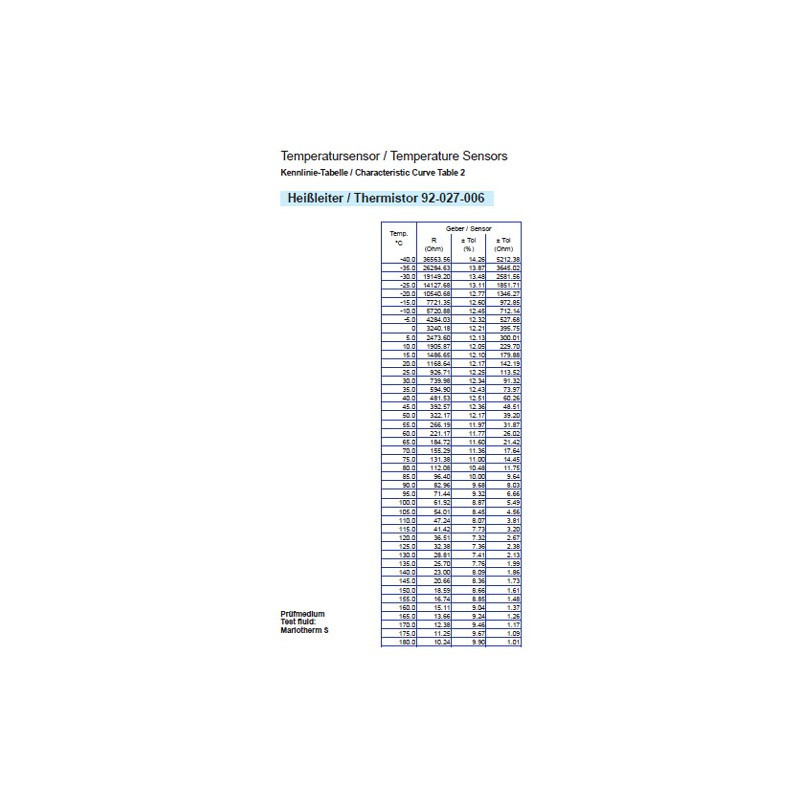

- Resistive signal: 322.8 to 18.6 ?
- Operating voltage: 6 to 24 V DC
- Alarm contact: None
- Type of mass: Mass via probe body

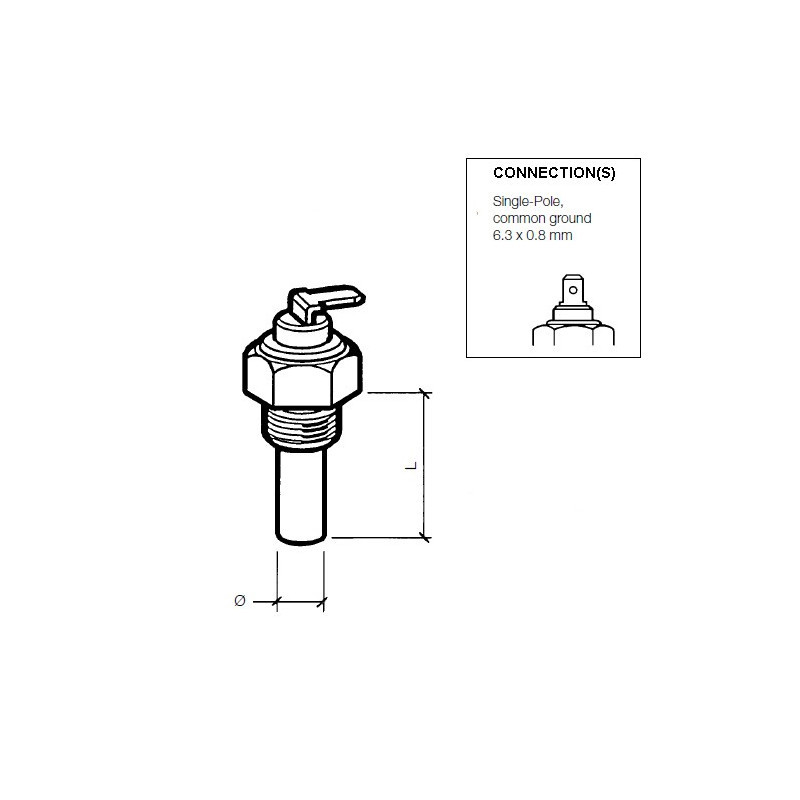

- Measurement connection: 6.3 x 0.8 mm flat plug
Compatibility and Mounting
Check the 1/2-14 NPTF thread, the resistance curve, and the connection before mounting. The body must maintain electrical continuity with the circuit ground.
-
Sensor typeOil Temperature
