VDO Mounting and Connection Kit for Mechanical Pressure Gauge
Reference:
V-800-005-022G
Supplier Ref.:
800-005-022G
The VDO pressure gauge mounting and connection kit includes the mounting and connection parts required for compatible instruments in the Cockpit International range.
The hose fitting includes an M12×150 nut. The connection parts are designed for a pressure hose with an outside diameter of 6 mm and an inner diameter of 4 mm, or a copper tube measuring 6 × 1 mm.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: 800-005-022G
- Type: Mounting and Connection Kit
- Applicable Range: VDO Cockpit International, compatible mechanical gauges
- Connector: M12×150 nut
- Compatible tubing: Outer diameter 6 mm, inner diameter 4 mm
- Compatible copper tubing: 6 × 1 mm

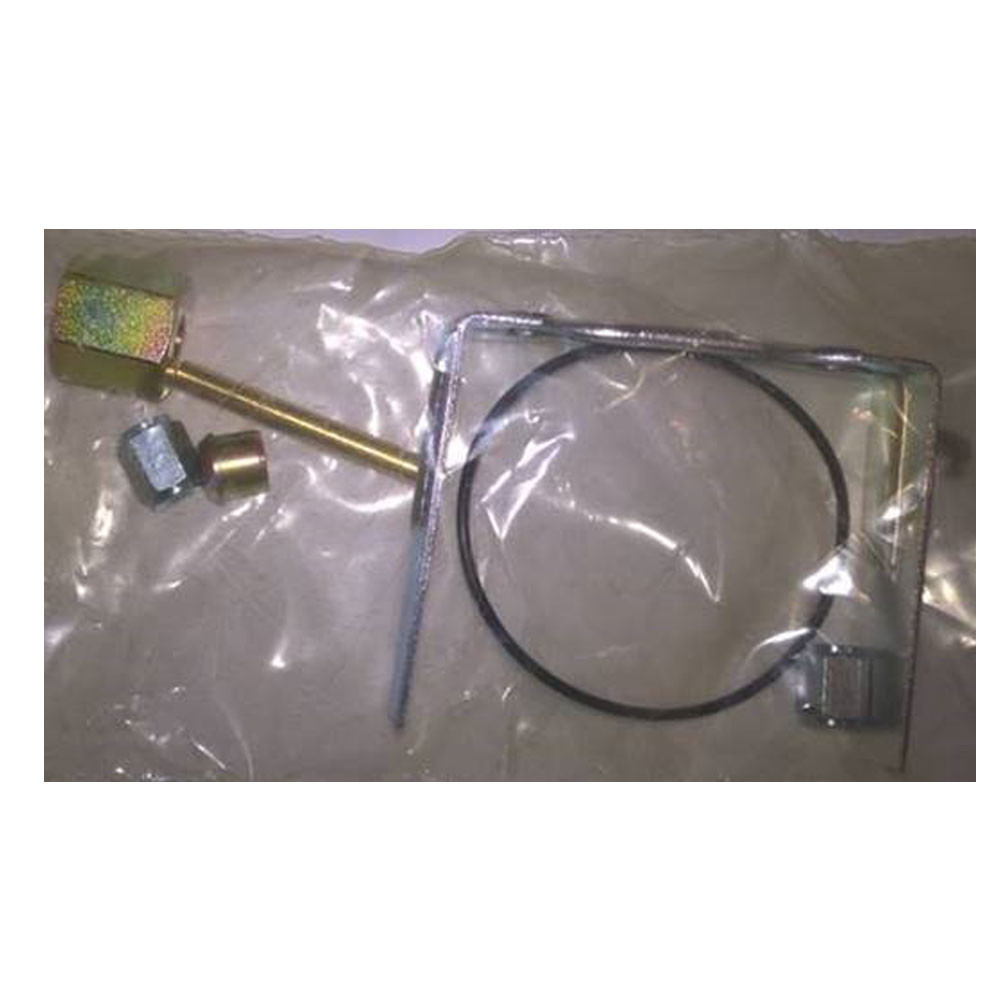

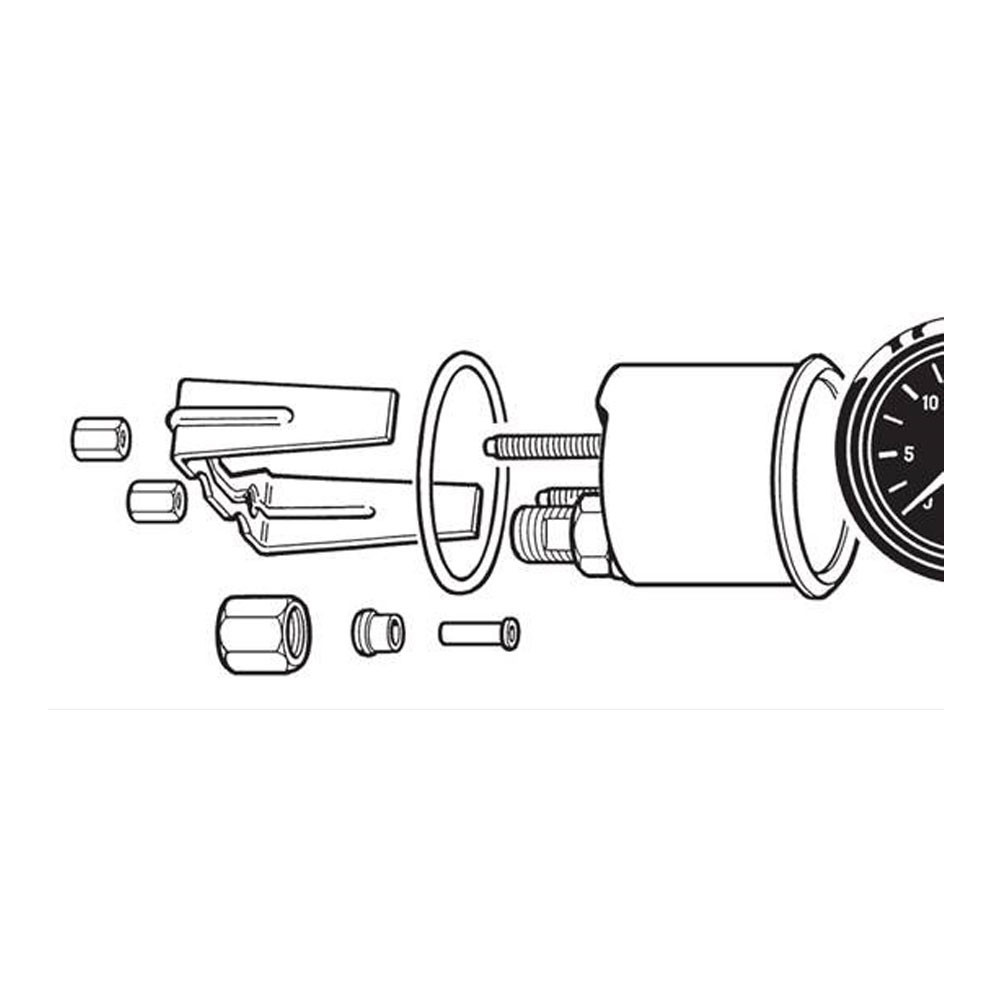

- Contents: Mounting bracket, nut, hose socket, clamping ring, and connection nut
Compatibility and Mounting
Verify that the fitting and mounting bracket are compatible with the gauge. The hose sizes specify the compatible tubing. Gauge and tubing not included in this kit.
