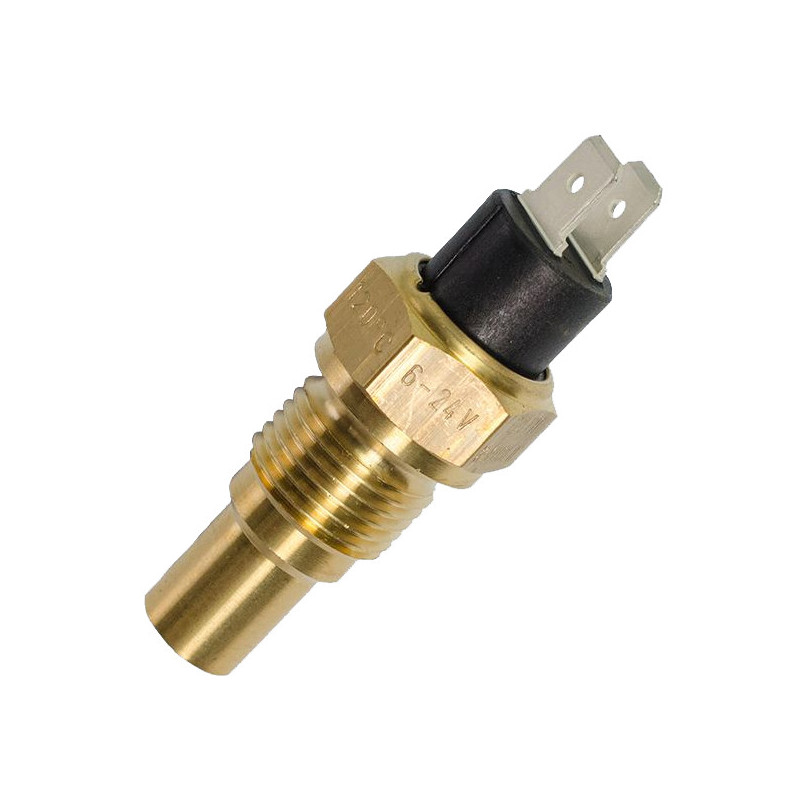

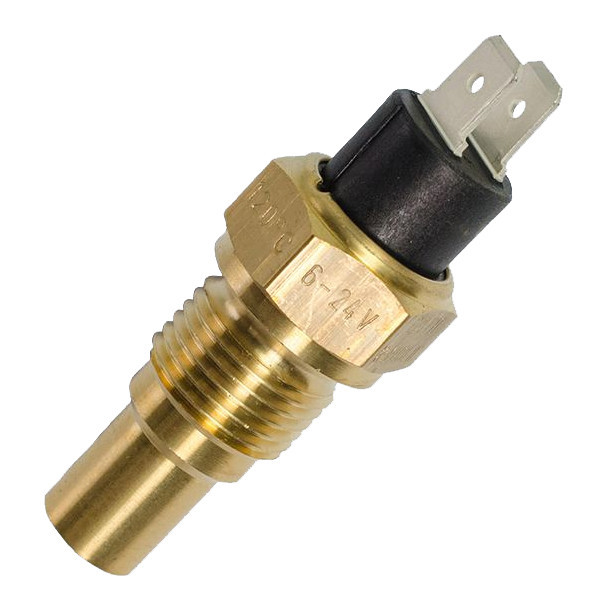

VDO Water Temperature Sensor, +40 to 120 °C, M14×150, 323-803-001-016D - V-001016 - 323-803-001-016D - 3661768217351

VDO Cooling Fluid Temperature Sensor, +40 to 120 °C, M14×150, with 94 °C Alert

Reference: V-001016

Supplier Ref.: 323-803-001-016D

Learn more

CHF 62.19 Tax included

CHF 69.10 -10% Discount

Promotion ends in: 04 D 19 H 56 M 12 S

In stock

Unavailable in store (Promasens)

Shipped on 2026-10-12 from our warehouse

CHF 69.10 -10%

CHF 62.19 (tax incl.)

Earn 62 loyalty points

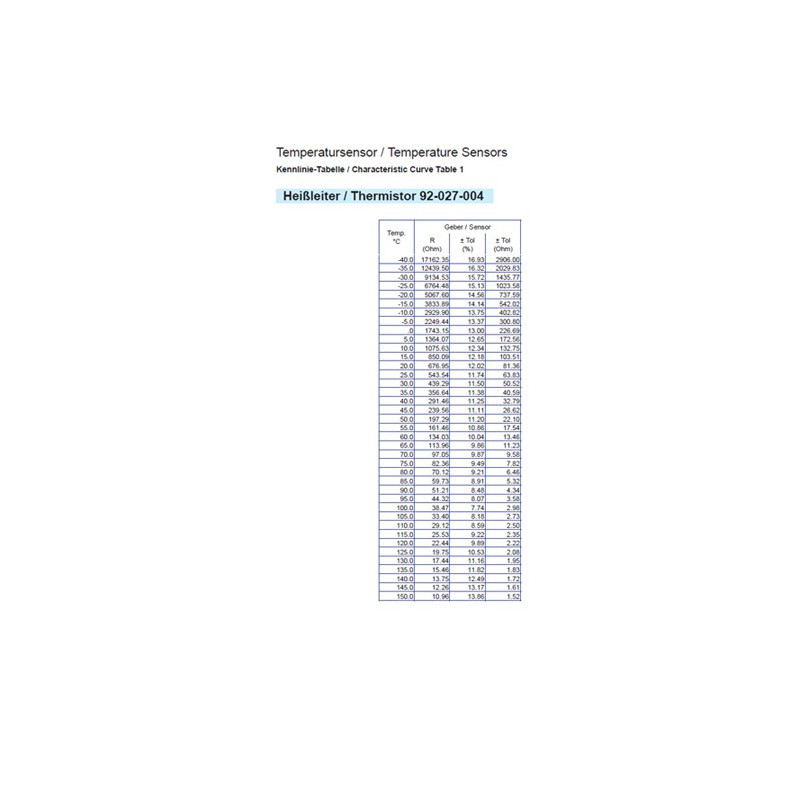

Cooling fluid temperature measurement with this VDO cooling fluid temperature sensor is based on a resistive signal ranging from 287.4 to 22.7 ?. This model covers a temperature range of +40 to 120 °C and uses an M14×150 connector.

The 287.4 to 22.7 ? outlet must match the electrical characteristics of the gauge or indicator being used. An identical display range is not sufficient to guarantee compatibility. The 94 °C ± 3 °C alarm contact provides a separate function from the measurement, designed to control a compatible warning light.

Technical Specifications

Brand: VDO
Manufacturer Part Number: 323-803-001-016D
Type: Cooling fluid temperature sensor
Measurement range: +40 to 120 °C
Thread: M14×150
Resistive signal: 287.4 to 22.7 ?
Operating voltage: 6 to 24 V DC
Contact d’alerte: 94 °C ± 3 °C
Type of grounding: Grounded through the probe body

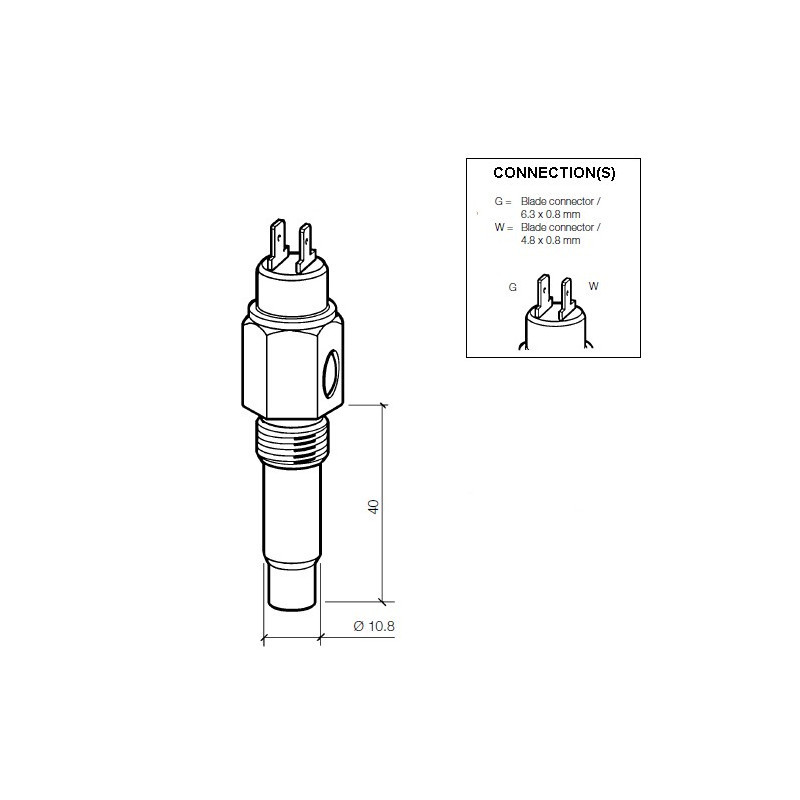

Measurement connection: 6.3 x 0.8 mm flat plug
Alarm contact connection: 6.3 x 0.8 mm flat plug

Compatibility and Mounting

Check the M14×150 thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
