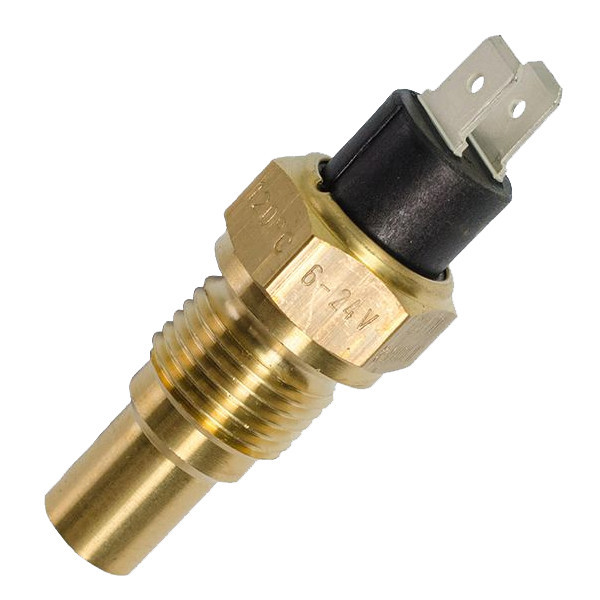

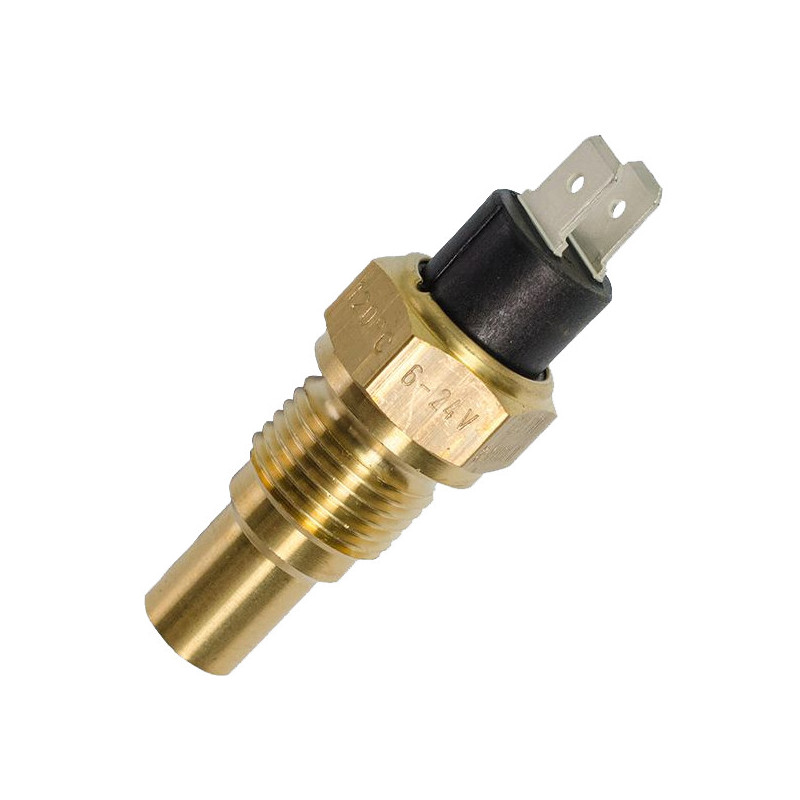

VDO Cooling Fluid Temperature Sensor +40 to 120 °C M14×150 with 80 °C Alert

Cooling fluid temperature measurement with this VDO cooling fluid temperature sensor is based on a resistive signal ranging from 287.4 to 22.7 ?. This model covers a temperature range of +40 to 120 °C and uses an M14×150 connector.

The 287.4 to 22.7 ? outlet must match the electrical characteristics of the gauge or indicator being used. An identical display range is not sufficient to guarantee compatibility. The 80 °C ± 3 °C alarm contact provides a separate function from the measurement, for controlling a compatible warning light.

Technical Specifications

• Brand: VDO
• Manufacturer Part Number: 323-803-001-023D
• Type: Cooling fluid temperature sensor
• Measurement range: +40 to 120 °C
• Thread: M14×150

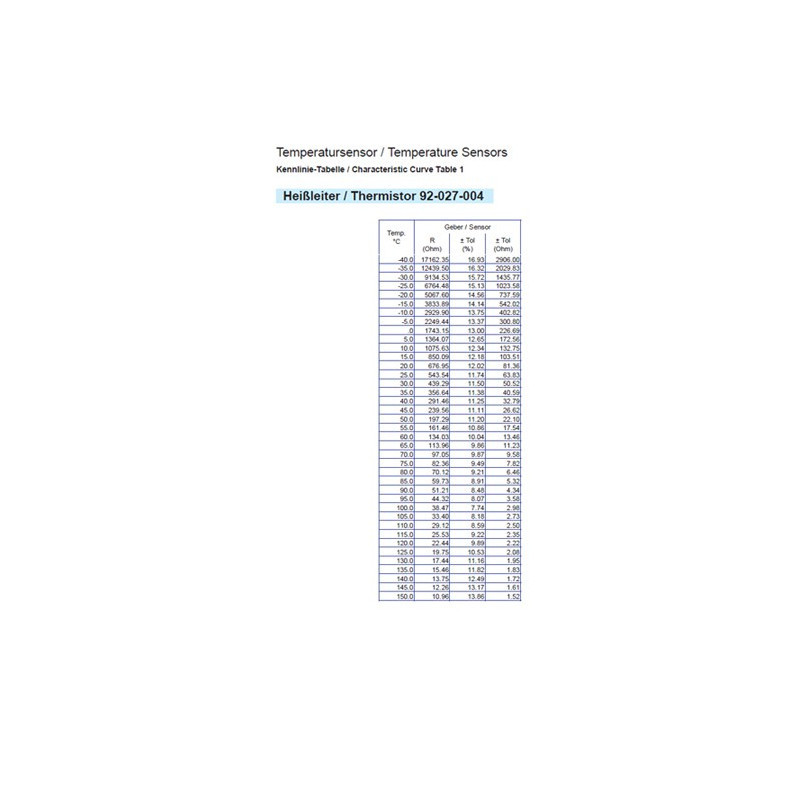

• Resistive signal: 287.4 to 22.7 ?
• Operating voltage: 6 to 24 V DC
• Contact d’alerte: 80 °C ± 3 °C
• Type of grounding: Grounded through the probe body

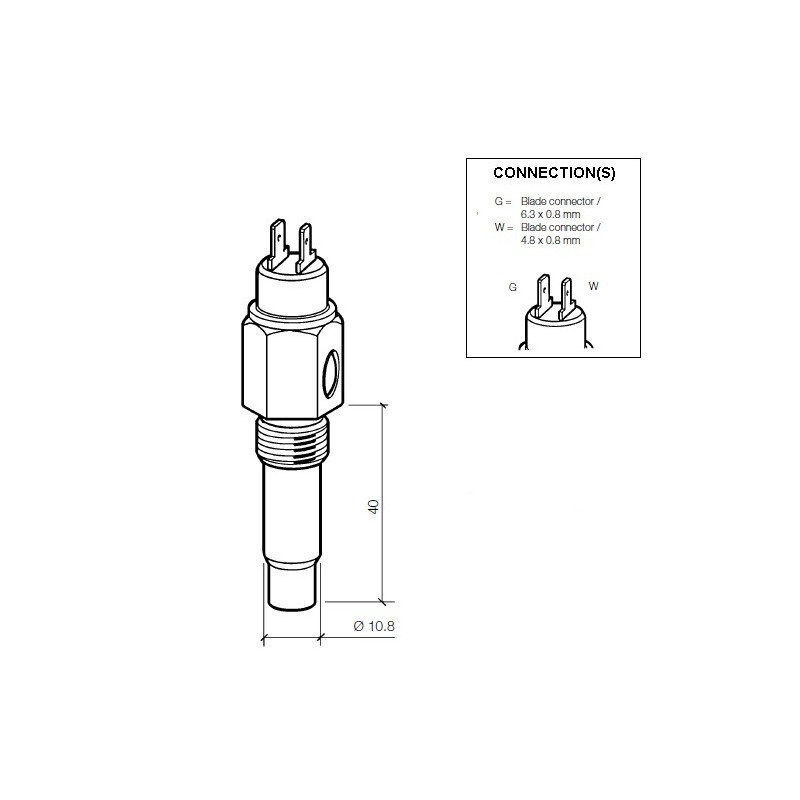

• Measurement connection: 6.3 x 0.8 mm flat plug
• Alarm contact connection: 6.3 x 0.8 mm flat plug

Compatibility and Mounting

Check the M14×150 thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
