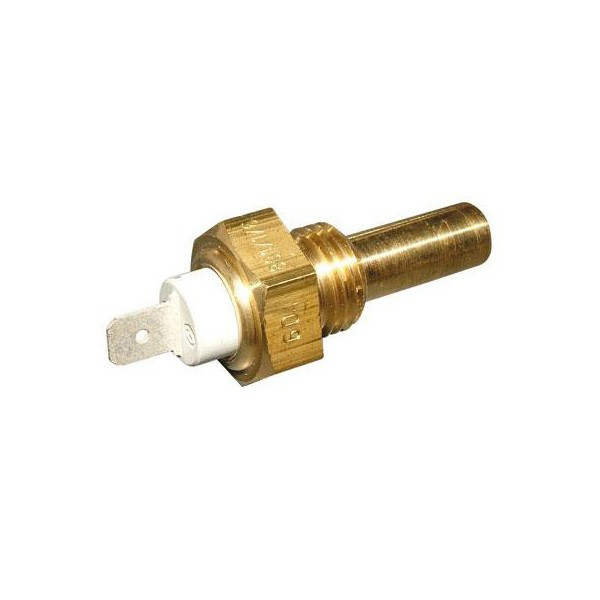

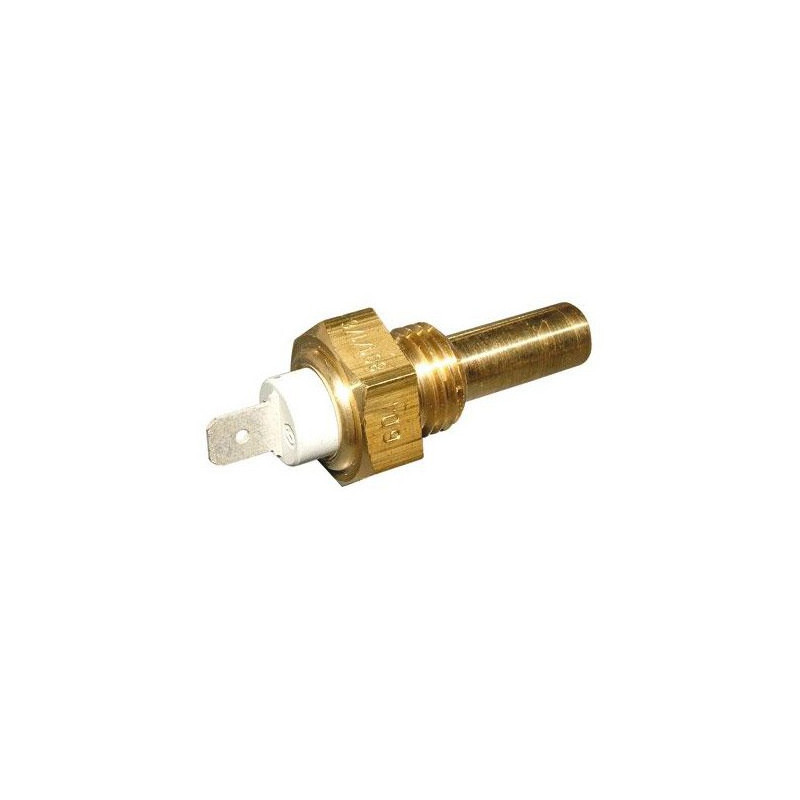

VDO Outdoor Temperature Sensor -25 to 50 °C M10x100
Reference:
V-323801008002D
Supplier Ref.:
323-801-008-002D

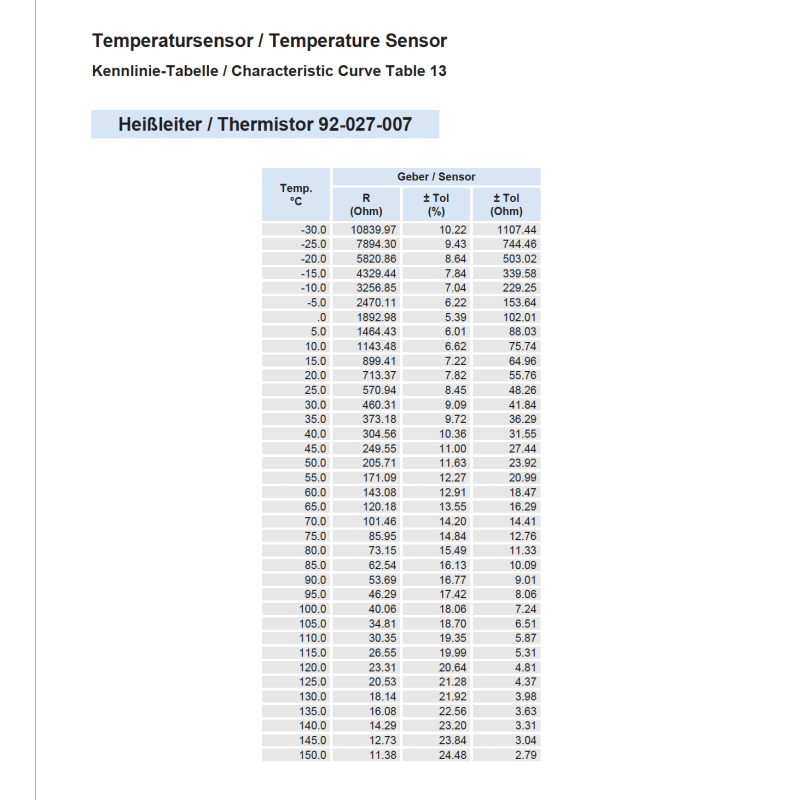

Outdoor temperature measurement with this VDO outdoor temperature sensor is based on a resistive signal of 1,892 ± 102 ? at 0 °C. This reference covers the range from -25 to 50 °C and uses an M10x100 connector.
The outlet of 1,892 ? at 0 °C must match the electrical characteristics of the gauge or indicator being used. An identical display range is not sufficient to guarantee compatibility. This version does not include an alarm contact.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: 323-801-008-002D
- Type: Outside temperature sensor
- Measurement range: -25 to 50 °c
- Thread: M10x100
- Resistive signal: 1,892 ? at 0 °C
- Operating voltage: 6 to 24 V DC
- Alarm contact: None
Compatibility and Mounting

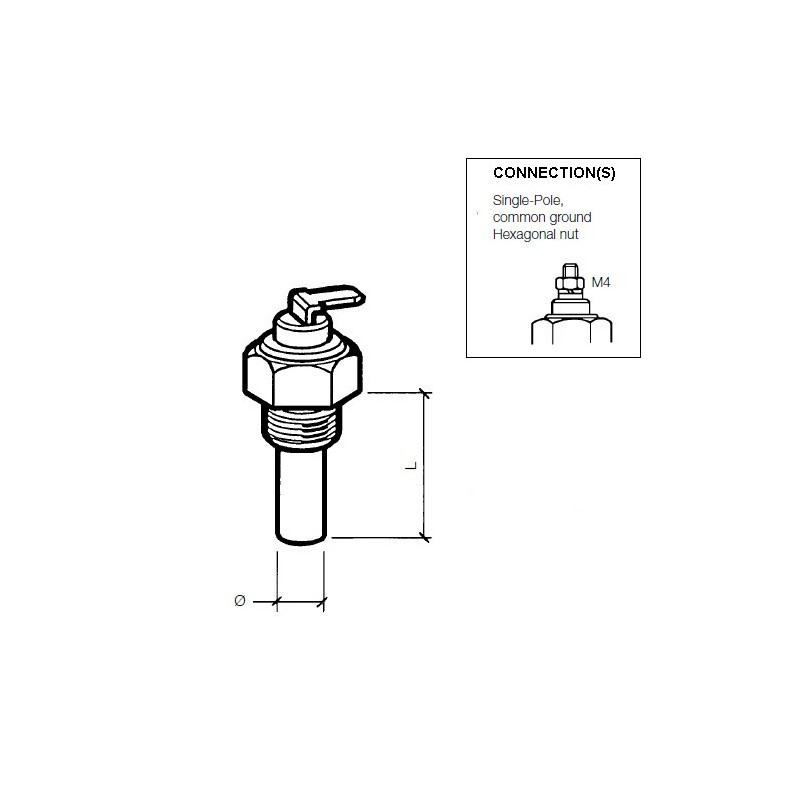

Check the M10x100 thread, the resistance curve, and the connection before mounting. Make the connection according to the instructions for the sensor and the instrument.
-
Sensor typeOutside Temperature
