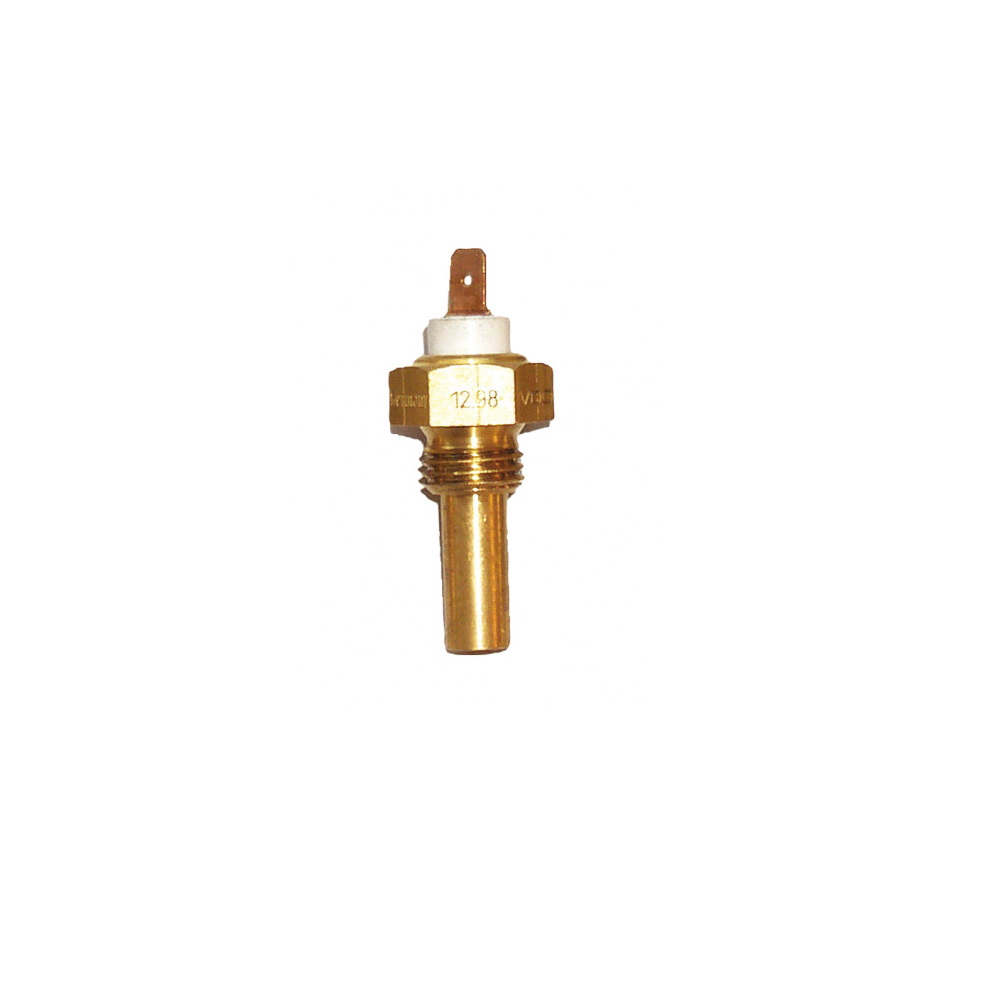

Oil temperature measurement with this VDO oil temperature sensor is based on a resistive signal ranging from 322.8 to 18.6 ?. This model covers temperatures from +50 to 150 °C and uses an M18×150 connector.
The 322.8 to 18.6 ? outlet must match the electrical specifications of the gauge or indicator being used. An identical display range is not sufficient to guarantee compatibility. This version does not include an alarm contact.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: A2C1755460001
- Type: Oil temperature sensor
- Measurement range: +50 to 150 °C
- Thread: M18×150

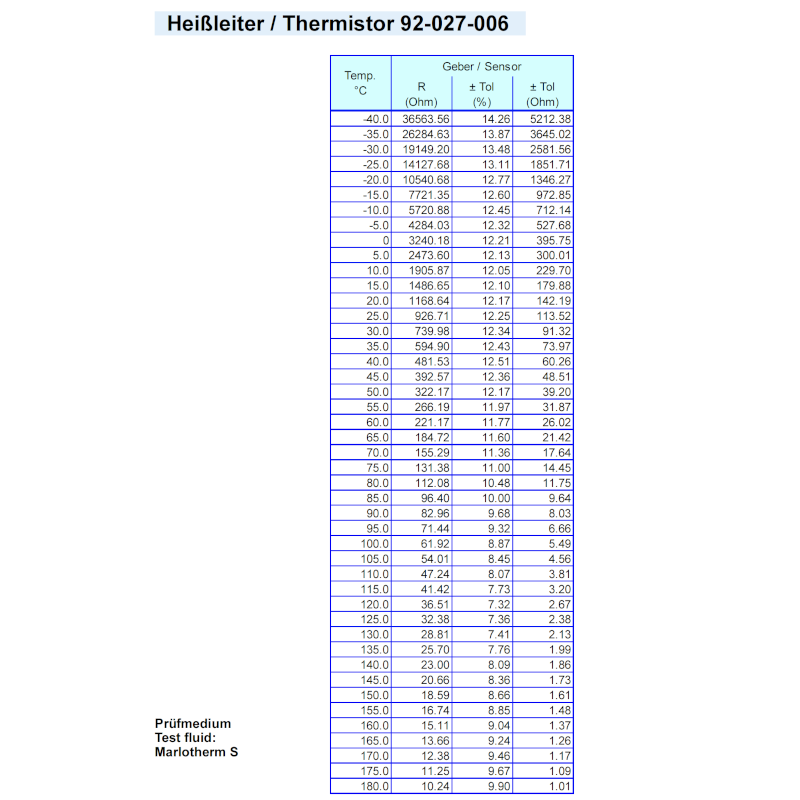

- Resistive signal: 322.8 to 18.6 ?
- Operating voltage: 6 to 24 V DC
- Alarm contact: None
- Type of mass: Mass via the probe body

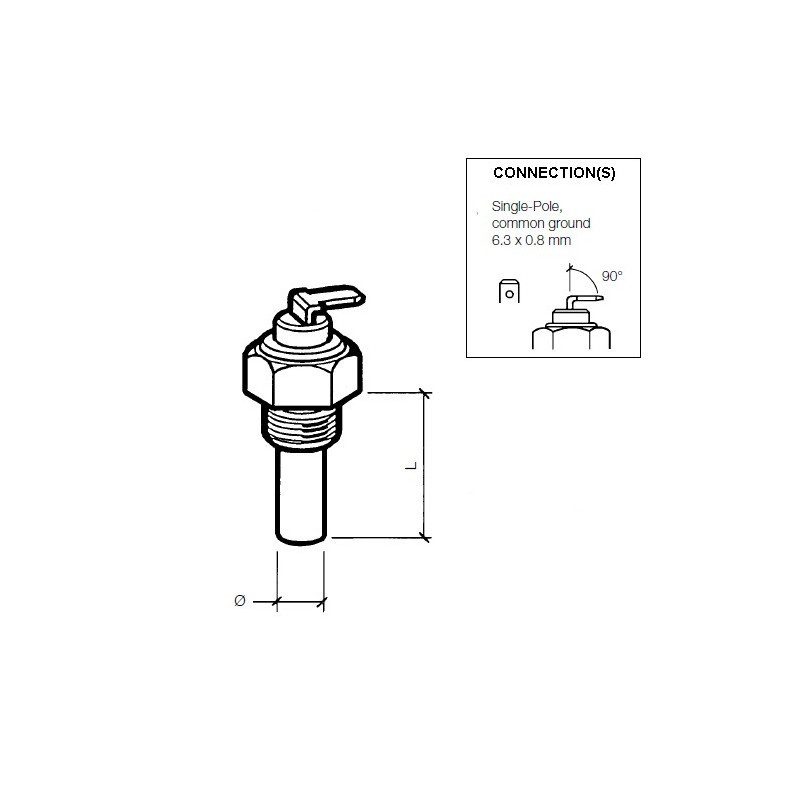

- Measurement connection: 6.3 x 0.8 mm flat plug
Compatibility and Mounting
Check the M18×150 thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
