VDO Oil Temperature Sensor, +50 to 150 °C, M14×150, 323-803-002-010C - V-002010 - 323-803-002-010C - 3661768217412

VDO Oil Temperature Sensor +50 to 150 °C M14×150 with 135 °C Alert

Reference: V-002010

Supplier Ref.: 323-803-002-010C

Learn more

CHF 53.28 Tax included

CHF 59.20 -10% Discount

Promotion ends in: 04 D 23 H 15 M 06 S

Available to order

Unavailable in store (Promasens)

Within 30 days on average.

CHF 59.20 -10%

CHF 53.28 (tax incl.)

Earn 53 loyalty points

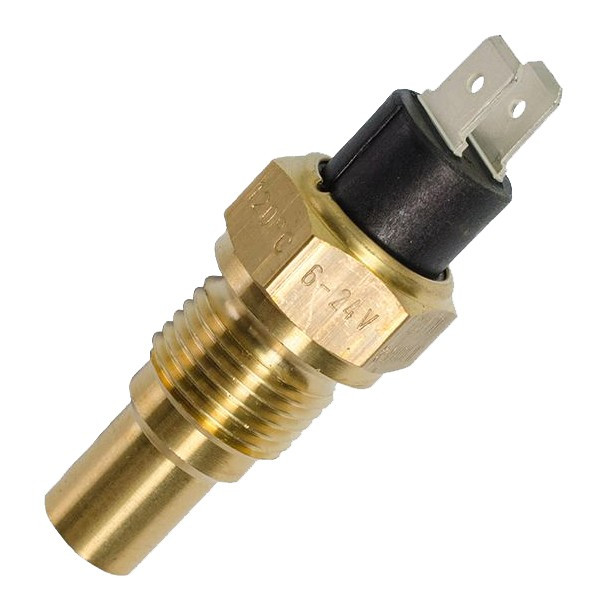

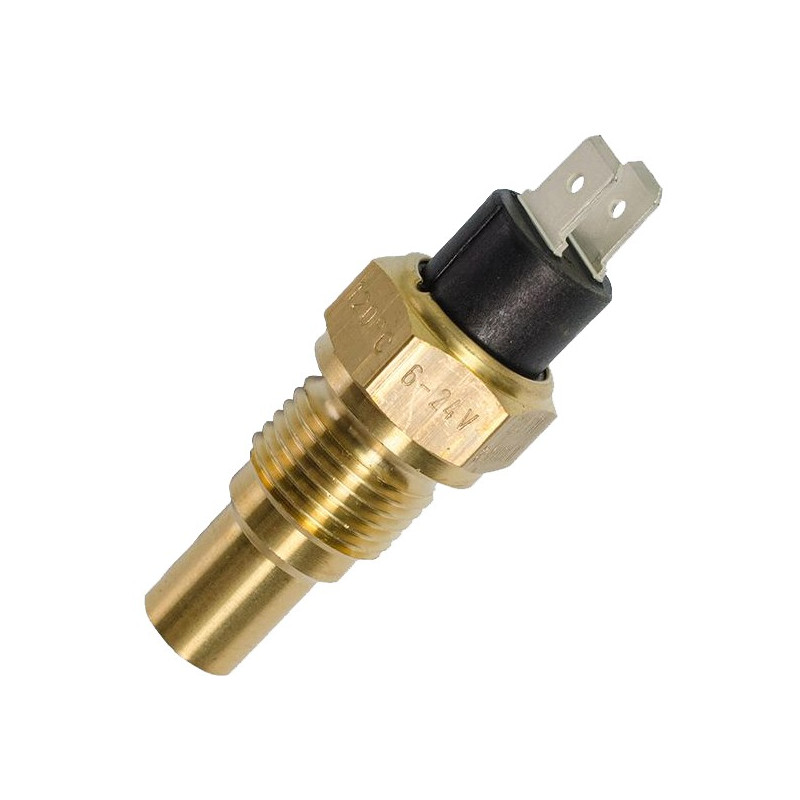

The VDO oil temperature sensor (+50 to 150 °C ) transmits oil temperature data to a compatible instrument. Its M14×150 connection determines the mechanical mounting on the circuit.

The outlet range of 322.8 to 18.6 ? must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. The 135 °C ± 3 °C alarm contact provides a function separate from the measurement, designed to activate a compatible warning light.

Technical Specifications

Brand: VDO
Manufacturer Part Number: 323-803-002-010C
Type: Oil Temperature Sensor
Measurement range: +50 to 150 °C
Thread: M14×150

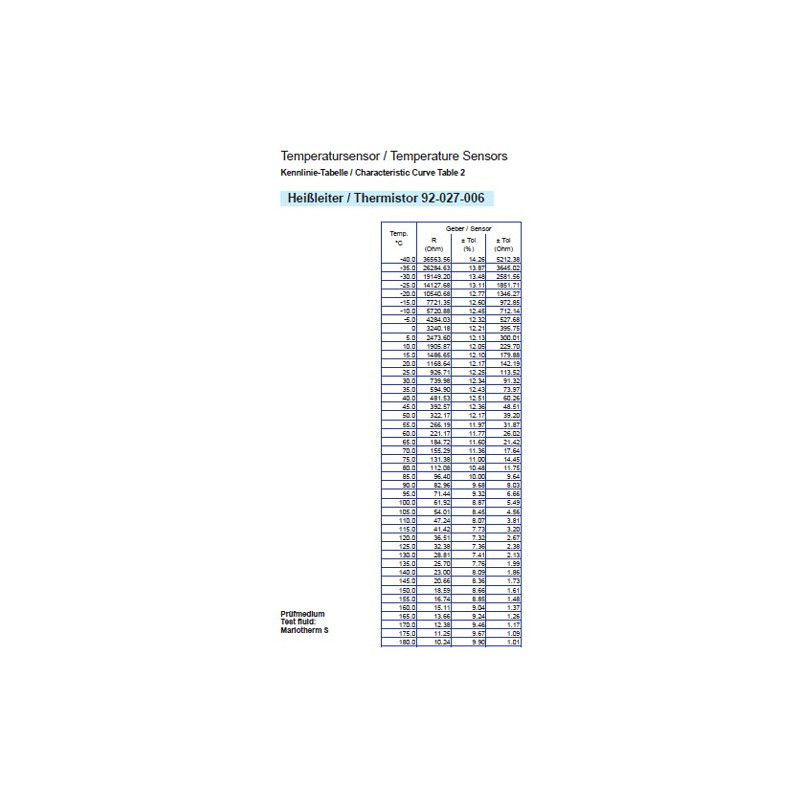

Resistive signal: 322.8 to 18.6 ?
Operating voltage: 6 to 24 V DC
Contact d’alerte: 135 °C ± 3 °C
Type of grounding: Grounded through the probe body

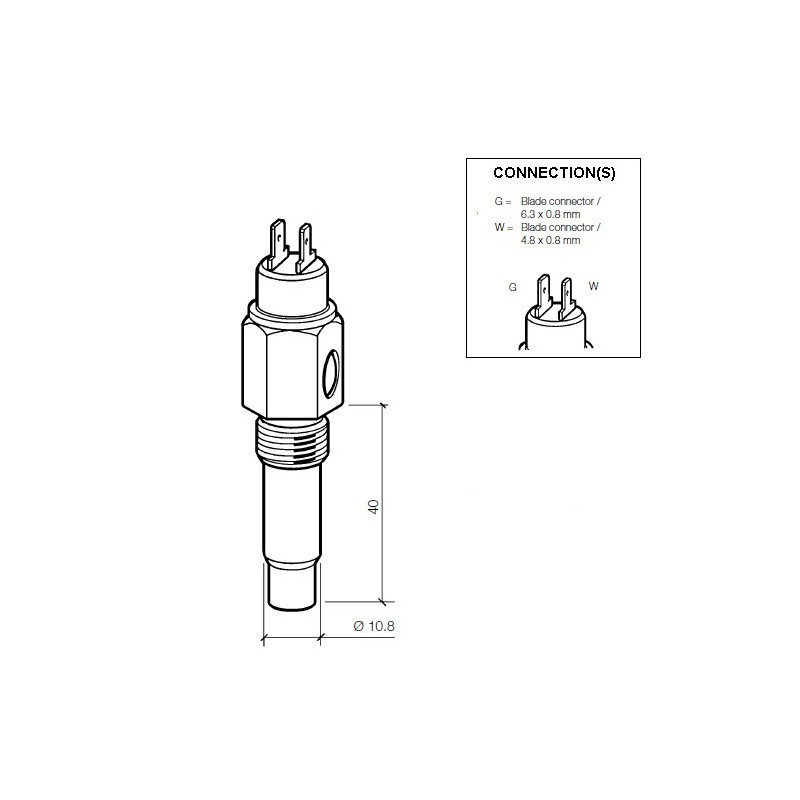

Measurement connection: 6.3 x 0.8 mm flat plug
Alarm contact connection: 6.3 x 0.8 mm flat plug

Compatibility and Mounting

Check the M14×150 thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
