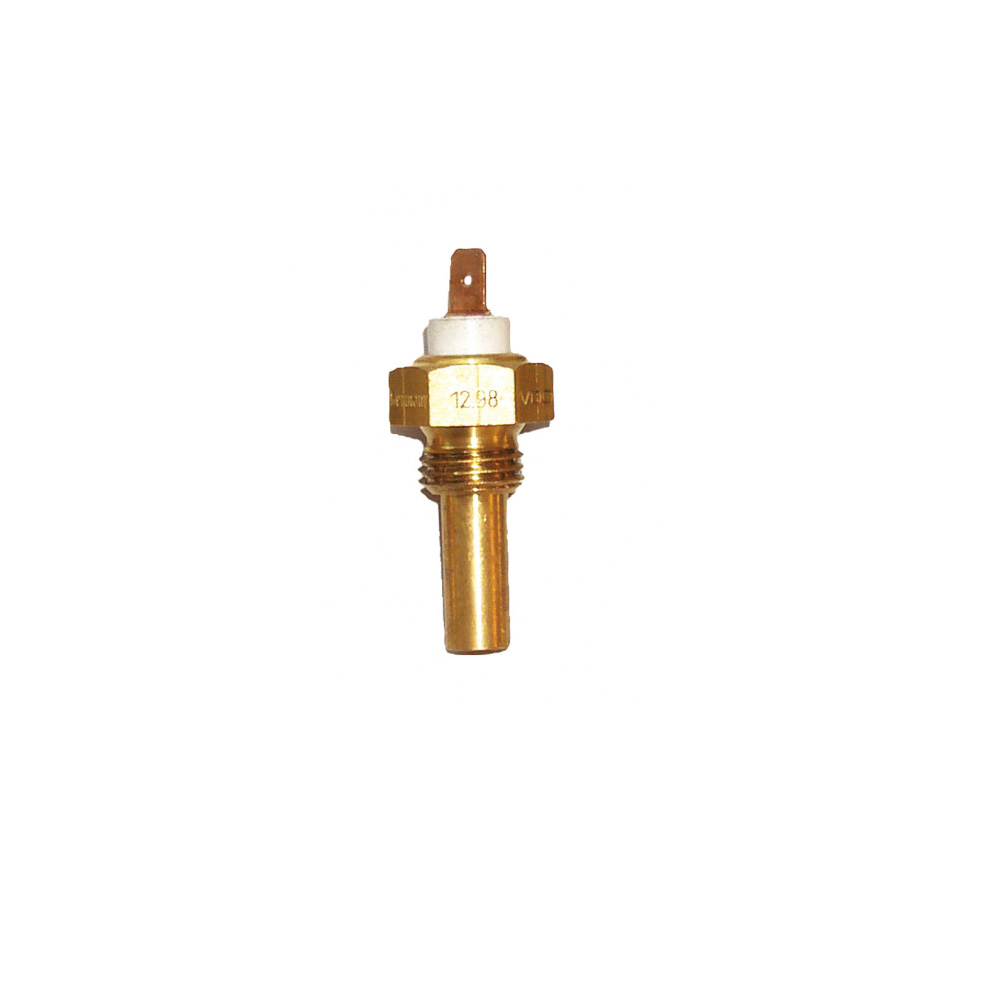

VDO Oil Temperature Sensor, +50 to 150 °C, M14×150
Reference:
V-012002
Supplier Ref.:
A2C1755440001
The VDO oil temperature sensor (+50 to 150 °C ) transmits oil temperature data to a compatible instrument. Its M14×150 connection determines the mechanical mounting on the circuit.
The outlet range of 322.8 to 18.6 ? must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. This version does not include an alarm contact.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: A2C1755440001
- Type: Oil temperature sensor
- Measurement range: +50 to 150 °C
- Thread: M14×150

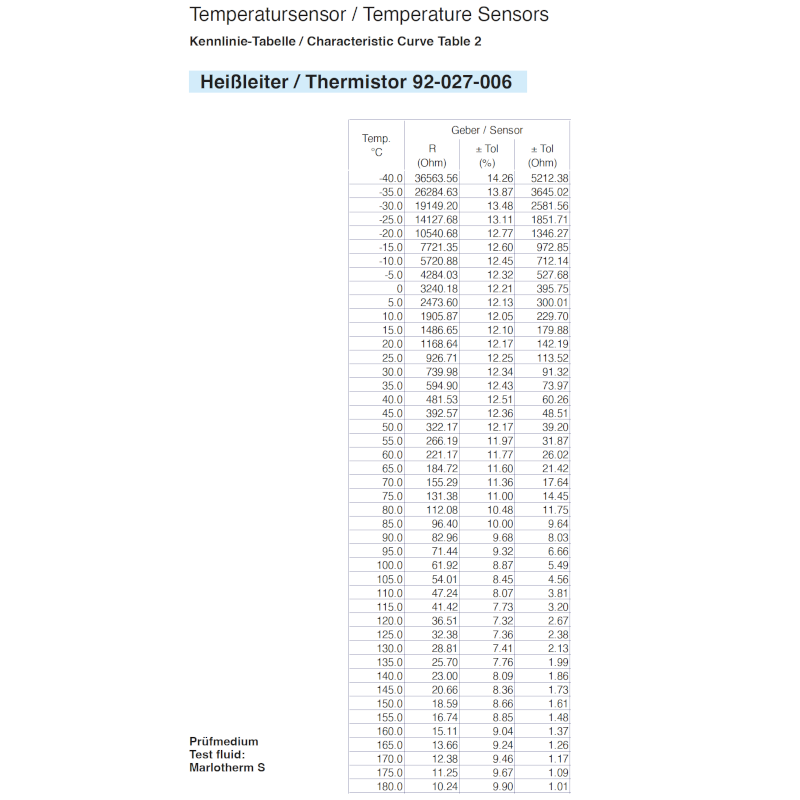

- Resistive signal: 322.8 to 18.6 ?
- Operating voltage: 6 to 24 V DC
- Alarm contact: None
- Type of mass: Mass via the probe body

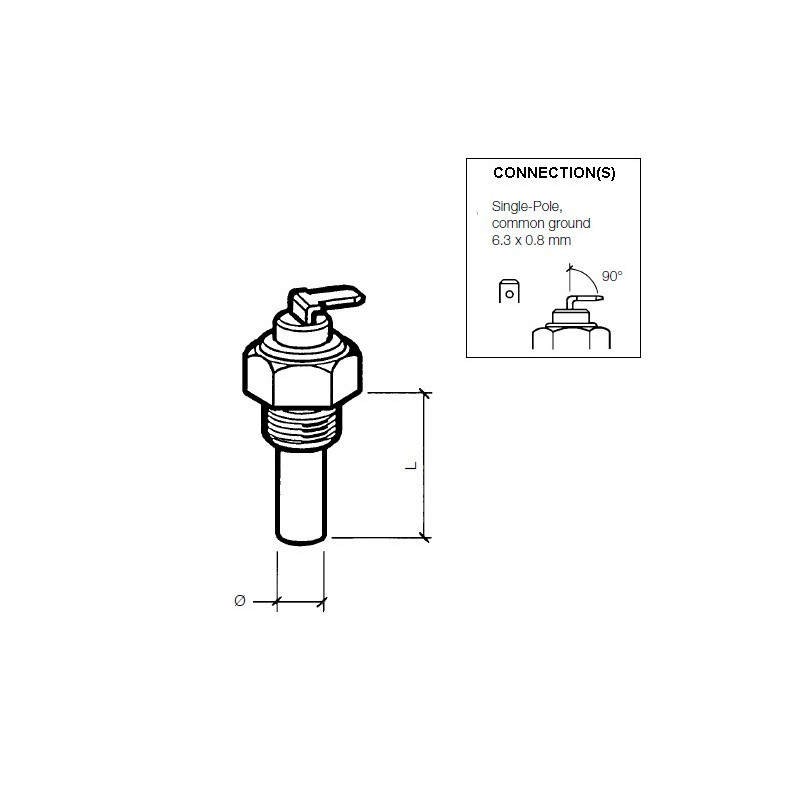

- Measurement connection: 6.3 x 0.8 mm flat plug
Compatibility and Mounting
Check the M14×150 thread, the resistance curve, and the connection before mounting. The probe body must maintain electrical continuity with the circuit ground.
-
Sensor typeOil Temperature
