VDO Oil Pressure Sensor, 0–10 bar, M18×150, with 0.50 bar alert

Reference: V-030074C

Supplier Ref.: 360-081-030-074C

Learn more

CHF 82.80 Tax included

CHF 92.00 -10% Discount

Promotion ends in: 04 D 19 H 08 M 06 S

Available to order

Unavailable in store (Promasens)

Within 30 days on average.

CHF 92.00 -10%

CHF 82.80 (tax incl.)

Earn 82 loyalty points

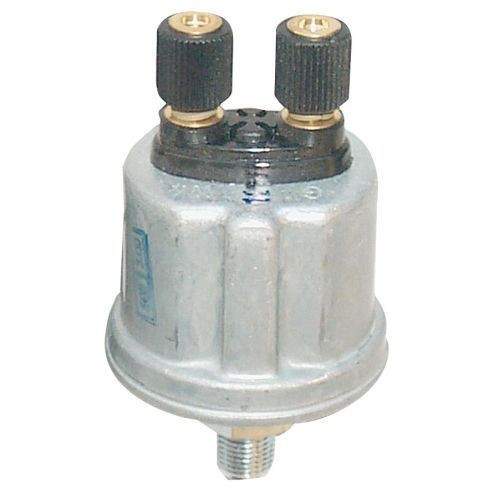

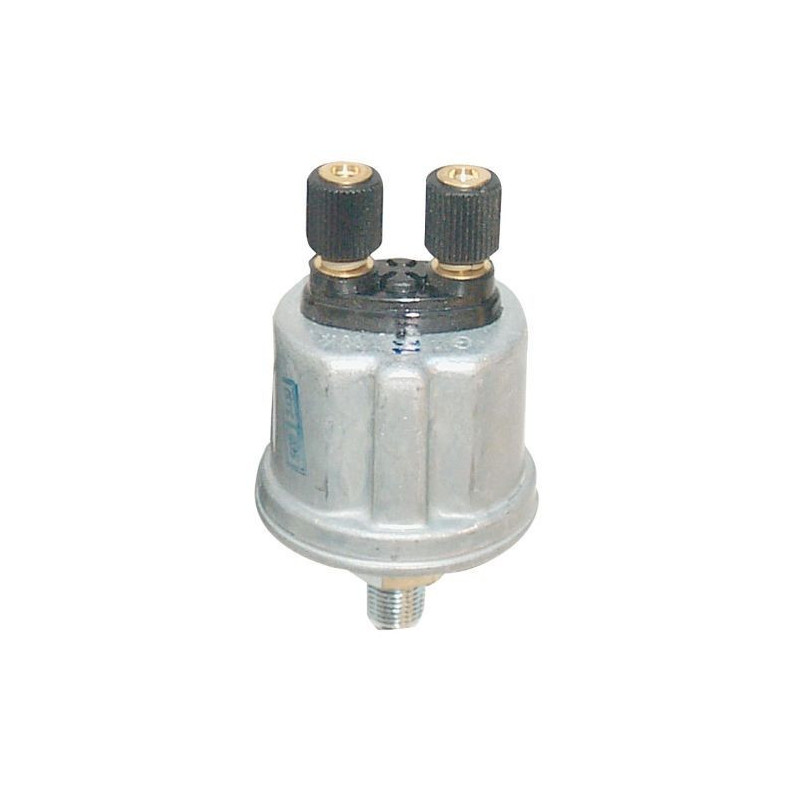

The VDO oil pressure sensor with an M18×150 connection is used to measure oil pressure. It operates in the range of 0 to 10 bar and outputs a resistive signal intended for a compatible gauge.

The 10 to 184 ? outlet must match the electrical specifications of the gauge or indicator being used. An identical display range alone is not sufficient to guarantee compatibility. The 0.50 bar ± 0.20 bar alarm contact provides a function separate from the measurement, designed to control a compatible warning light.

Technical Specifications

Brand: VDO
Manufacturer Part Number: 360-081-030-074C
Type: Oil pressure sensor
Measurement range: 0 to 10 bar
Thread: M18×150

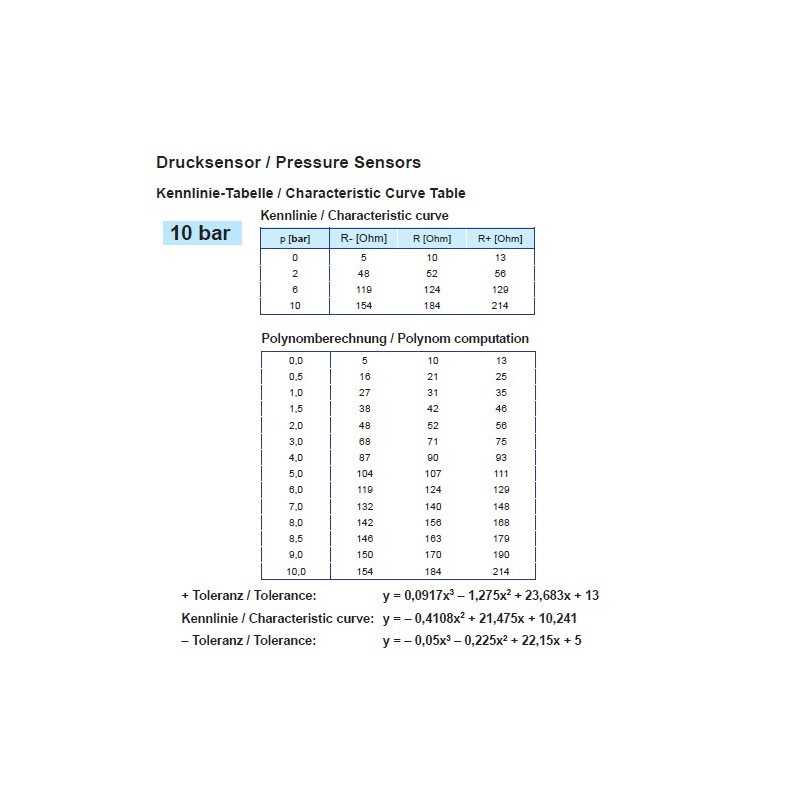

Resistive signal: 10 to 184 ?
Operating voltage: 6 to 24 V DC
Contact d’alerte : 0.50 bar ± 0.20 bar

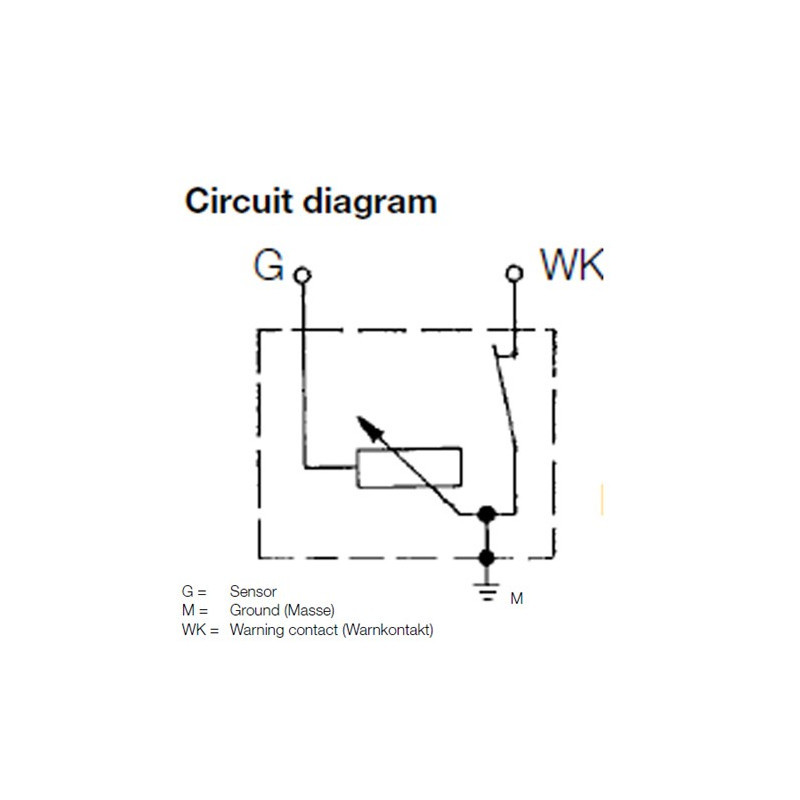

Type of grounding: Grounded through the probe body
Measurement connection: M4 plastic knurled nut
Alarm contact connection: M4 plastic knurled nut

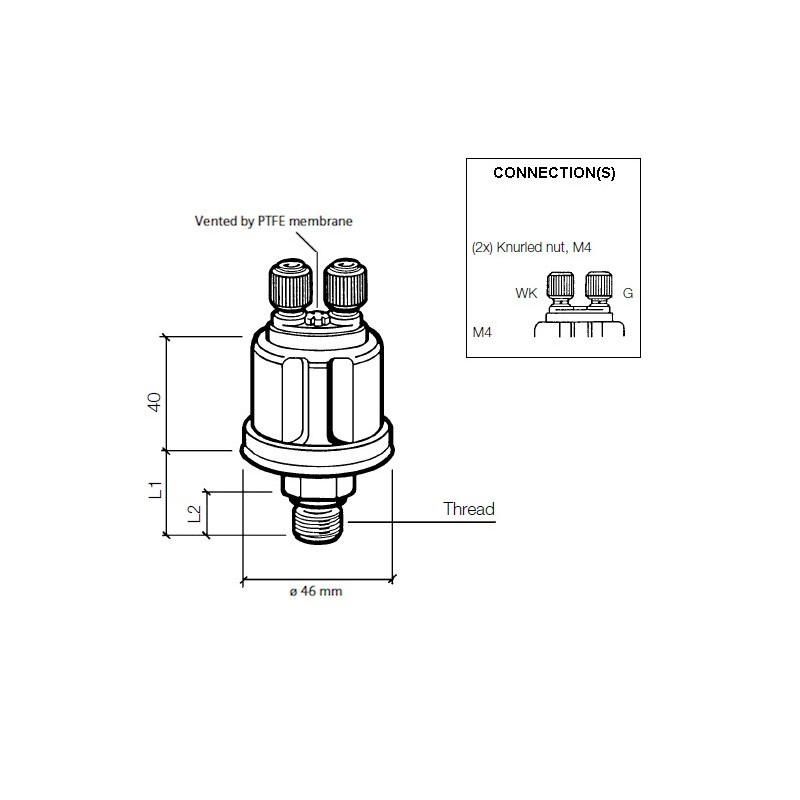

Threaded length L2: 12 mm
Thread and hex length L1: 20.5 mm
Contact operation: Closes when pressure drops

Compatibility and Mounting

Check the M18×150 thread, the resistance curve, and the connection before mounting. The body must maintain electrical continuity with the circuit ground.
