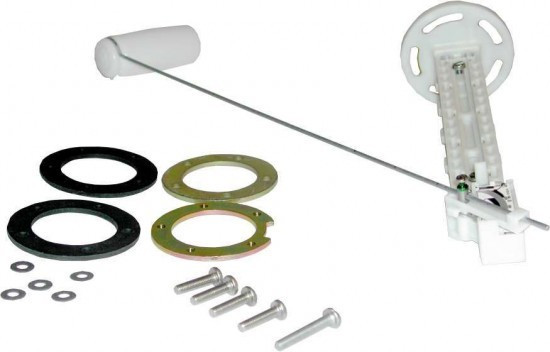

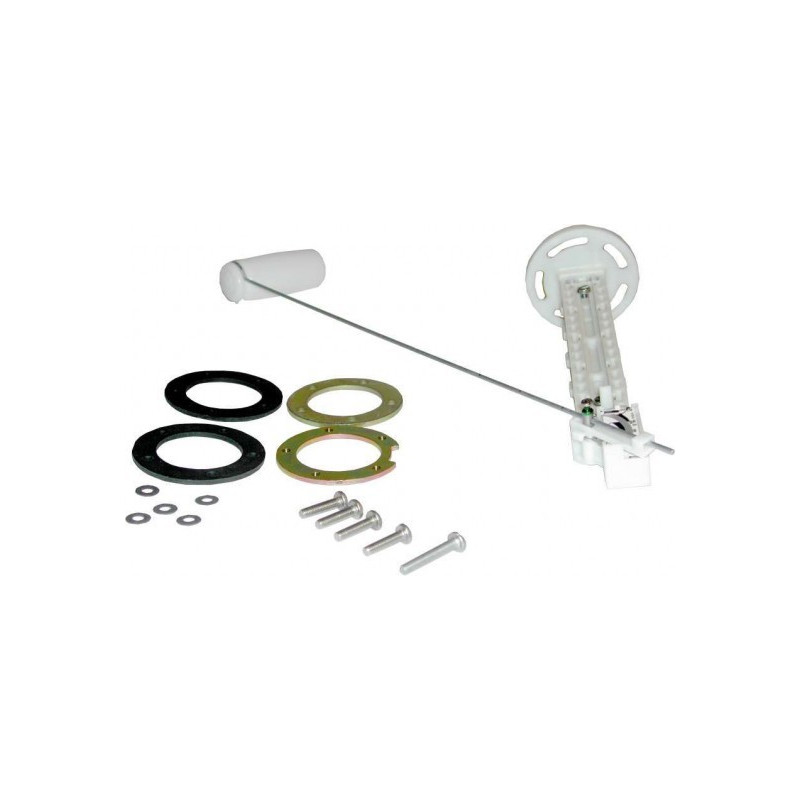

VDO Fuel Dipstick with Adjustable Handle, 150–600 mm, 3–180 ?
Reference:
V-226801015001
Supplier Ref.:
226-801-015-001G
The VDO fuel dipstick with an adjustable handle measures the fuel level in the tank. It transmits a resistance of 3 ? ± 1.5 ? when empty and 180 ? when full to a compatible indicator.
The adjustable arm allows for adaptation to tank depths ranging from 150 to 600 mm.
Technical Specifications
- Brand: VDO
- Manufacturer Part Number: 226-801-015-001G
- Type: Adjustable-handle level sensor
- Permissible tank depth: 150 to 600 mm
- Mounting: 5-hole SAE flange, 54 mm mounting circle
- Open-circuit resistance: 3 ? ± 1.5 ?
- Full-scale resistance: 180 ?
- Operating voltage: 6 to 24 V DC
- Alarm contact: None
Compatibility and Mounting
Select an indicator compatible with the resistance values and their direction of change. Check the flange mounting and the available depth in the tank.
-
Sensor typeLever Gage
-
Length in mm150
